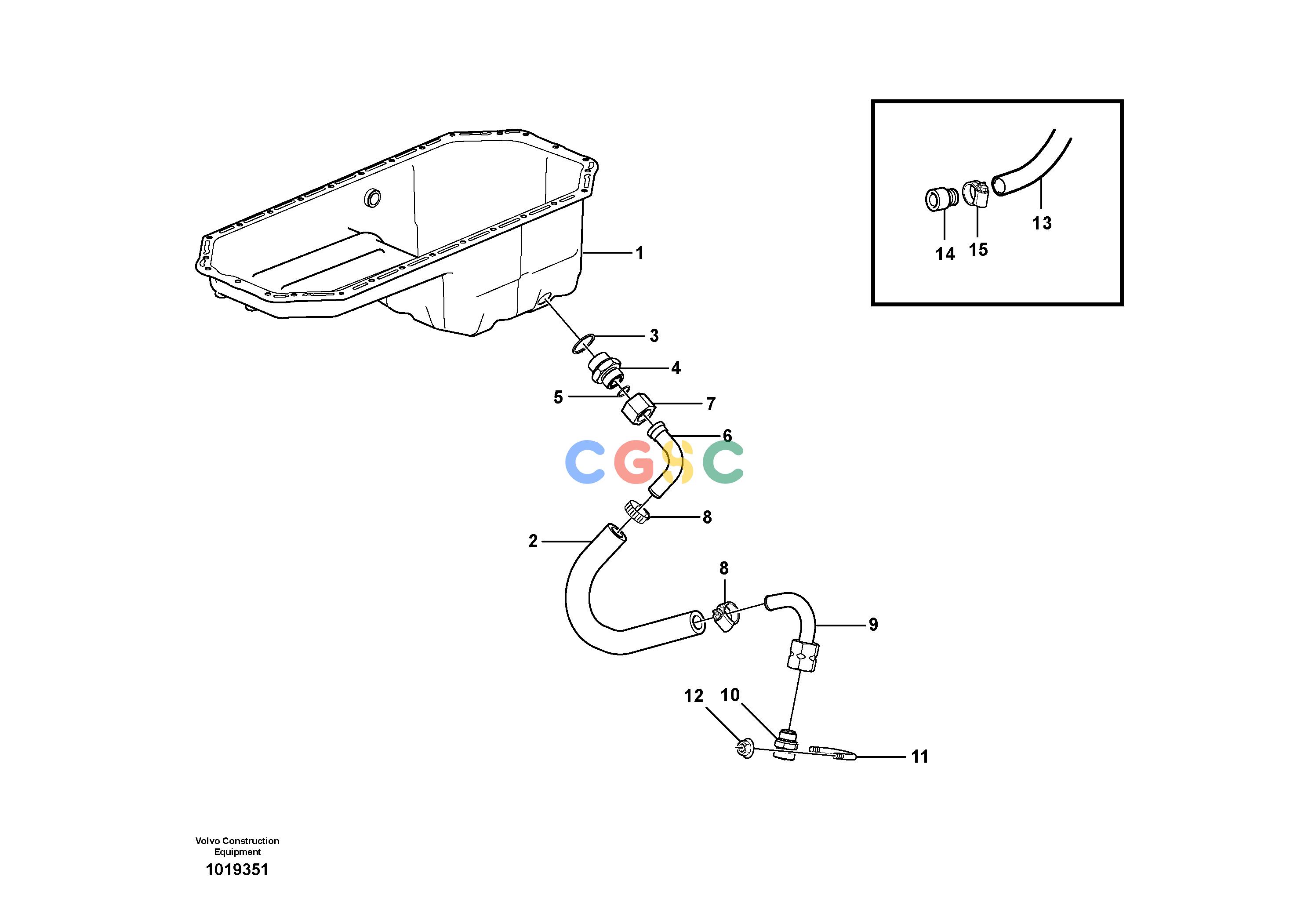

沃尔沃零件查询L60E Drain line, oil sumpNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
906 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Oil Pan
|
|
| 2. |
VOE11000285
|
[REQ] |
Rubber hose
|
L = 430 MM
|
| 3. |
VOE13947630
|
[1] |
Gasket
|
|
| 4. |
VOE11163064
|
[1] |
Nipple
|
|
| 5. |
VOE990740
|
[1] |
O-ring
|
|
| 6. |
VOE11410190
|
[1] |
Drain tube
|
|
| 7. |
VOE13933877
|
[1] |
Nut
|
|
| 8. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 9. |
VOE11173508
|
[1] |
Drain tube
|
|
| 10. |
VOE11054692
|
[1] |
Valve
|
|
| 11. |
VOE11130269
|
[1] |
Clamp
|
|
| 12. |
VOE948645
|
[2] |
Flange lock nut
|
|
| 13. |
VOE11154125
|
[1] |
Hose
|
|
| 14. |
VOE16027695
|
[1] |
Nipple
|
|
| 15. |
VOE13943474
|
[1] |
Hose clamp
|
|
