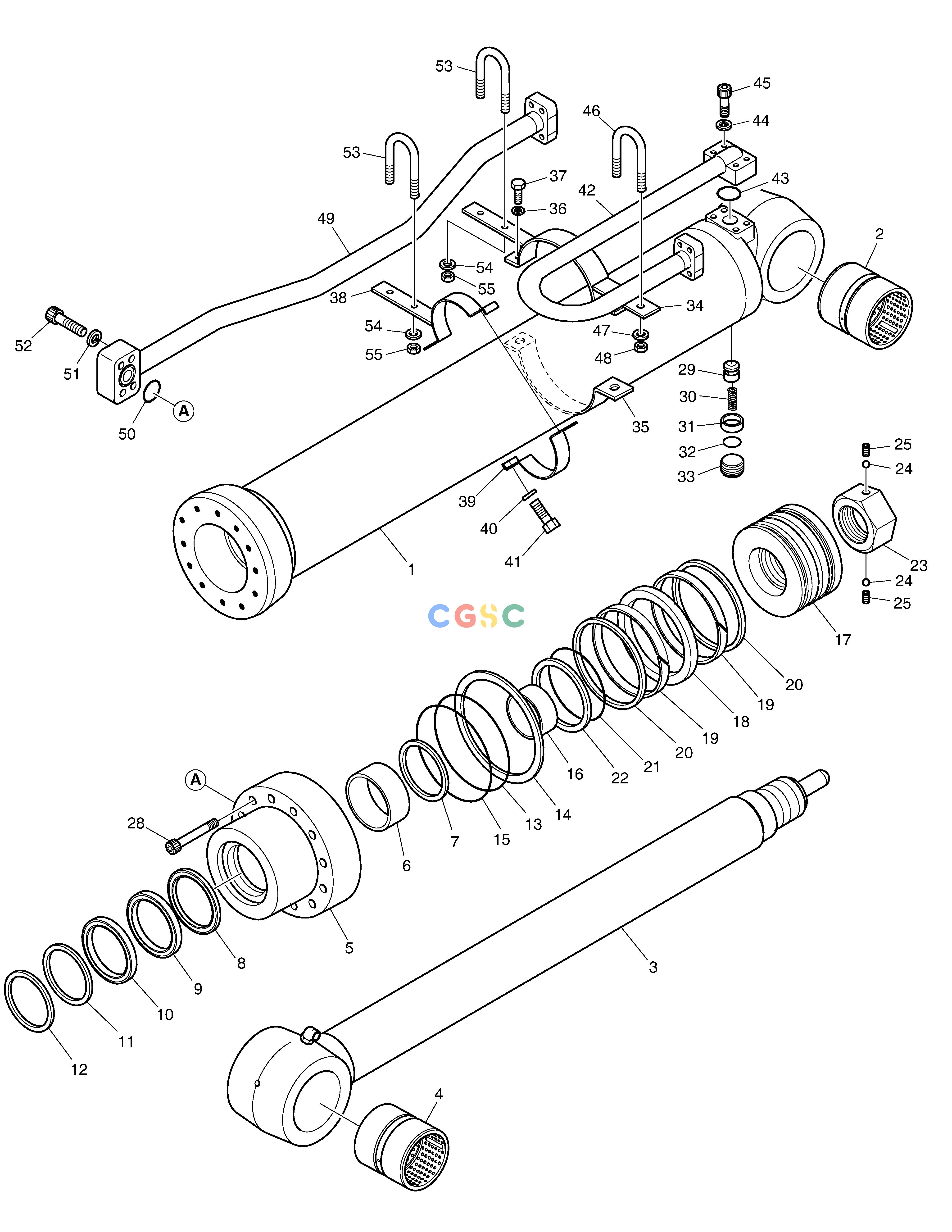

斗山零件查询ARM CYLINDER DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
343 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01202
|
[1] |
|
|
| -. |
400305-00020C
|
[1] |
|
|
| 1. |
420402-00252A
|
[1] |
|
|
| 10. |
K9001962
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00115
|
[1] |
WIPER;DUST
|
|
| 12. |
111104-00495
|
[1] |
|
|
| 13. |
S8011801
|
[1] |
O-RING
|
|
| 14. |
K9001963
|
[1] |
RING;BACK UP
|
|
| 15. |
2180-1216D153
|
[1] |
O-RING
|
|
| 16. |
K9001964
|
[1] |
RING;CUSHION
|
|
| 17. |
130602-00832
|
[1] |
|
|
| 18. |
NA01081
|
[1] |
|
|
| 19. |
115-00113
|
[2] |
RING;WEAR
|
|
| 2. |
131004-00121
|
[1] |
|
|
| 20. |
115-00111
|
[2] |
RING;SLYD
|
|
| 21. |
S8011201
|
[1] |
O-RING
|
|
| 22. |
NA00940
|
[2] |
BAGUE,SAUVEGARDER
|
|
| 23. |
120312-00488
|
[1] |
|
|
| 24. |
110202-00014
|
[2] |
|
|
| 25. |
120706-00009
|
[2] |
|
|
| 28. |
S2234471
|
[12] |
BOLT;HEX SOCKET
|
|
| 29. |
420-00132
|
[1] |
VALVE;CHECK
|
|
| 3. |
400337-00372A
|
[1] |
|
|
| 30. |
129-00071
|
[1] |
SPRING
|
|
| 31. |
1.195-00022
|
[1] |
SUPPORT;SPRING
|
|
| 32. |
S8000141
|
[1] |
O-RING
|
|
| 33. |
430221-00136
|
[1] |
PLUG
|
|
| 34. |
K9001966
|
[1] |
PIPE BAND ASS'Y-H
|
|
| 35. |
124-00128
|
[1] |
BAND;HEX
|
|
| 36. |
S5100703
|
[2] |
WASHER;SPRING
|
|
| 37. |
S0560563
|
[2] |
BOLT
|
|
| 38. |
124-00133
|
[1] |
PIPE BAND ASS'Y-B
|
|
| 39. |
124-00128
|
[1] |
BAND;HEX
|
|
| 4. |
131004-00121
|
[1] |
|
|
| 40. |
S5100703
|
[2] |
WASHER;SPRING
|
|
| 41. |
S0560563
|
[2] |
BOLT
|
|
| 42. |
420210-01007
|
[1] |
|
|
| 43. |
S8000401
|
[1] |
O-RING
|
|
| 44. |
S5100803
|
[4] |
WASHER;SPRING
|
|
| 45. |
S2219071
|
[4] |
BOLT;SOCKET
|
|
| 46. |
120-00178
|
[1] |
BOLT;U
|
|
| 47. |
S5100703
|
[2] |
WASHER;SPRING
|
|
| 48. |
S4010733
|
[2] |
NUT
|
|
| 49. |
420210-01008
|
[1] |
|
|
| 5. |
110508-17368
|
[1] |
|
|
| 50. |
S8000401
|
[1] |
O-RING
|
|
| 51. |
S5100803
|
[4] |
WASHER;SPRING
|
|
| 52. |
S2219071
|
[4] |
BOLT;SOCKET
|
|
| 53. |
120-00178
|
[2] |
BOLT;U
|
|
| 54. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 55. |
S4010733
|
[4] |
NUT
|
|
| 6. |
131005-00071
|
[1] |
|
|
| 7. |
115-00108
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001960
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001961
|
[1] |
PACKING;U
|
|
