纽荷兰零件查询(DC180LGP) - CRAWLER DOZER (2/01-) (1.266[11]) - REAR TRANSMISSION - VERSION (02-03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
705 次

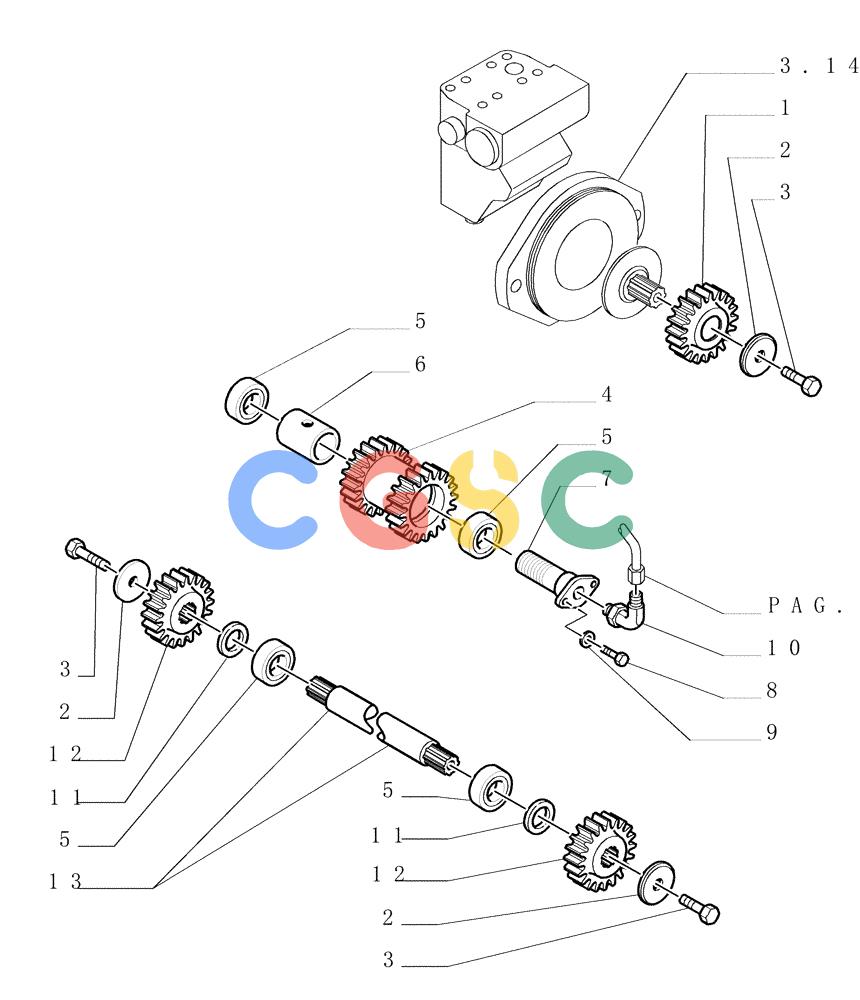

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040664 | [1] | GEAR | LEC15T |
| 2. | 76040667 | [3] | DISC | LEC |
| 3. | 11127531 | [3] | BOLT,Hex, M16 x 35, 10.9 | LEC Superseded by part number: 86529976 |
| 4. | 76040615 | [1] | GEAR | LEC22T, Double |
| 5. | 26797990 | [4] | ROLLER BEARING,50mm ID x 90mm OD x 20mm W | LEC50X90X20 Superseded by part number: 87745456 |
| 6. | 76040635 | [1] | SPACER | LEC |
| 7. | 76040636 | [1] | PIN | LEC |
| 8. | 11106231 | [2] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 9. | 12638631 | [2] | WASHER,10.6mm ID x 18mm OD x 2mm Thk | LEC Superseded by part number: 86625251 |
| 10. | 79067018 | [1] | 90 ELBOW | LECDA 10 a 90° |
| 11. | 24976420 | [2] | RING | LEC50 |
| 12. | 76069775 | [2] | GEAR | LEC21T, Steering |
| 13. | 76040620 | [1] | SHAFT | LEC |
