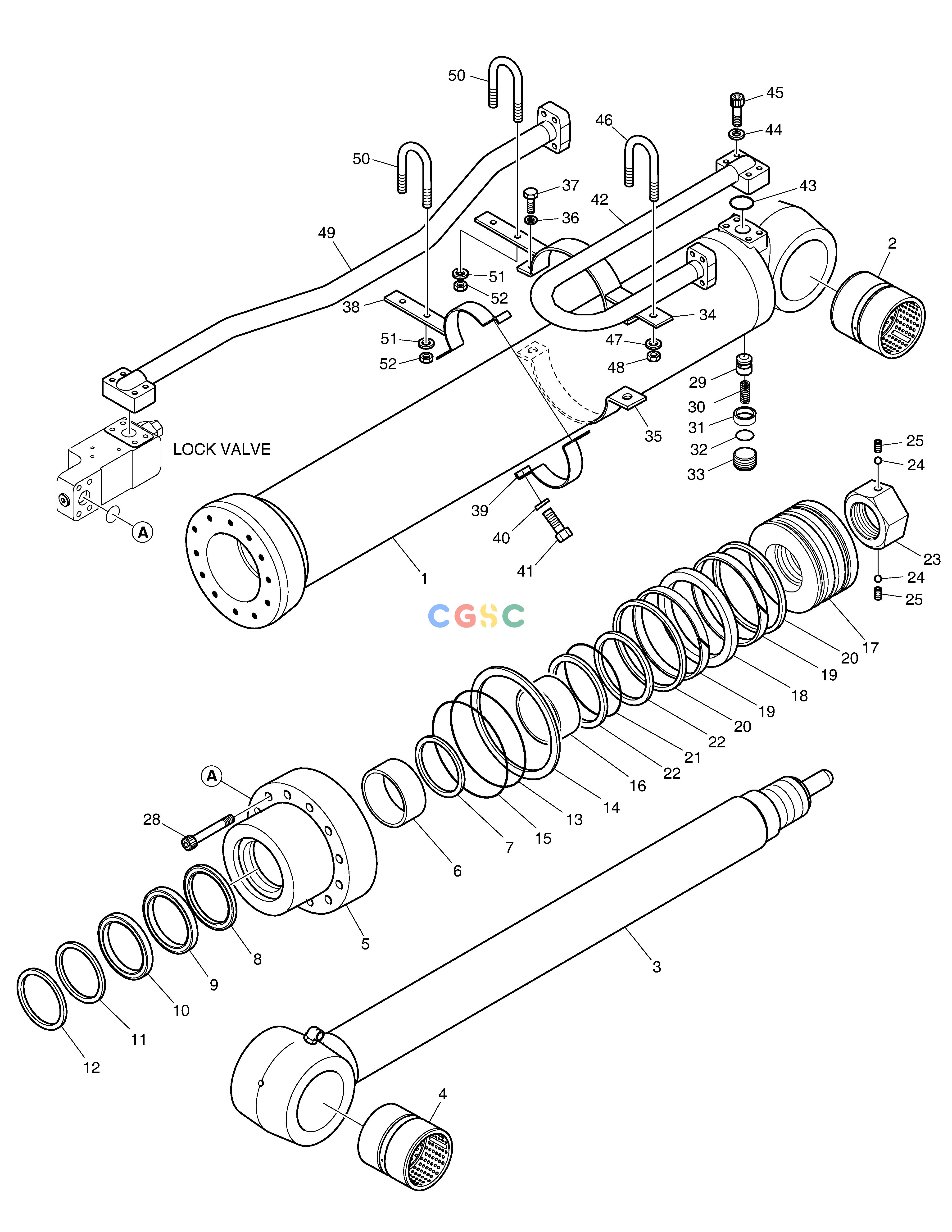

斗山零件查询ARM CYLINDER-LOCK VALVE DX490LC-5(S/N:10001~10011) Doosan parts catalog online

广数供应链运营团队, 14 02月, 2025，浏览： 353 次

Pos.	Part No	Qty	Parts name
.	401107-01202	[1]
-.	400305-00021C	[1]
1.	420402-00252A	[1]
10.	K9001962	[1]	RING;BACK UP
11.	115-00115	[1]	WIPER;DUST
12.	111104-00495	[1]
13.	S8011801	[1]	O-RING
14.	K9001963	[1]	RING;BACK UP
15.	2180-1216D153	[1]	O-RING
16.	K9001964	[1]	RING;CUSHION
17.	130602-00832	[1]
18.	NA01081	[1]
19.	115-00113	[2]	RING;WEAR
2.	131004-00121	[1]
20.	115-00111	[2]	RING;SLYD
21.	S8011201	[1]	O-RING
22.	NA00940	[2]	BAGUE,SAUVEGARDER
23.	120312-00488	[1]
24.	110202-00014	[2]
25.	120706-00009	[2]
28.	S2234471	[12]	BOLT;HEX SOCKET
29.	420-00132	[1]	VALVE;CHECK
3.	400337-00372A	[1]
30.	129-00071	[1]	SPRING
31.	1.195-00022	[1]	SUPPORT;SPRING
32.	S8000141	[1]	O-RING
33.	430221-00136	[1]	PLUG
34.	K9001966	[1]	PIPE BAND ASS'Y-H
35.	124-00128	[1]	BAND;HEX
36.	S5100703	[2]	WASHER;SPRING
37.	S0560563	[2]	BOLT
38.	124-00133	[1]	PIPE BAND ASS'Y-B
39.	124-00128	[1]	BAND;HEX
4.	131004-00121	[1]
40.	S5100703	[2]	WASHER;SPRING
41.	S0560563	[2]	BOLT
42.	420210-01007	[1]
43.	S8000401	[1]	O-RING
44.	S5100803	[4]	WASHER;SPRING
45.	S2219071	[4]	BOLT;SOCKET
46.	120-00178	[1]	BOLT;U
47.	S5100703	[2]	WASHER;SPRING
48.	S4010733	[2]	NUT
49.	420210-01026	[1]
5.	110508-17368	[1]
50.	120-00178	[2]	BOLT;U
51.	S5100703	[4]	WASHER;SPRING
52.	S4010733	[4]	NUT
6.	131005-00071	[1]
7.	115-00108	[1]	RING;RETAINING
8.	K9001960	[1]	SEAL;BUFFER
9.	K9001961	[1]	PACKING;U
