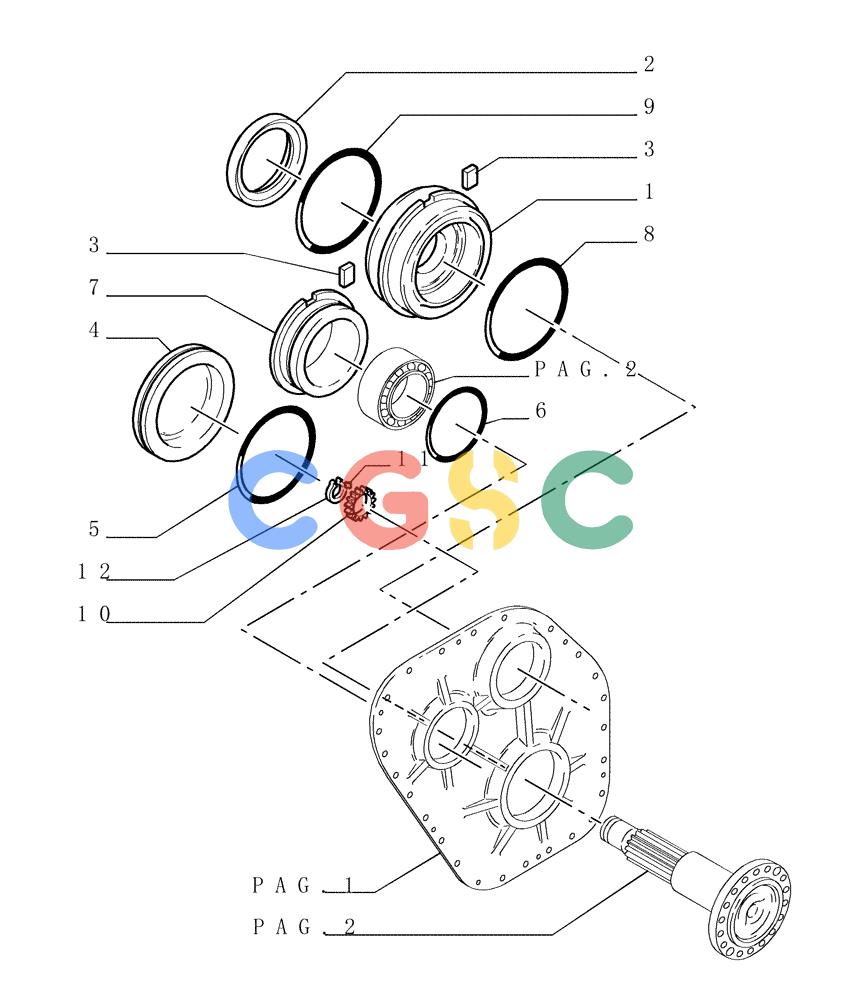

纽荷兰零件查询(DC180LGP) - CRAWLER DOZER (2/01-) (1.277[03]) - FINAL DRIVE - COMPONENTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
858 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040603 | [2] | BEARING HOUSING | LEC- BEARING |
| 2. | 76040608 | [4] | SEAL,70mm ID x 90mm OD x 10mm Thk | LEC |
| 3. | 76040660 | [4] | LOCKING PLATE | LEC |
| 4. | 76040671 | [2] | COVER | LEC |
| 5. | 14467981 | [2] | O-RING,0.139" Thk x 6.734" ID, -261, Cl 7, 75 Duro | LEC(M171 ID x 3.53 Thk) Superseded by part number: 70923596 |
| 6. | 14467381 | [2] | GASKET | LEC3,53X142,50 Superseded by part number: 17292781 |
| 7. | 76040640 | [2] | BEARING HOUSING | LEC |
| 8. | 14468181 | [2] | O-RING,0.139" Thk x 7.234" ID, -263, Cl 7, 75 Duro | LEC(M183.7 ID x 3.53 Thk) Superseded by part number: 70924927 |
| 9. | 14468281 | [2] | O-RING,190.1mm ID x 7.762" OD x 3.53mm | LEC(M190.1 ID x 3.53 Thk) |
| 10. | 76066308 | [2] | RING NUT | LEC- IN ALTERNATIVE Superseded by part number: 76009240 |
| 10. | 76009239 | [2] | BEARING LOCK NUT | LEC Superseded by part number: 76009240 |
| 11. | 76009260 | [4] | PLATE | LEC |
| 12. | 11071376 | [2] | SNAP RING,M90, Ext | LEC Superseded by part number: 300639 |
