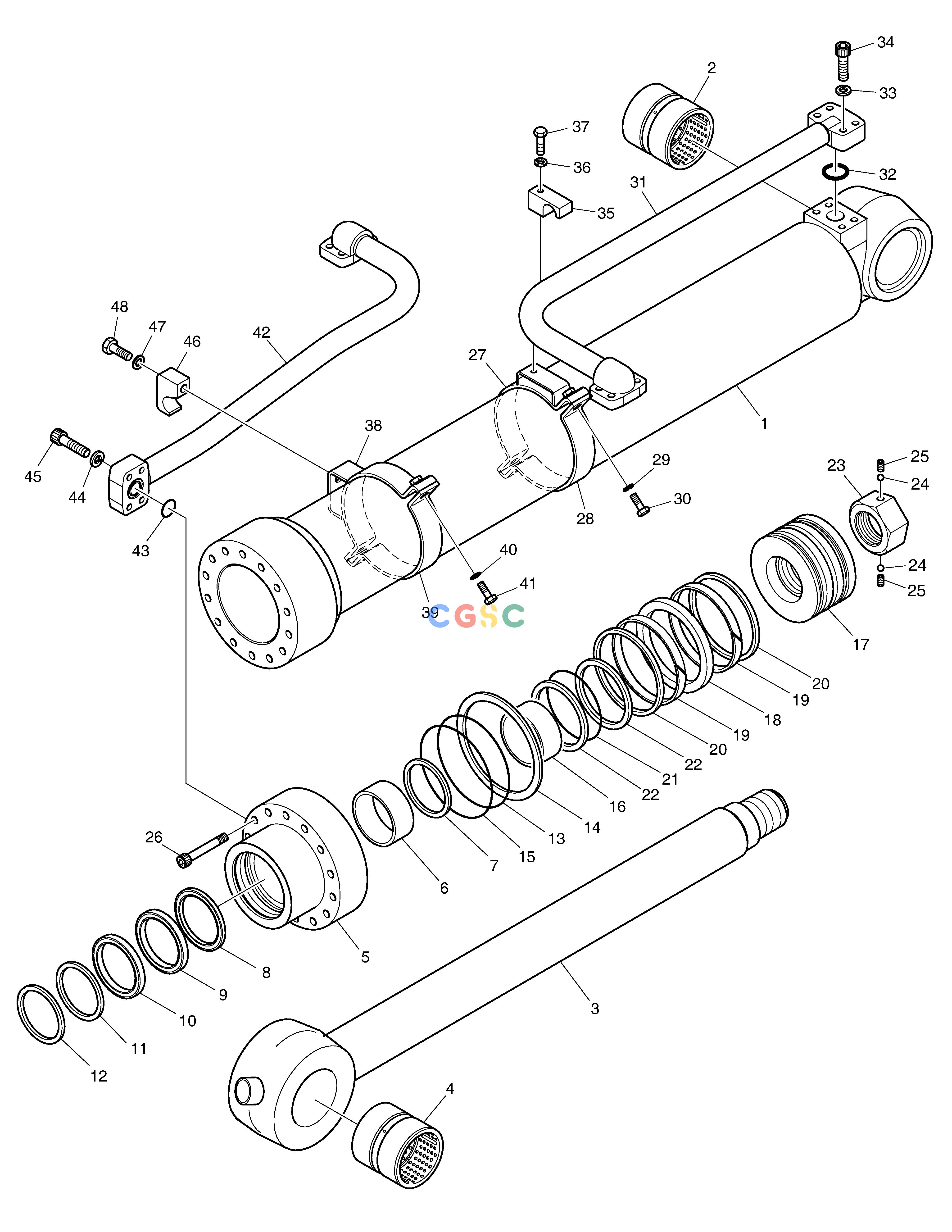

斗山零件查询BUCKET CYLINDER - ARM 2.9m DX490LC-5(S/N:10001~10011) Doosan parts catalog online_斗山Doosan_工程机械

斗山零件查询BUCKET CYLINDER - ARM 2.9m DX490LC-5(S/N:10001~10011) Doosan parts catalog online

广数供应链运营团队, 14 02月, 2025，浏览： 446 次

Pos.	Part No	Qty	Parts name
.	401107-01384	[1]
-.	400310-00136B	[1]
1.	420402-00254A	[1]
10.	K9001952	[1]	RING;BACK UP
11.	115-00098	[1]	WIPER;DUST
12.	115-00091	[1]	RING;RETAINING
13.	S8011601	[1]	O-RING
14.	K9001953	[1]	RING;BACK UP
15.	2180-1216D150	[1]	O-RING
16.	K9001954	[1]	RING;CUSHION
17.	130602-00188	[1]
18.	K9002277	[1]	SEAL;SLIPPER
19.	115-00112	[2]	RING;WEAR
2.	131004-00010B	[1]
20.	115-00110	[2]	RING;SLYD
21.	S8010901	[1]	O-RING
22.	K9001955	[2]	RING;BACK UP
23.	120312-00053A	[1]
24.	110202-00014	[2]
25.	120706-00009	[2]
26.	S2228261	[14]	BOLT;SOCKET
27.	110902-00038	[1]
28.	124-00129	[1]	BAND;PIPE
29.	S5100703	[2]	WASHER;SPRING
3.	400337-00373A	[1]
30.	S0560563	[2]	BOLT
31.	420210-01016	[1]
32.	S8000401	[1]	O-RING
33.	S5100803	[4]	WASHER;SPRING
34.	S2219071	[4]	BOLT;SOCKET
35.	120203-00071	[1]
36.	S5102903	[1]	WASHER
37.	S0565753	[1]	BOLT M16X2.0X75
38.	110902-00039	[1]
39.	124-00129	[1]	BAND;PIPE
4.	131004-00010B	[1]
40.	S5100703	[2]	WASHER;SPRING
41.	S0560563	[2]	BOLT
42.	420210-01017	[1]
43.	S8000401	[1]	O-RING
44.	S5100803	[4]	WASHER;SPRING
45.	S2219071	[4]	BOLT;SOCKET
46.	120203-00071	[1]
47.	S5102903	[1]	WASHER
48.	S0565753	[1]	BOLT M16X2.0X75
5.	110508-09921	[1]
6.	110-01002	[1]	DD-BUSH
7.	115-00090	[1]	RING;RETAINING
8.	K9001950	[1]	SEAL;BUFFER
9.	K9001951	[1]	U-PACKING
