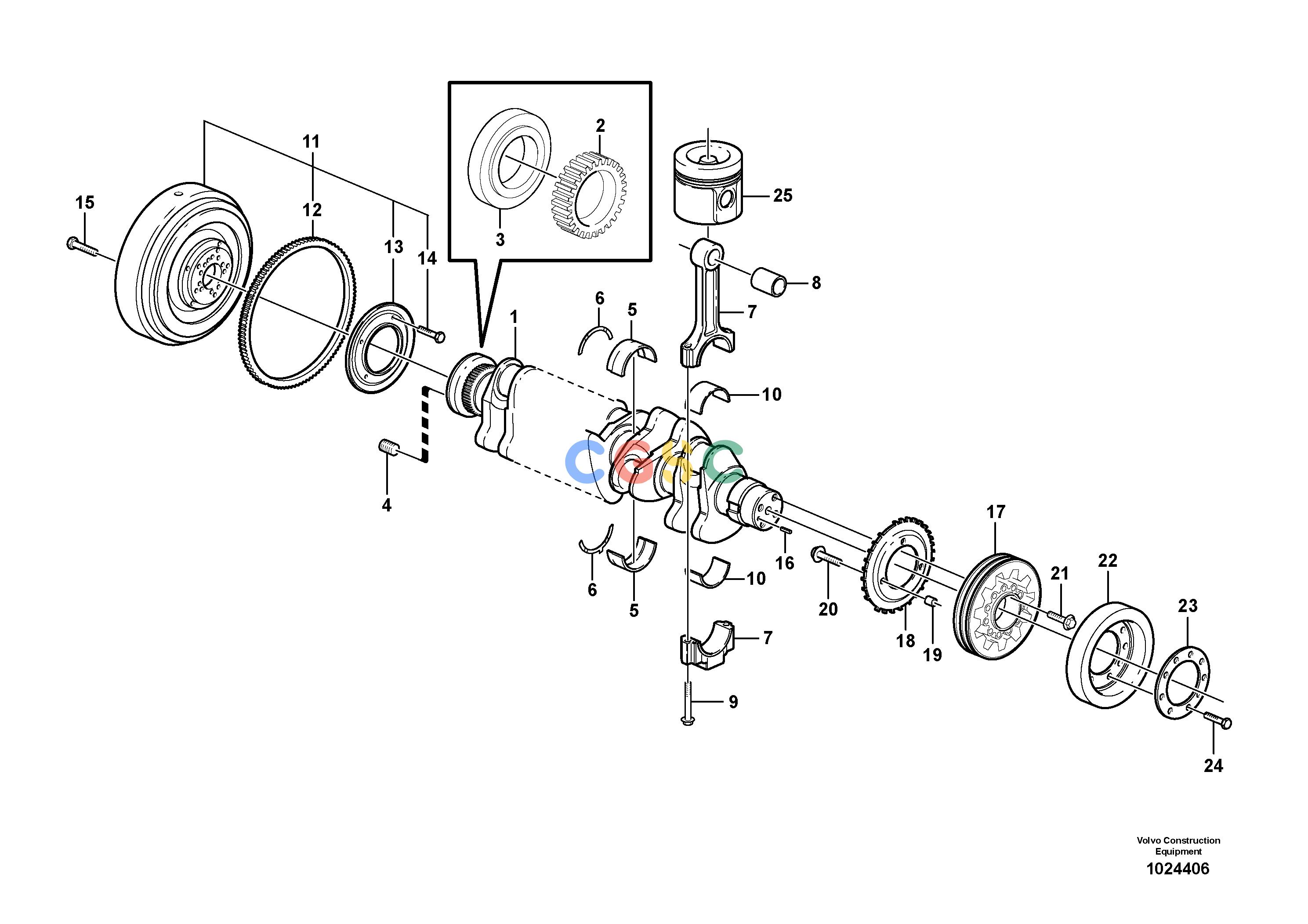

沃尔沃零件查询L60F Crankshaft and related partsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
744 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21351237
|
[1] |
Crankshaft
|
|
| 2. |
VOE21361072
|
[1] |
Gear
|
|
| 3. |
VOE20791429
|
[1] |
Flywheel companion flange
|
|
| 4. |
VOE20459144
|
[10] |
Insert
|
|
| 5. |
VOE22967564
|
[7] |
Main bearing
|
STD 84,00 MM
|
| 5. |
VOE22967569
|
[7] |
Main bearing
|
U SZ 83,75 MM
|
| 6. |
VOE20850116
|
[2] |
Thrust washer
|
STD 2,15 MM
|
| 6. |
VOE20850122
|
[2] |
Thrust washer
|
O SZ 2,35 MM
|
| 7. |
VOE20851091
|
[6] |
Connecting rod
|
|
| 8. |
VOE20799647
|
[6] |
Piston bushing
|
|
| 9. |
VOE20799587
|
[12] |
Flange screw
|
|
| 10. |
VOE20850096
|
[6] |
Big-end bearing kit
|
STD 63,00 MM
|
| 10. |
VOE20850097
|
[6] |
Big-end bearing kit
|
U SZ 62,75 MM
|
| 11. |
VOE20917910
|
[1] |
Flywheel
|
|
| 12. |
VOE20450830
|
[1] |
Gear
|
|
| 13. |
VOE20918003
|
[1] |
Ring
|
|
| 14. |
VOE20933839
|
[4] |
Screw
|
|
| 15. |
VOE20450835
|
[10] |
Screw
|
|
| 16. |
VOE20450628
|
[1] |
Pin
|
|
| 17. |
VOE20516985
|
[1] |
Pulley
|
|
| 18. |
VOE20841180
|
[1] |
Lock washer
|
|
| 18. |
VOE22361186
|
[1] |
Lock washer
|
ENG NO 10164071 -
|
| 19. |
VOE20450838
|
[1] |
Pin
|
|
| 20. |
VOE975108
|
[3] |
Flange screw
|
|
| 21. |
VOE20405724
|
[4] |
Screw
|
|
| 22. |
VOE21165424
|
[1] |
Vibration damper
|
|
| 23. |
VOE21022723
|
[1] |
Flange plate
|
ENG - 10779813
|
| 24. |
VOE996813
|
[9] |
Flange screw
|
M10X25
ENG - 10779813
|
| 24. |
VOE993357
|
[9] |
Flange screw
|
M10X20
ENG 10779814 -
|
| 25. |
|
[1] |
Piston
|
|
