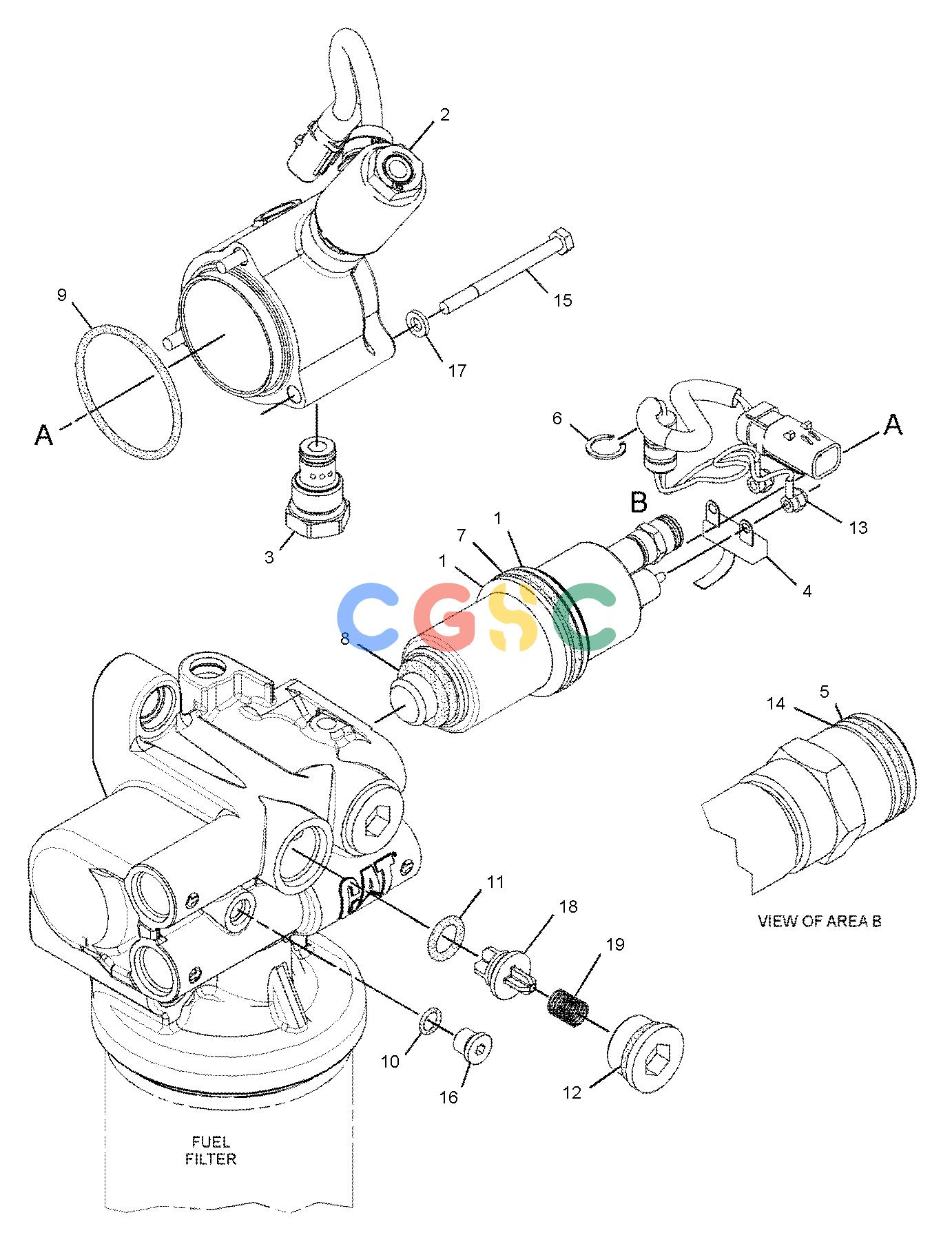

卡特零件查询（725C） 361-5084: PUMP GP-FUEL PRIMING
广数供应链运营团队, 14 02月, 2025，浏览：
788 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 173-1016J | [2] | RING-BACKUP | |
| 2. | 300-3556Y | [1] | VALVE GP-SOLENOID(FUEL PRIMING PUMP) | |
| 3. | 327-8044Y | [1] | VALVE GP-CHECK | |
| 4. | 364-8931 | [1] | FILTER-ELECTRONIC(FUEL PRIMING PUMP) | |
| 5. | 033-6033J | [1] | SEAL-O-RING | |
| 6. | 143-2545 | [1] | RING-RETAINING | |
| 7. | 188-7536J | [1] | SEAL | |
| 8. | 188-7541J | [1] | SEAL | |
| 9. | 205-9169J | [1] | SEAL-O-RING | |
| 10. | 214-7566 | [1] | SEAL-O-RING | |
| 11. | 236-6717 | [2] | SEAL-O-RING | |
| 12. | 238-5082 | [2] | SEAL-O-RING | |
| 13. | 6D-5801J | [2] | LOCKNUT(8-32-THD) | |
| 14. | 6V-6923J | [1] | RING-BACKUP | |
| 15. | 6V-8359M | [3] | BOLT(M6X1X70-MM) | |
| 16. | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 17. | 9X-8267 | [3] | WASHER(6.6X12X2-MM THK) | |
| 18. | 162-2220 | [2] | VALVE-CHECK | |
| 19. | 162-2222 | [2] | SPRING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 379-1545J | [1] | KIT-FUEL PUMP | |
| | | | (INCLUDES CONNECTOR AS & PUMP AS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
