纽荷兰零件查询(DC180LGP) - CRAWLER DOZER (2/01-) (0.550[02]) - ENGINE COOLING SYSTEM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
162 次

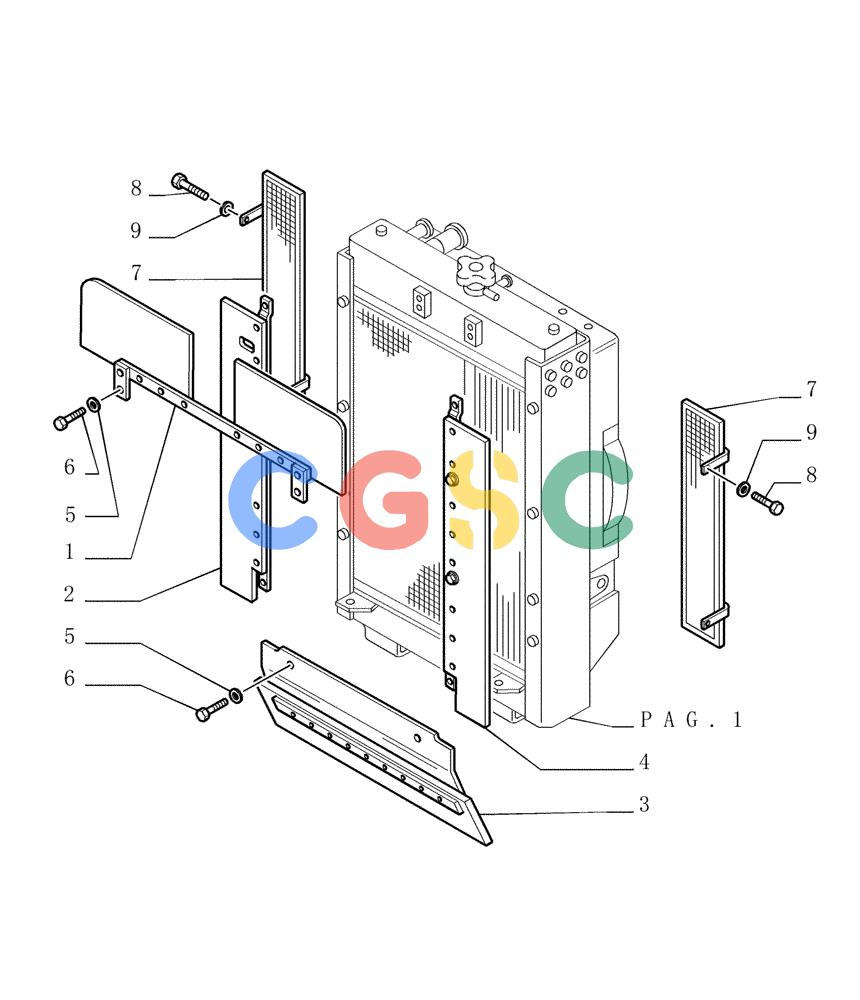

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76046707 | [1] | GUARD | LEC- UPPER |
| 2. | 76046705 | [1] | GUARD | LEC- SIDE RIGHT |
| 3. | 76046706 | [1] | GUARD | LEC- LOWER |
| 4. | 76046704 | [1] | GUARD | LEC- SIDE LEFT |
| 5. | 14496531 | [12] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 6. | 16043431 | [10] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 7. | 76066225 | [1] | RADIATOR GRILLE | LEC- LEFT |
| 7. | 76071318 | [1] | RADIATOR GRILLE | LEC- RIGHT |
| 8. | 11108231 | [4] | BOLT,Hex, M10 x 100mm, Cl 10.9 | LEC Superseded by part number: 43253 |
| 9. | 14496631 | [4] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
