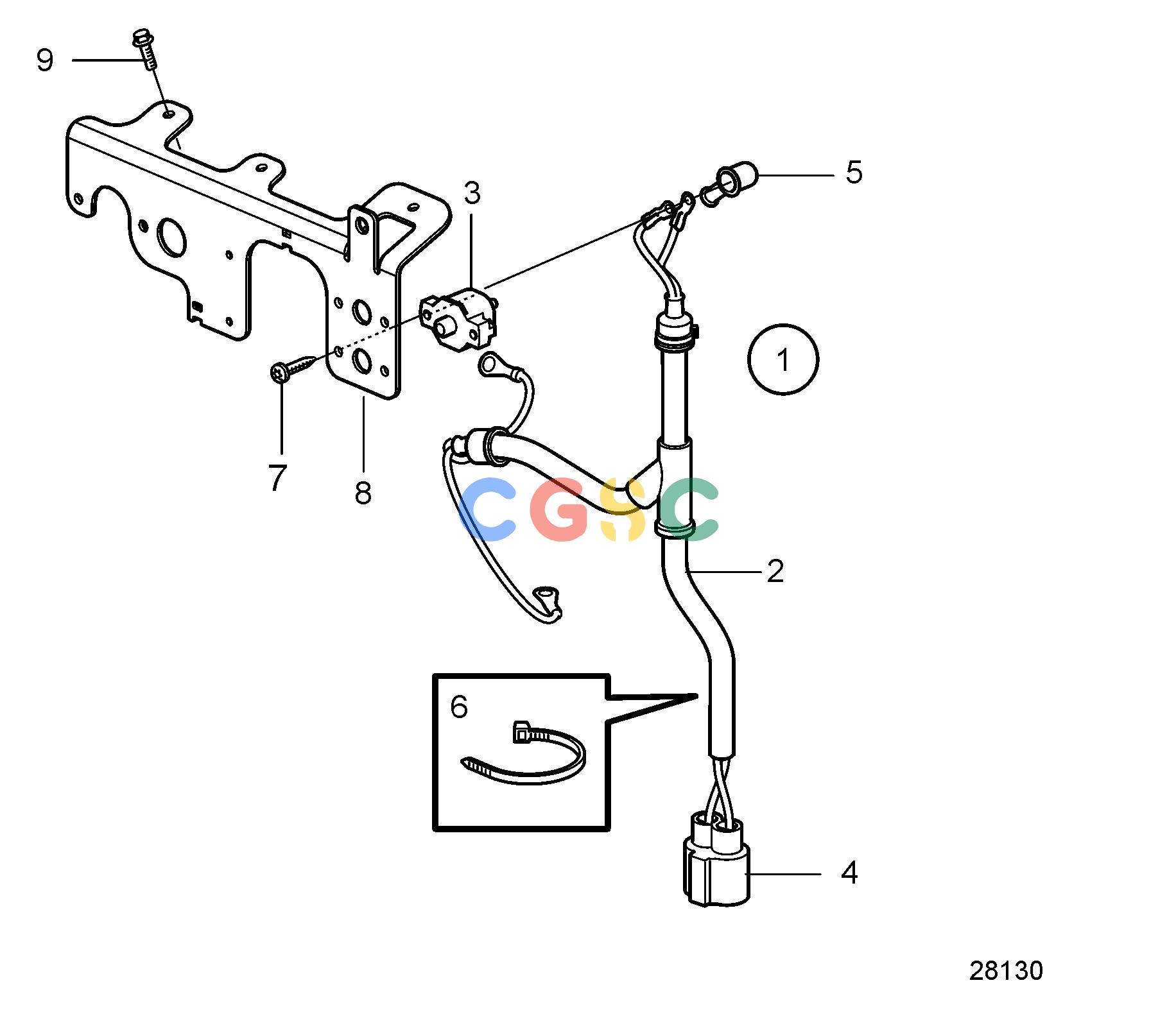

沃尔沃零件查询D3-110I-H; D3-140A-H; D3-140I-H; D3-150I-H; D3-170A-H; D3-170I-H; D3-200A-H; D3-200I-H; D3-220A-H; D3-220I-HElectrical SystemTrim SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
669 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21334583
|
[1] |
Wiring harness
|
|
| 2. |
21312722
|
[1] |
Wiring harness
|
|
| 3. |
3885972
|
[1] |
Automatic fuse
|
40AMP
|
| 4. |
3843097
|
[1] |
Connector
|
|
| 5. |
829200
|
[2] |
Protective cap
|
|
| 6. |
948211
|
[3] |
Cable tie
|
|
| 7. |
3853620
|
[2] |
Hexagon screw
|
|
| 8. |
21445385
|
[1] |
Bracket
|
|
| 9. |
946501
|
[3] |
Flange screw
|
M6x16mm
|
