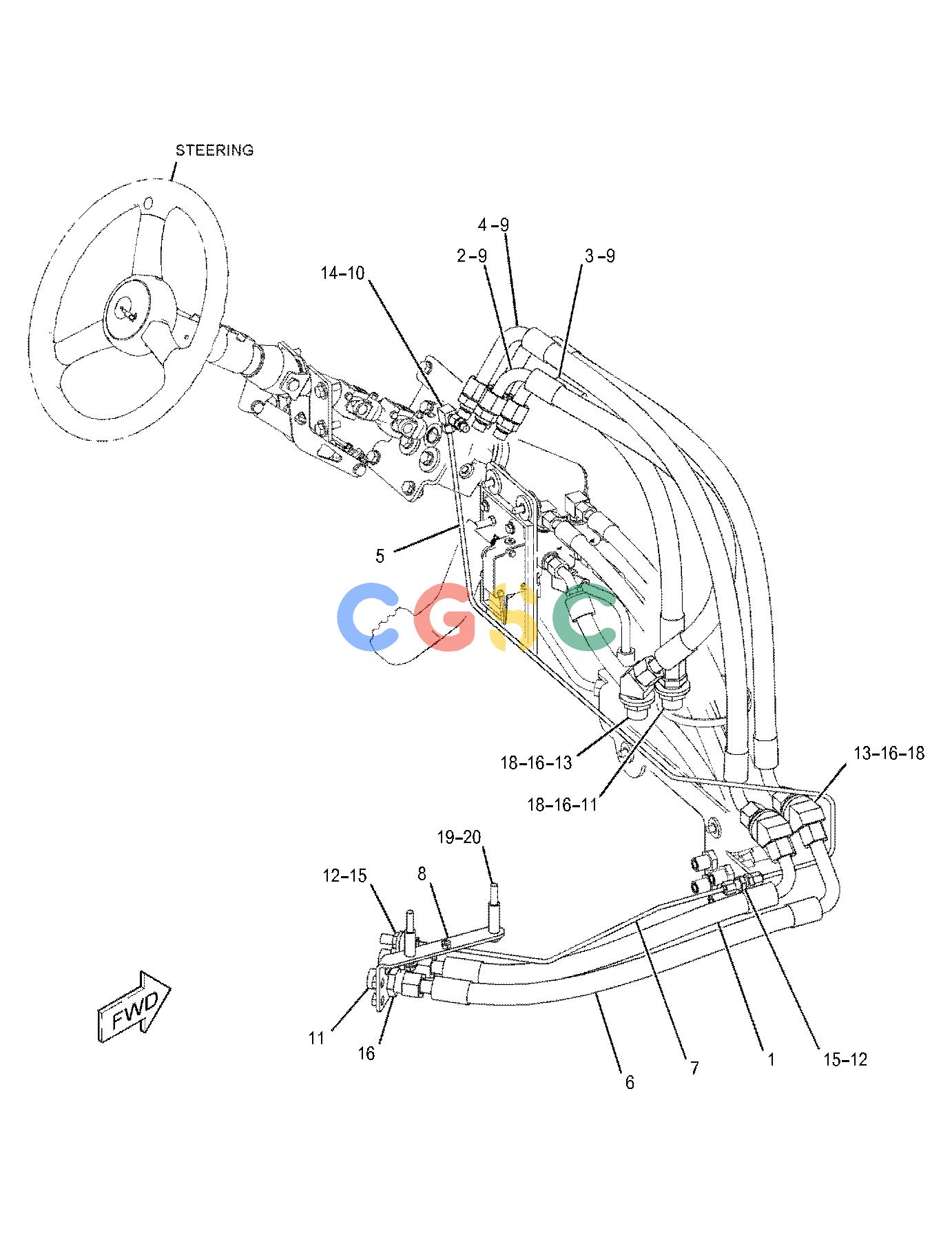

卡特零件查询（725C） 373-3617: LINES GP-STEERING
广数供应链运营团队, 14 02月, 2025，浏览：
889 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 290-3847I | [1] | HOSE AS | |
| 2. | 311-3669I | [1] | HOSE AS | |
| 3. | 342-2492I | [1] | HOSE AS | |
| 4. | 343-4575I | [2] | HOSE AS | |
| 5. | 373-3671 | [1] | TUBE AS | |
| 6. | 436-2909I | [1] | HOSE AS | |
| 7. | 447-0956 | [1] | TUBE AS | |
| 8. | 515-0518 | [1] | BRACKET AS | |
| 9. | 148-8324 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9874 | [1] | CONNECTOR(STRAIGHT) | |
| 10. | 148-8351 | [1] | ELBOW AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-9849 | [1] | ELBOW | |
| 11. | 148-8455 | [3] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 6V-8997 | [1] | UNION | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 12. | 150-4052 | [2] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [2] | SEAL-O-RING | |
| | 6V-8993 | [1] | UNION | |
| 13. | 165-4933 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8990 | [1] | ELBOW | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 14. | 166-4057 | [1] | CONNECTOR AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 9X-2067 | [1] | CONNECTOR | |
| 15. | 2P-1279 | [2] | LOCKNUT(9/16-18-THD) | |
| 16. | 2P-1293 | [6] | LOCKNUT(1-3/16-12-THD) | |
| 18. | 7X-0531 | [4] | WASHER-HARD(31X52.5X6-MM THK) | |
| 19. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-5005M | [2] | BOLT(M10X1.5X70-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
