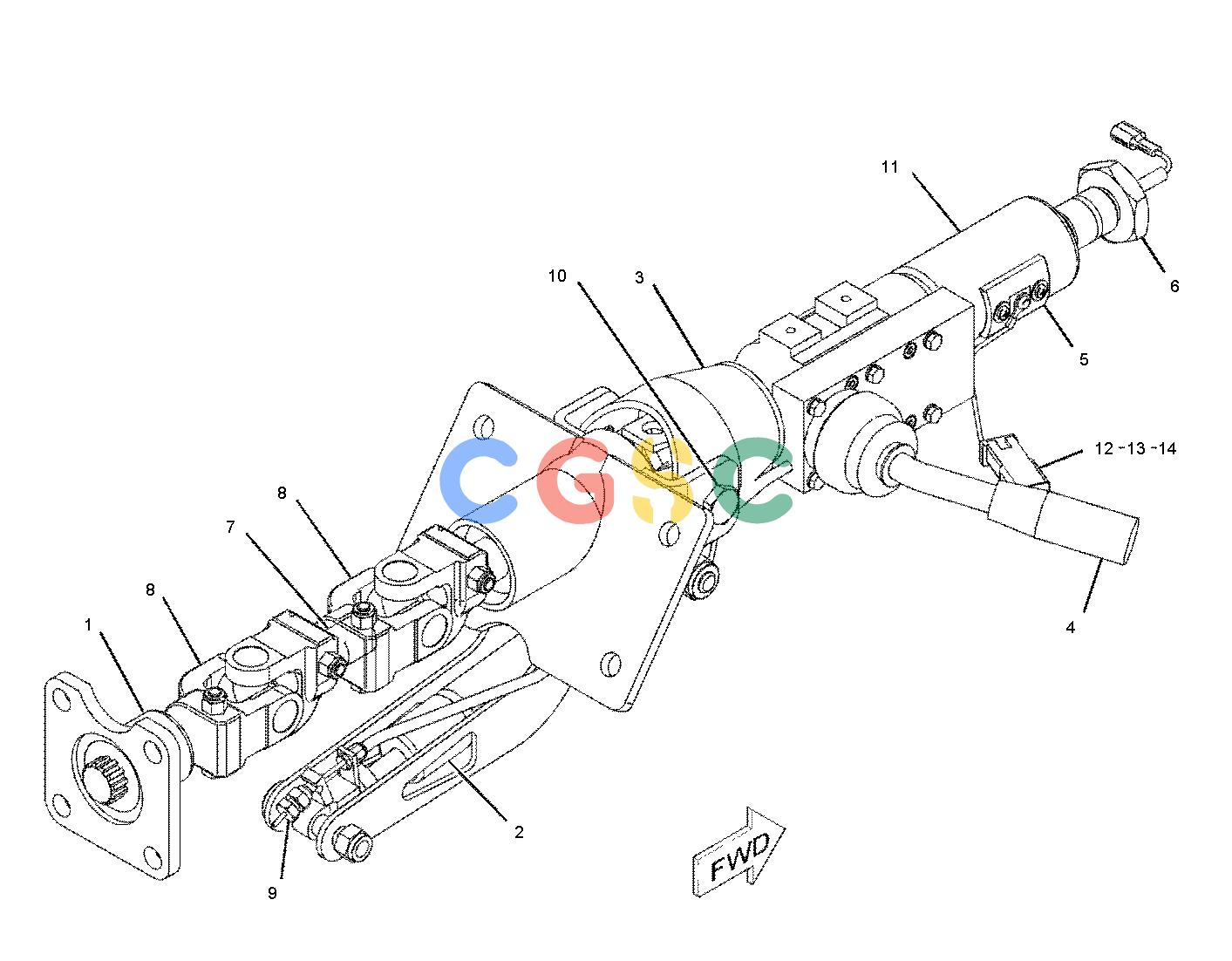

卡特零件查询（725C） 252-8050: STEERING COLUMN GP-ADJUSTABLE
广数供应链运营团队, 14 02月, 2025，浏览：
854 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 377-9641 | [1] | ADAPTER AS | |
| 2. | 332-7047 | [1] | KIT-GAS STRUT(STEERING COLUMN TILT) | |
| | | | (INCLUDES STRUT, BOLTS, NUTS & SPACERS) |
| 3. | 300-2960 | [1] | COLUMN AS(STEERING) | |
| 4. | 191-3700 | [1] | KIT-TILT LEVER(STEERING COLUMN) | |
| | 185-3886 | [1] | CLAMP AS-CABLE | |
| 5. | 332-6884 | [1] | KIT-CONTACT(HORN) | |
| | | | (INCLUDES HORN CONTACT AS & SCREWS) |
| 6. | 6V-8227M | [1] | NUT(M18X1.5-THD) | |
| 7. | 189-9370 | [1] | SHAFT | |
| 8. | 162-8551 | [2] | JOINT AS-UNIVERSAL | |
| | | | (EACH INCLUDES) |
| | 099-3649M | [2] | BOLT(M8X1.25X40-MM) | |
| | 131-3540M | [2] | LOCKNUT(M8X1.25-THD) | |
| 9. | 185-3886 | [1] | CLAMP AS-CABLE | |
| 10. | 321-6951 | [1] | KIT-PIVOT(STEERING COLUMN TILT) | |
| | | | (INCLUDES BUSHINGS & PINS) |
| 11. | 201-5121 | [1] | KIT-SHAFT(STEERING COLUMN) | |
| | | | (INCLUDES SHAFT, WASHERS, SPRING, PIN & HORN CONTACT) |
| 12. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 13. | 8T-8729 | [1] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 14. | 9G-3695 | [1] | PLUG-SEAL | |
| | M | | METRIC PART |
