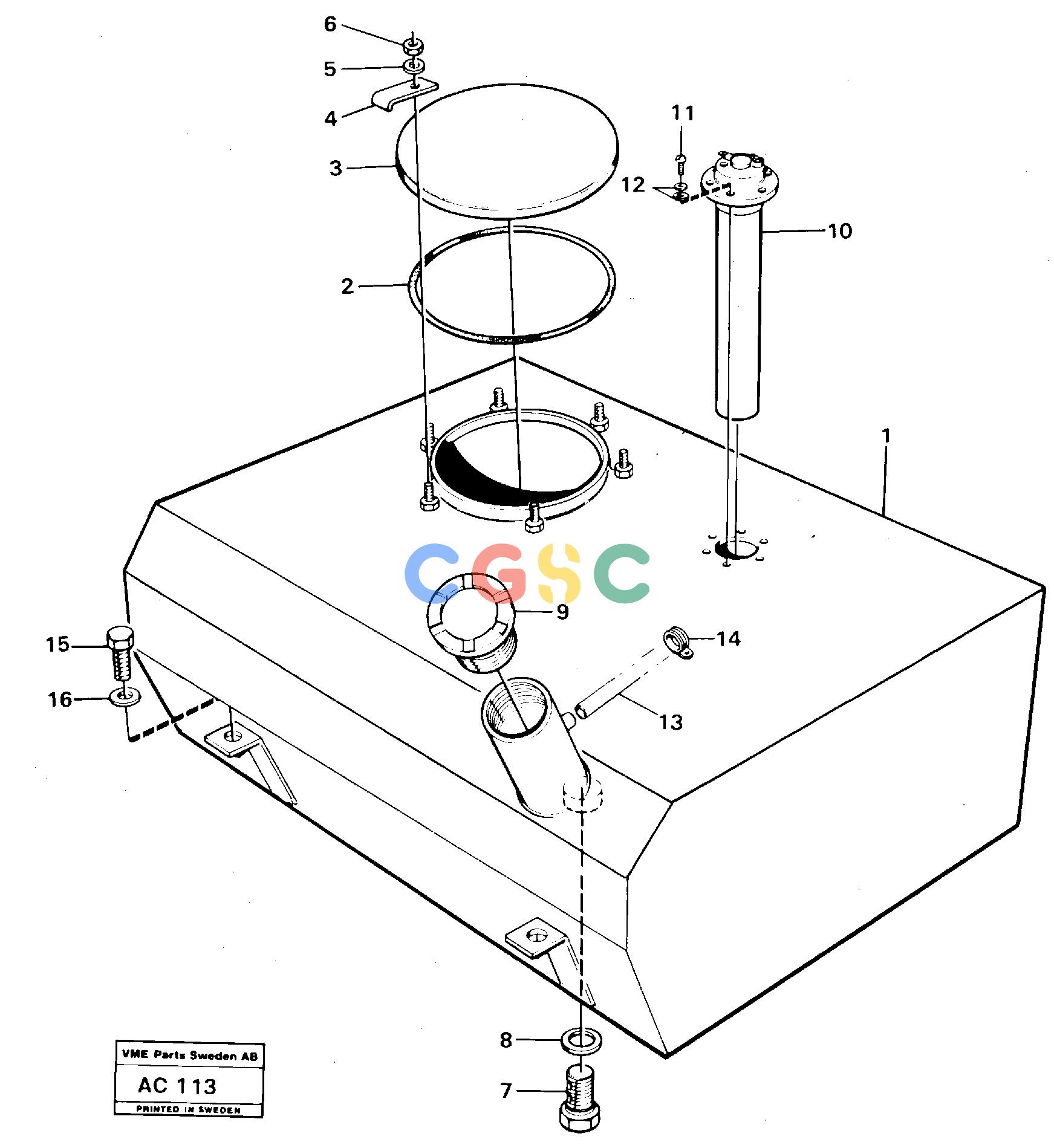

沃尔沃零件查询L70 Fuel tankL70 S/N 7401- / 60501- USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
774 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13955894
|
[0006] |
Washer
|
|
| 6. |
VOE955782
|
[0006] |
Hexagon nut
|
|
| 7. |
|
[0001] |
Plug
|
|
| 8. |
VOE957184
|
[0001] |
Gasket
|
|
| 9. |
VOE1189577
|
[0001] |
Filler cap
|
LOCKABLE / LÅSBART
|
| |
VOE1698164
|
[0001] |
Gasket
|
|
| |
VOE11991396
|
[0002] |
Key
|
|
| 1. |
VOE4948735
|
[0001] |
Fuel tank
|
|
| 10. |
VOE4786126
|
[0001] |
Tank unit
|
SE17
|
| 11. |
VOE956094
|
[0006] |
Cross recessed screw
|
|
| 12. |
VOE957170
|
[0007] |
Gasket
|
|
| 13. |
VOE13944075
|
[REQ] |
Rubber hose
|
L=1400
|
| 14. |
VOE943470
|
[0001] |
Hose clamp
|
|
| 15. |
VOE13970971
|
[0004] |
Hexagon screw
|
|
| 16. |
VOE13960145
|
[0004] |
Washer
|
|
| 2. |
VOE4939034
|
[0001] |
Sealing ring
|
|
| 3. |
VOE4939035
|
[0001] |
Cover
|
|
| 4. |
VOE11018449
|
[0006] |
Clamp
|
|
