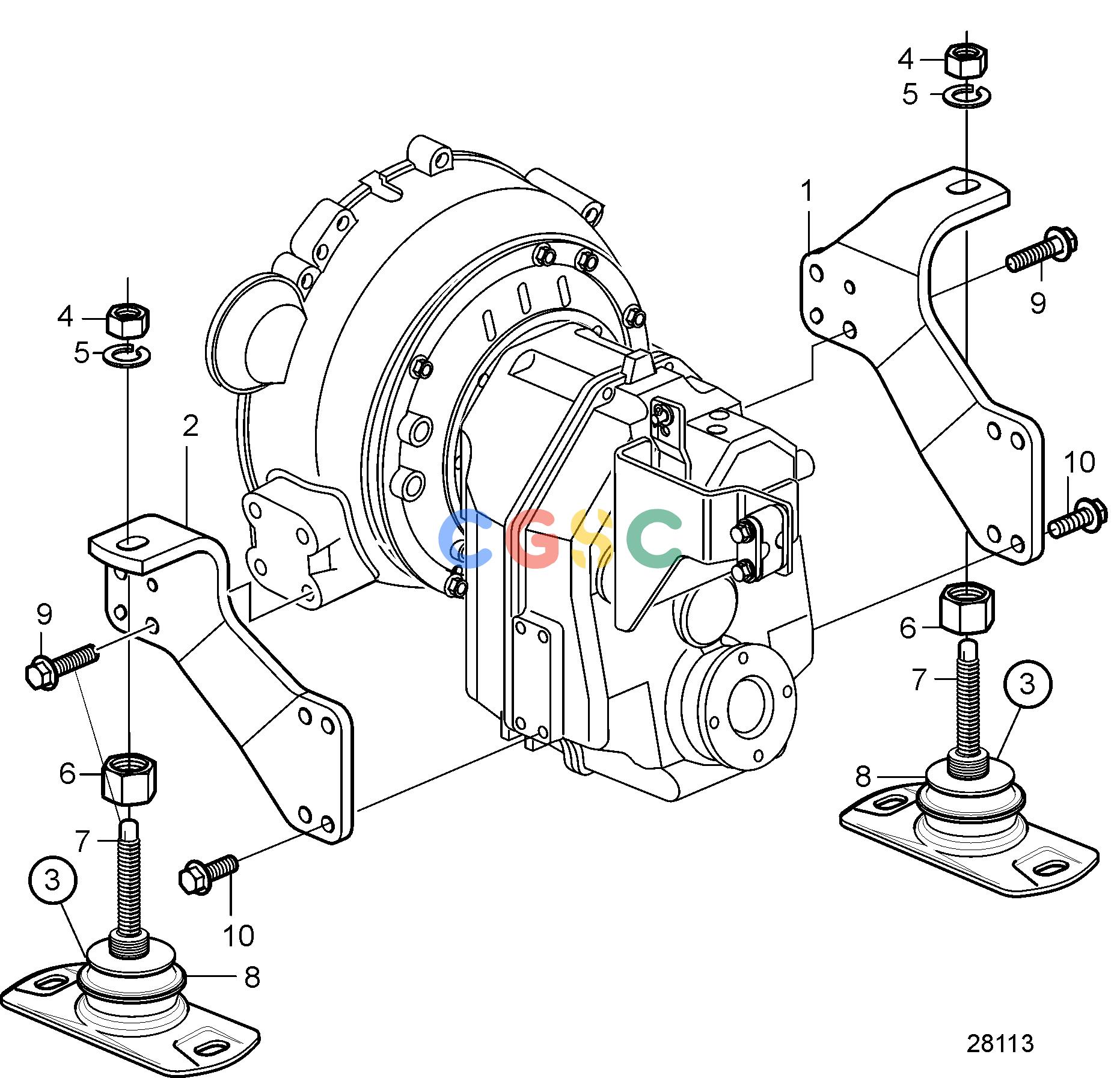

沃尔沃零件查询D3-110I-H; D3-140A-H; D3-140I-H; D3-150I-H; D3-170A-H; D3-170I-H; D3-200A-H; D3-200I-H; D3-220A-H; D3-220I-HEngineEngine Mounting for Reverse Gear HS63IVEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
618 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22176274
|
[1] |
Engine bracket
|
Right
|
| 2. |
22176272
|
[1] |
Engine bracket
|
Left
|
| 3. |
22006200
|
[2] |
Rubber cushion
|
|
| 4. |
990973
|
[2] |
Hexagon nut
|
|
| 5. |
847766
|
[2] |
Lock washer
|
|
| 6. |
3594127
|
[2] |
Nut
|
|
| 7. |
3593856
|
[2] |
Adjusting screw
|
|
| 8. |
3593858
|
[2] |
Washer
|
|
| 9. |
984850
|
[8] |
Flange screw
|
M12x50mm
|
| 10. |
965225
|
[8] |
Flange screw
|
M12x35mm
|
