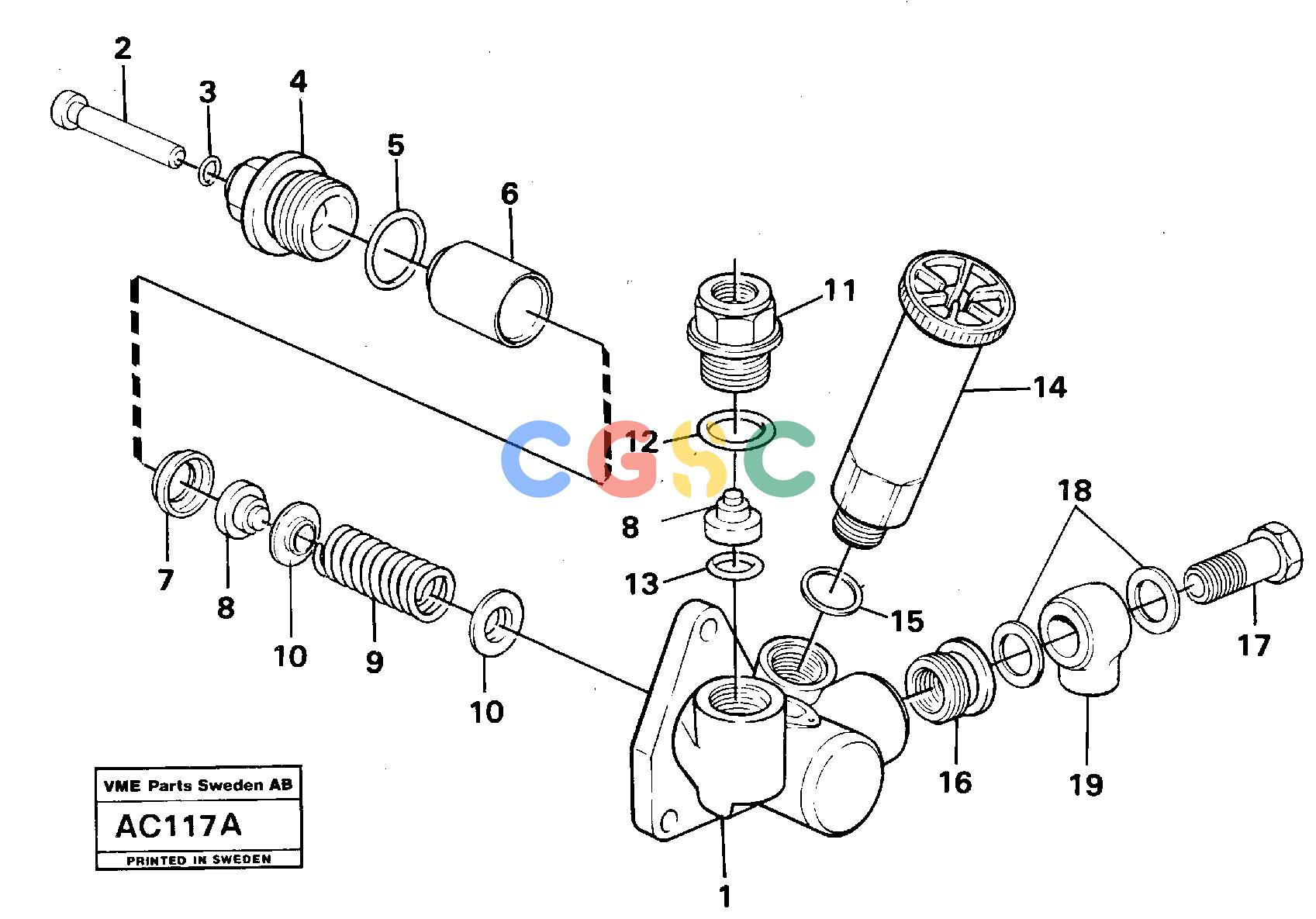

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE6213598
|
[1] |
Feed pump
|
REPL BY 6213583
|
| |
|
|
None
|
BOSCH NR. 0 440 017 030
|
| |
VOE6213583
|
|
Feed pump
|
E PROD
|
| |
|
|
None
|
BOSCH NR. 0 440 017 031
|
| 1. |
|
[1] |
Housing
|
|
| 2. |
VOE244840
|
[1] |
Push rod
|
|
| 3. |
VOE11716292
|
[1] |
O-ring
|
|
| 4. |
VOE244841
|
[1] |
Housing
|
|
| 5. |
VOE15031180
|
[1] |
O-ring
|
|
| 6. |
VOE244831
|
[1] |
Piston
|
|
| 7. |
|
[1] |
Spacer ring
|
|
| 8. |
VOE244834
|
[1] |
Valve
|
|
| 9. |
VOE243258
|
[1] |
Spring
|
|
| 10. |
VOE244833
|
[2] |
Spring disc
|
|
| 11. |
VOE11987535
|
[0001] |
Nipple
|
|
| 12. |
VOE244844
|
[0001] |
O-ring
|
|
| 13. |
VOE15000149
|
[0001] |
O-ring
|
|
| 14. |
VOE11716756
|
[0001] |
Hand pump
|
|
| 15. |
VOE240572
|
[0001] |
Gasket
|
|
| 16. |
VOE244836
|
[0001] |
Bushing
|
|
| 17. |
VOE60113509
|
[0001] |
Hollow screw
|
|
| 18. |
VOE13947621
|
|
Plane gasket
|
|
| 19. |
VOE7025170
|
|
Banjo nipple
|
|
