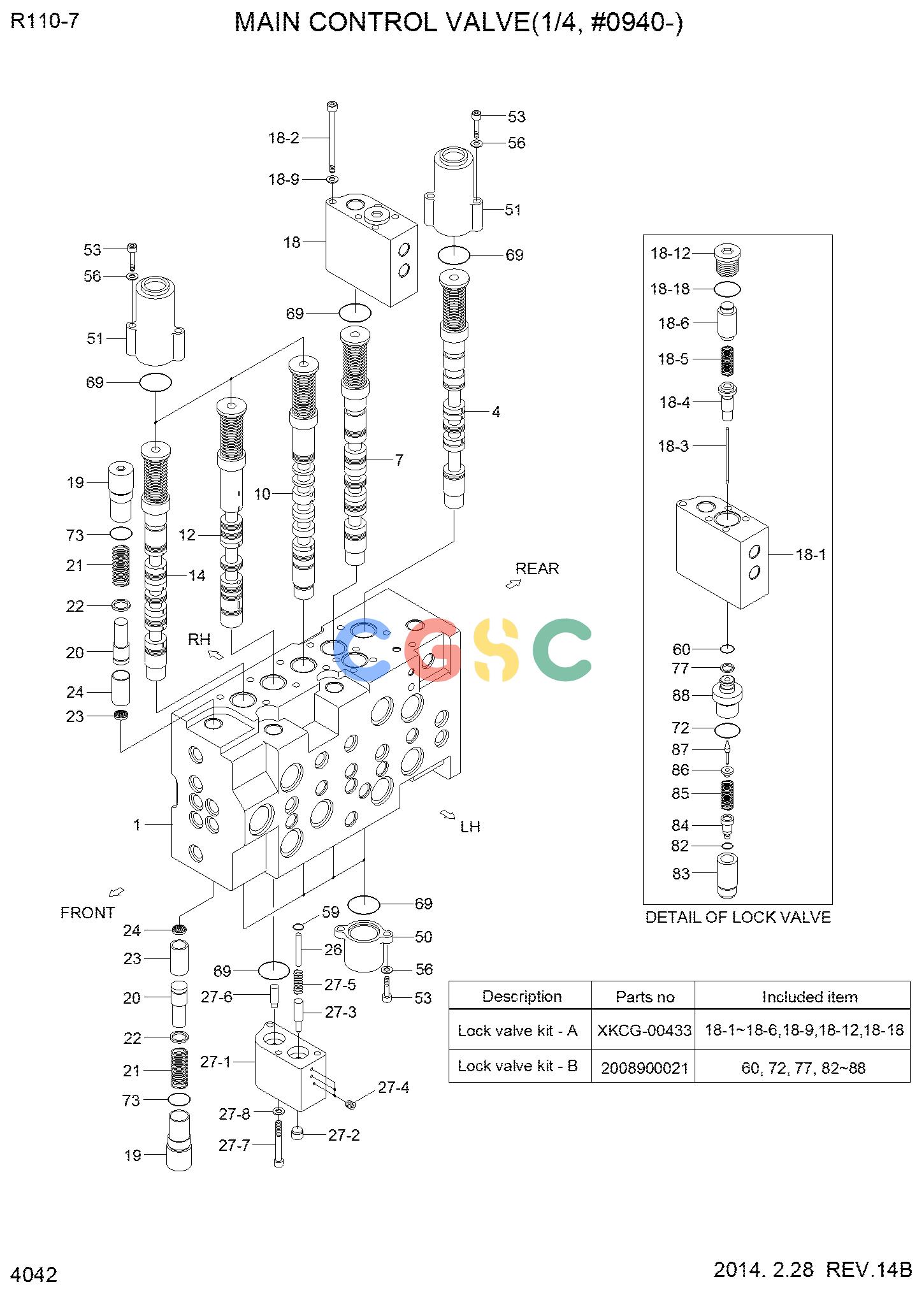

现代零件查询R110-7 MAIN CONTROL VALVE(1/4, 2-BLOCK, #0940-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
892 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31N3-16111
|
[1] |
MAIN CONTROL VALVE
|
|
| 1. |
XKCG-00491
|
[1] |
HOUSING P1
|
|
| 4. |
XKCG-00494
|
[1] |
SPOOL ASSY(TRAVEL)
|
|
| 7. |
XKCG-00496
|
[1] |
SPOOL ASSY(BOOM1)
|
|
| 10. |
XKCG-00499
|
[2] |
SPOOL ASSY(ARM2)
|
|
| 12. |
XKCG-00501
|
[2] |
SPOOL ASSY(ARM REGEN)
|
|
| 14. |
XKCG-00503
|
[2] |
SPOOL ASSY(BUCKET)
|
|
| 18. |
XKCG-00433
|
[6] |
HOLDING V/V KIT-A1
|
|
| 18-1. |
XKCG-00434
|
[1] |
BLOCK-LOCK V/V
|
|
| 18-2. |
XKCG-00541
|
[5] |
BOLT SOCKET-M6 100
|
|
| 18-3. |
XKCG-00032
|
[1] |
PISTON 1
|
|
| 18-4. |
XKCG-00086
|
[1] |
GUIDE-PISTON
|
|
| 18-5. |
XKCG-00034
|
[1] |
SPRING1-LOCK VALVE
|
|
| 18-6. |
XKCG-00035
|
[1] |
PISTON2
|
|
| 18-9. |
XKCG-00116
|
[5] |
WASHER-PLAIN
|
|
| 18-12. |
XKCG-00460
|
[1] |
PLUG
|
|
| 18-18. |
XKCG-00060
|
[1] |
O-RING
|
|
| 19. |
XKCG-00507
|
[2] |
SOCKET-N/CONTROL
|
|
| 20. |
XKCG-00508
|
[2] |
PISTION-N/CONTROL
|
|
| 21. |
XKCG-00509
|
[2] |
SPRING-N/CONTROL
|
|
| 22. |
XKCG-00510
|
[2] |
SEAT-SPRING
|
|
| 23. |
XKCG-00511
|
[2] |
POPPET-N/CONTROL
|
|
| 24. |
XKCG-00512
|
[2] |
COIN TYPE FILTER : C8
|
|
| 26. |
XKCG-00481
|
[2] |
PIN-REGEN
|
|
| 27. |
XKCG-00513
|
[1] |
REGEN BLOCK ASSY
|
|
| 27-1. |
XKCG-00542
|
[1] |
BLOCK-REGENE
|
|
| 27-2. |
XKCG-00040
|
[1] |
STOPPER-REGEN
|
|
| 27-3. |
XKCG-00479
|
[2] |
SPOOL-REGEN
|
|
| 27-4. |
XKCG-00050
|
[3] |
PLUG-TAPER
|
|
| 27-5. |
XKCG-00039
|
[1] |
SPRING-REGEN
|
|
| 27-6. |
XKCG-00543
|
[1] |
PISTON CUT OFF
|
|
| 27-7. |
XKCG-00544
|
[3] |
BOLT-SOCKET M6X85L
|
|
| 27-8. |
XKCG-00116
|
[3] |
WASHER-PLAIN
|
|
| 50. |
XKCG-00522
|
[4] |
CAP-PILOT A
|
|
| 51. |
XKCG-00523
|
[4] |
CAP-PILOT B1
|
|
| 53. |
XKCG-00117
|
[26] |
WRENCH BOLT
|
|
| 56. |
XKCG-00116
|
[26] |
WASHER-PLAIN
|
|
| 59. |
P10 N552-90
|
[1] |
Deleted...
|
|
| 60. |
P10A N552-90
|
[1] |
O-RING 1B P10A
|
|
| 69. |
2-125 N674-70
|
[10] |
O-RING AS568 125
|
|
| 72. |
108480
|
[1] |
Deleted...
|
|
| 73. |
108490
|
[8] |
Deleted...
|
|
| 77. |
XKCG-00070
|
[1] |
RING-BACK UP
|
|
| 82. |
XKCG-00036
|
[2] |
C-RING
|
|
| 83. |
XKCG-00537
|
[2] |
POPPET-LOCK V/V
|
|
| 84. |
XKCG-00037
|
[2] |
RESTRICTOR-LOCK VALVE
|
|
| 85. |
XKCG-00028
|
[2] |
SPRING-LOCK VLV PILOT
|
|
| 86. |
XKCG-00085
|
[2] |
GUIDE POPPET
|
|
| 87. |
XKCG-00538
|
[2] |
POPPET-PILOT
|
|
| 88. |
XKCG-00539
|
[2] |
SEAT-POPPET
|
|
