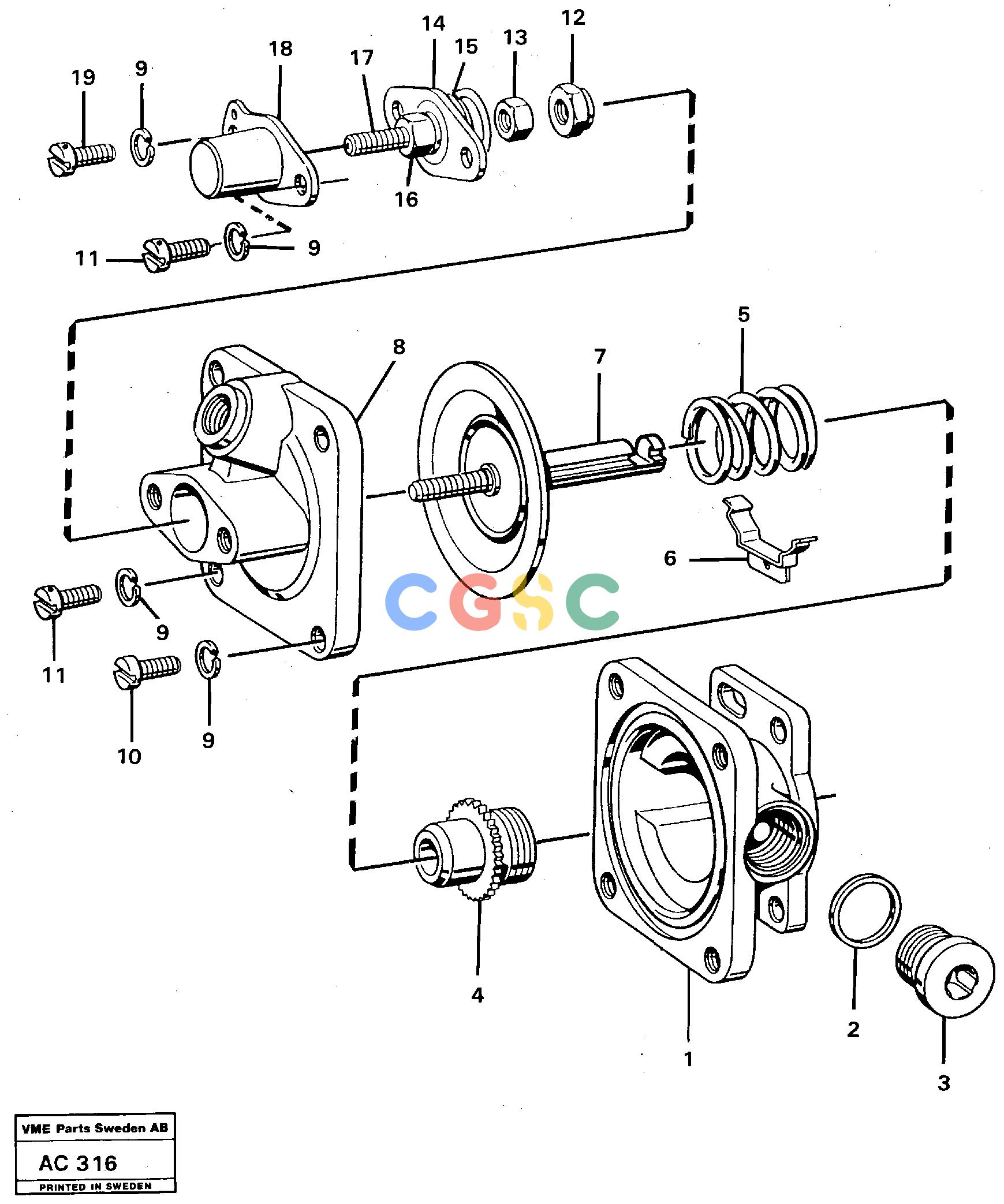

沃尔沃零件查询L70 Smoke limiterL70 S/N 7401- / 60501- USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
909 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11994152
|
[1] |
Smoke limiter
|
|
| 1. |
|
[1] |
Housing
|
|
| 2. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 3. |
VOE244598
|
[1] |
Plug
|
|
| 4. |
|
[1] |
Bushing
|
|
| 5. |
VOE241774
|
[1] |
Spring
|
|
| 6. |
|
[1] |
Spring
|
|
| 7. |
VOE11701784
|
[1] |
Diaphragm
|
|
| 8. |
|
[1] |
Cover
|
|
| 9. |
VOE838340
|
[6] |
Washer
|
|
| 10. |
VOE11994151
|
[3] |
Screw
|
|
| 11. |
|
[1] |
Screw
|
|
| 12. |
VOE244674
|
[1] |
Nut
|
|
| 13. |
VOE940197
|
[1] |
Hexagon nut
|
|
| 14. |
VOE244676
|
[1] |
Stop, Shoulder
|
|
| 15. |
VOE240422
|
[1] |
Sealing ring
|
|
| 16. |
|
[1] |
Nut
|
|
| 17. |
|
[1] |
Stud
|
|
| 18. |
VOE244678
|
[1] |
Cover
|
|
| 19. |
|
[1] |
Screw
|
|
