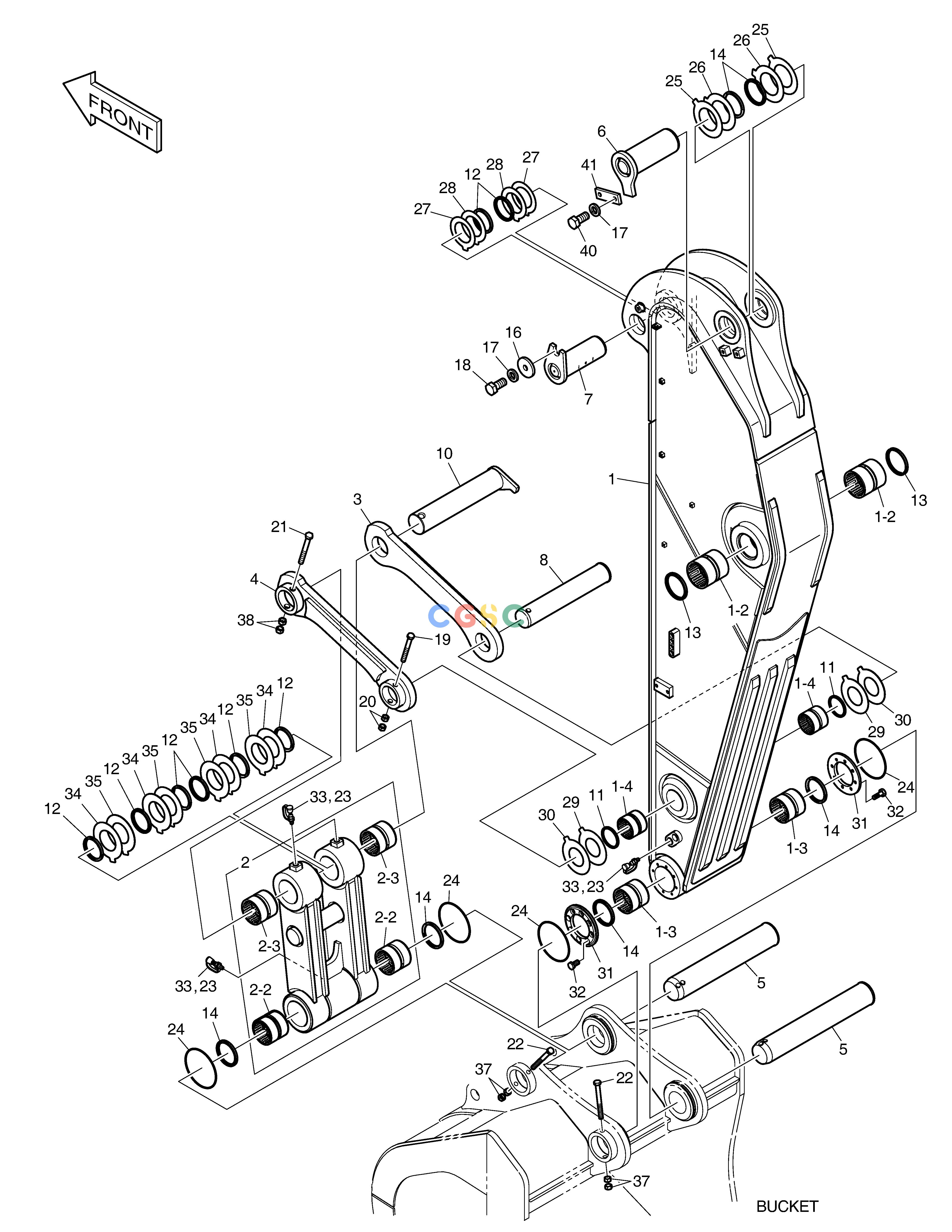

斗山零件查询ARM - 2.4m DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
614 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230201-00260
|
[-] |
|
|
| 1. |
230204-00128G
|
[1] |
|
|
| 1-2. |
131004-00122
|
[2] |
|
|
| 1-3. |
131004-00006B
|
[2] |
|
|
| 1-4. |
131004-00007B
|
[2] |
|
|
| 10. |
120501-00062B
|
[1] |
|
|
| 11. |
DS5502014
|
[2] |
PARE-POUSSIERES
|
|
| 12. |
DS5502015
|
[8] |
PARE-POUSSIERES
|
|
| 13. |
DS5502019
|
[2] |
PARE-POUSSIERES
|
|
| 14. |
DS5502018
|
[6] |
|
|
| 16. |
2116-1060D5
|
[1] |
STOPPER
|
|
| 17. |
2114-1816A
|
[3] |
WASHER
|
|
| 18. |
S0521366
|
[1] |
BOLT
|
|
| 19. |
DS0001086
|
[1] |
BOLT
|
|
| 2. |
101541-00065
|
[1] |
|
|
| 2-2. |
131004-00009B
|
[2] |
|
|
| 2-3. |
131004-00008B
|
[2] |
|
|
| 20. |
S4013133
|
[2] |
NUT
|
|
| 21. |
DS0001091
|
[1] |
BOLT M24X3.0X195
|
|
| 22. |
DS0001080
|
[2] |
BOLT
|
|
| 23. |
S6710041
|
[5] |
NIPPLE,GREASE
|
|
| 24. |
180-00077D9
|
[4] |
O-RING
|
|
| 25. |
DS7752034
|
[2] |
SHIM
|
|
| 26. |
DS7752035
|
[2] |
SHIM
|
|
| 27. |
DS7752029
|
[2] |
SHIM
|
|
| 28. |
DS7752030
|
[2] |
SHIM
|
|
| 29. |
DS7752019
|
[2] |
SHIM
|
|
| 3. |
101540-00041A
|
[1] |
|
|
| 30. |
DS7752020
|
[2] |
SHIM
|
|
| 31. |
K1000913
|
[2] |
SPACER
|
|
| 32. |
120-00223
|
[16] |
BOLT M12X1.25X25
|
|
| 33. |
160-00020
|
[5] |
CAP
|
|
| 34. |
DS7752031
|
[4] |
SHIM
|
|
| 35. |
DS7752032
|
[4] |
SHIM
|
|
| 37. |
S4013233
|
[4] |
NUT M22X2.5
|
|
| 38. |
S4013333
|
[2] |
. NUT
|
|
| 4. |
101540-00042A
|
[1] |
|
|
| 40. |
S0521456
|
[2] |
BOLT M16X2.0X40
|
|
| 41. |
250107-00263
|
[1] |
|
|
| 5. |
120501-01116
|
[2] |
|
|
| 6. |
120501-01825
|
[1] |
|
|
| 7. |
120501-00060
|
[1] |
|
|
| 8. |
120501-01118
|
[1] |
|
|
