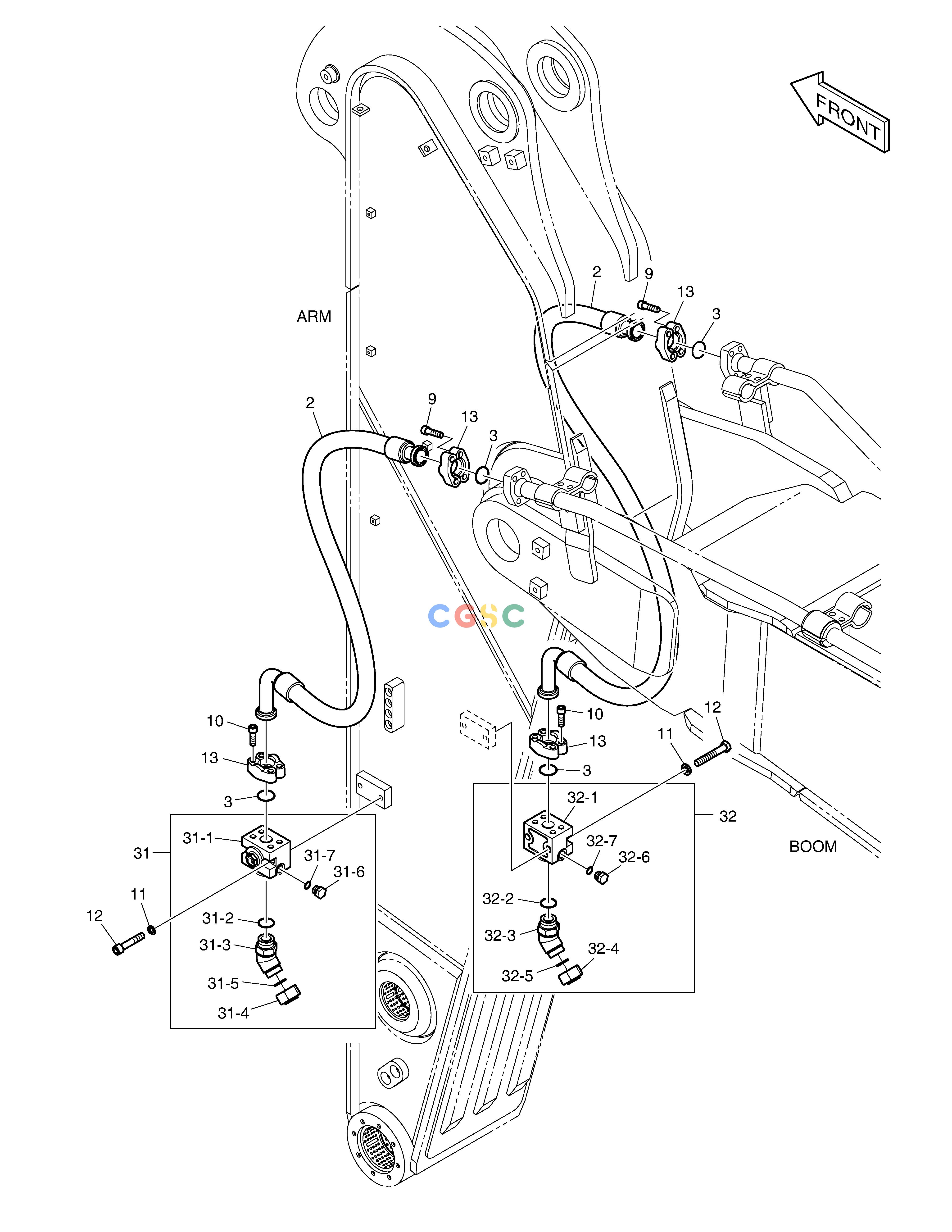

斗山零件查询ARM PIPING - ONE & TWO WAY(ARM 2.4m) DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
379 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-04387
|
[-] |
|
|
| 10. |
S2218566
|
[8] |
BOLT;SOCKET
|
|
| 11. |
S5110903
|
[4] |
WASHER
|
|
| 12. |
S2222266
|
[4] |
|
|
| 13. |
2181-9086
|
[8] |
FLANGE;SPLIT
|
|
| 2. |
2184-1100D92
|
[2] |
HOSE 2-1 1/4 6000PSI-2150L
|
|
| 3. |
2180-1026D23
|
[4] |
O-RING
|
|
| 31. |
410137-00039C
|
[1] |
|
|
| 31-1. |
410137-00041C
|
[1] |
|
|
| 31-2. |
S8000381
|
[1] |
O-RING
|
|
| 31-3. |
2181-2816D3
|
[1] |
ELBOW
|
|
| 31-4. |
2181-2817D3
|
[1] |
CAP
|
|
| 31-5. |
2180-1026D37
|
[1] |
O-RING
|
|
| 31-6. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 31-7. |
S8000181
|
[1] |
O-RING
|
|
| 32. |
410137-00040C
|
[1] |
|
|
| 32-1. |
410137-00043C
|
[1] |
|
|
| 32-2. |
S8000381
|
[1] |
O-RING
|
|
| 32-3. |
2181-2816D3
|
[1] |
ELBOW
|
|
| 32-4. |
2181-2817D3
|
[1] |
CAP
|
|
| 32-5. |
2180-1026D37
|
[1] |
O-RING
|
|
| 32-6. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 32-7. |
S8000181
|
[1] |
O-RING
|
|
| 9. |
S2218766
|
[8] |
BOLT;SOCKET
|
|
