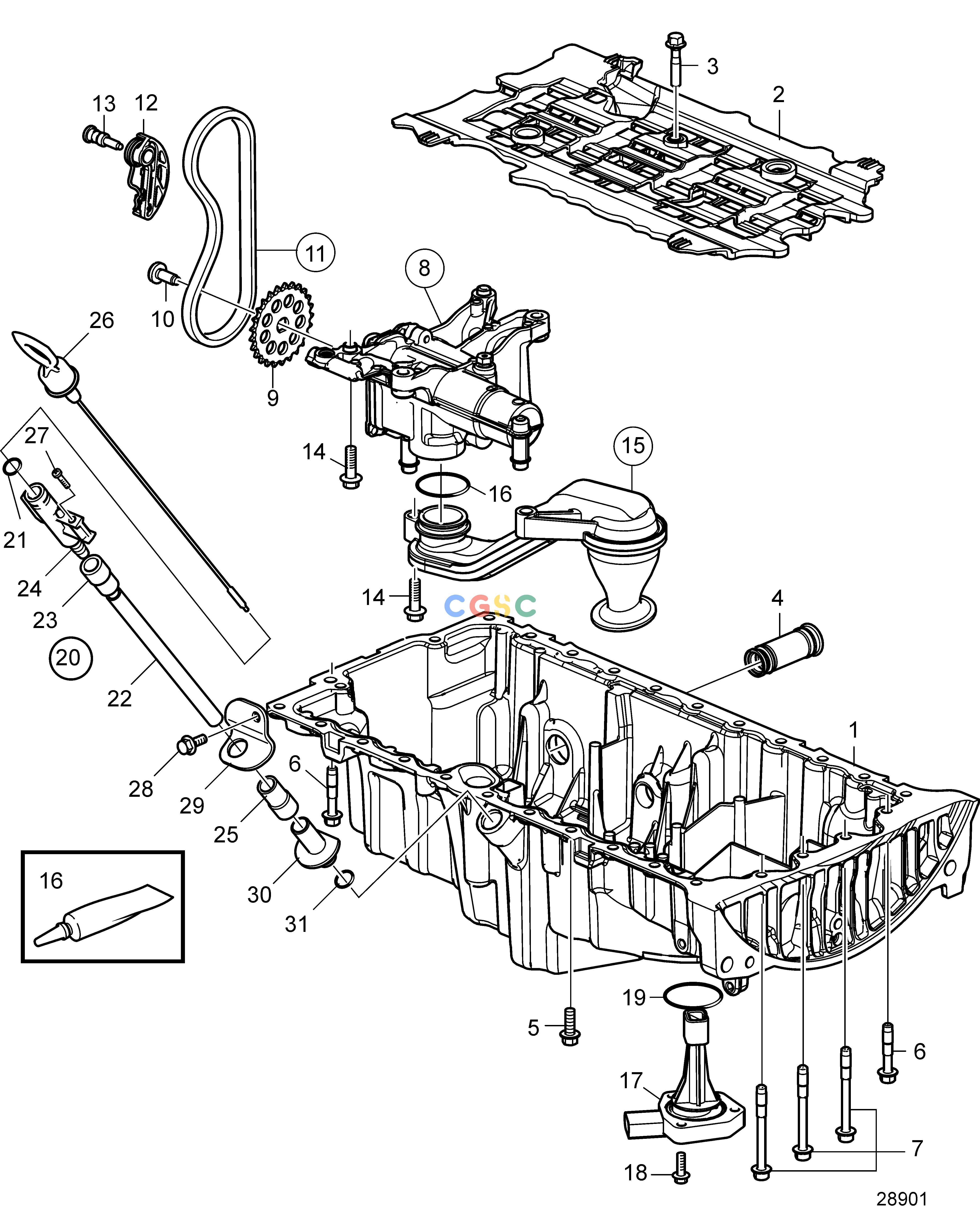

沃尔沃零件查询D3-110I-H; D3-140A-H; D3-140I-H; D3-150I-H; D3-170A-H; D3-170I-H; D3-200A-H; D3-200I-H; D3-220A-H; D3-220I-HLubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
489 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9487254
|
[1] |
Oil sump
|
|
| 2. |
31359659
|
[1] |
Oil plate
|
|
| 3. |
985135
|
[1] |
Flange screw
|
|
| 4. |
31258024
|
[1] |
Oil pipe
|
O-rings included
|
| 5. |
975880
|
[22] |
Flange screw
|
|
| 6. |
985322
|
[3] |
Flange screw
|
|
| 7. |
989850
|
[3] |
Flange screw
|
|
| 8. |
31330979
|
[1] |
Oil pump
|
|
| 9. |
31272512
|
[1] |
Sprocket
|
|
| 10. |
9487162
|
[1] |
Screw
|
|
| 11. |
31375415
|
[1] |
Drive chain
|
|
| 12. |
31272500
|
[1] |
Chain tensioner
|
|
| 13. |
31272502
|
[1] |
Guide screw
|
|
| 14. |
985135
|
[6] |
Flange screw
|
|
| 15. |
31330963
|
[1] |
Suction line
|
|
| 16. |
9487163
|
[1] |
O-ring
|
|
| 17. |
31272687
|
[1] |
Oil level sensor
|
|
| 18. |
982759
|
[3] |
Flange screw
|
|
| 19. |
31219441
|
[1] |
O-ring
|
|
| 20. |
21666364
|
[1] |
Pipe
|
|
| 21. |
944124
|
[1] |
O-ring
|
|
| 22. |
980833
|
[1] |
Tube
|
|
| 23. |
843533
|
[1] |
Rubber hose
|
|
| 24. |
|
|
|
|
| 25. |
843533
|
[1] |
Rubber hose
|
|
| 26. |
3847530
|
[1] |
Oil dipstick
|
|
| 27. |
975378
|
[1] |
Six point socket scr
|
|
| 28. |
982775
|
[1] |
Flange screw
|
|
| 29. |
3847997
|
[1] |
Bracket
|
|
| 30. |
21625925
|
[1] |
Insert nipple
|
|
| 31. |
968757
|
[1] |
O-ring
|
|
