卡特零件查询（725C） 364-2888: LINES GP-HYDRAULIC FAN

广数供应链运营团队, 14 02月, 2025，浏览： 684 次

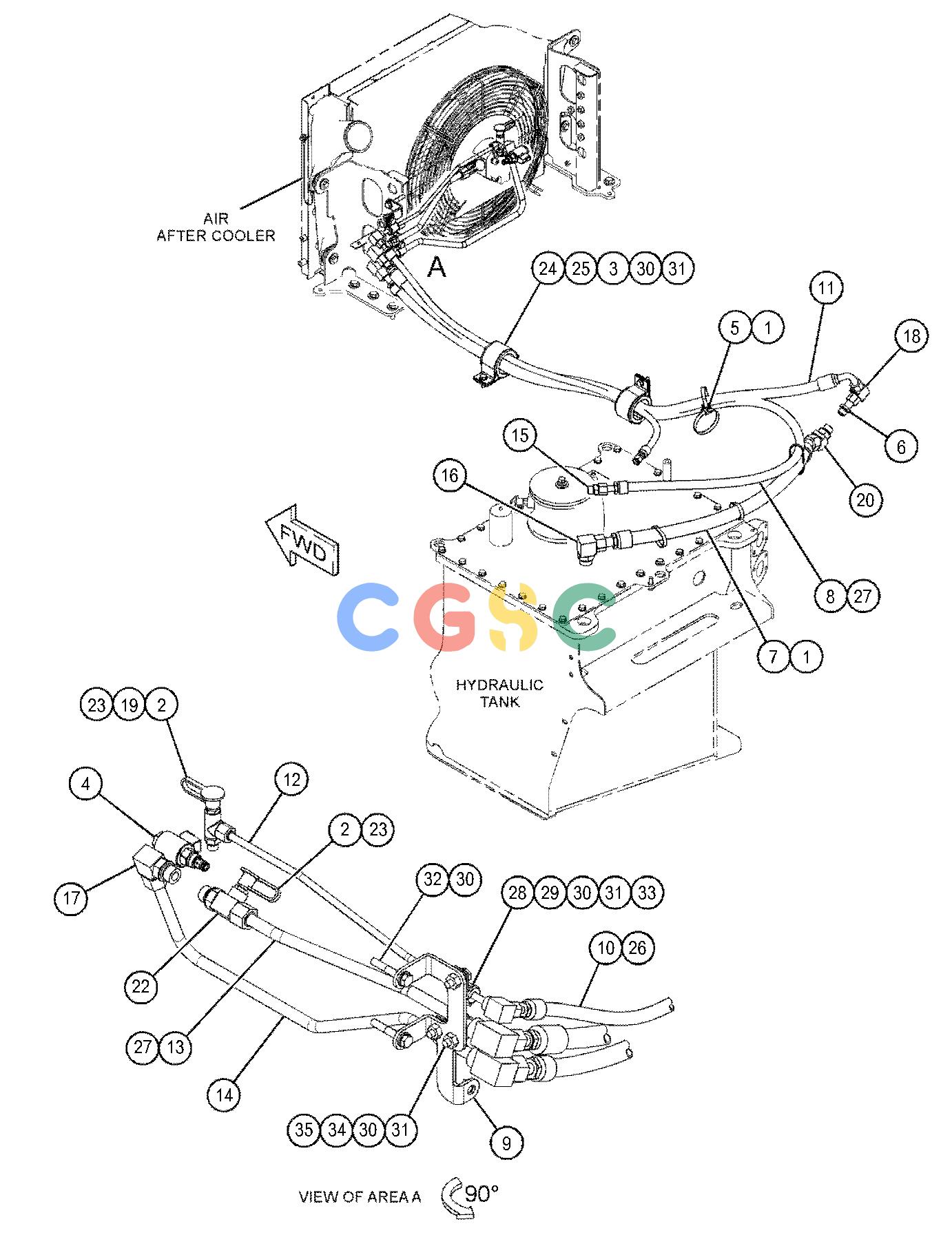

Pos.	Part No	Qty	Parts name
1.	6U-0456	[2]	STRAP
2.	I	[1]	HOSE AS
3.	188-9872I	[1]	HOSE AS
4.	217-3307I	[1]	HOSE AS
5.	I	[1]	HOSE AS
6.	360-5604	[1]	VALVE AS-CONTROL(HYDRAULIC OIL TEMP)(HYDRAULIC OIL)
	238-5085	[1]	SEAL-O-RING
7.	392-9660I	[1]	HOSE AS
8.	455-2759	[2]	PLATE
9.	393-5003	[1]	TUBE AS
10.	393-5004	[1]	TUBE AS
11.	441-9615I	[1]	HOSE AS
12.	106-5125	[1]	CLIP(SLOT)
13.	106-5126	[1]	CLIP(TAB)
14.	118-9573M	[8]	BOLT-12 POINT HEAD(M10X1.5X35-MM)
15.	148-8317	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	5K-9090	[1]	SEAL-O-RING
	6V-8714	[1]	CONNECTOR
16.	148-8322	[1]	CONNECTOR AS
	2M-9780	[1]	SEAL-O-RING
	6V-8640	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
17.	148-8327	[1]	CONNECTOR AS
	3D-2824	[1]	SEAL-O-RING
	6V-8637	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
18.	148-8347	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-9007	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
19.	148-8362	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	5K-9090	[1]	SEAL-O-RING
	8T-6684	[1]	ELBOW
20.	148-8455	[2]	UNION AS
			(EACH INCLUDES)
	6V-8997	[1]	UNION
	6V-9746	[2]	SEAL-O-RING
21.	155-2026	[2]	UNION AS
			(EACH INCLUDES)
	5K-9090	[2]	SEAL-O-RING
	6V-8998	[1]	UNION
22.	2P-1293	[2]	LOCKNUT(1-3/16-12-THD)
23.	4J-0520	[1]	SEAL-O-RING
24.	4J-5267	[1]	SEAL-O-RING
25.	6V-9172	[2]	NUT(1-7/16-12-THD)
26.	8C-3205	[2]	FLANGE-HALF
27.	8C-3206	[2]	FLANGE-HALF
28.	8T-4121	[1]	WASHER-HARD(11X21X2.5-MM THK)
29.	8T-4186M	[1]	BOLT(M10X1.5X40-MM)
30.	8T-4896	[8]	WASHER-HARD(10.2X18.5X2.5-MM THK)
31.	9X-7456	[1]	GROMMET
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
