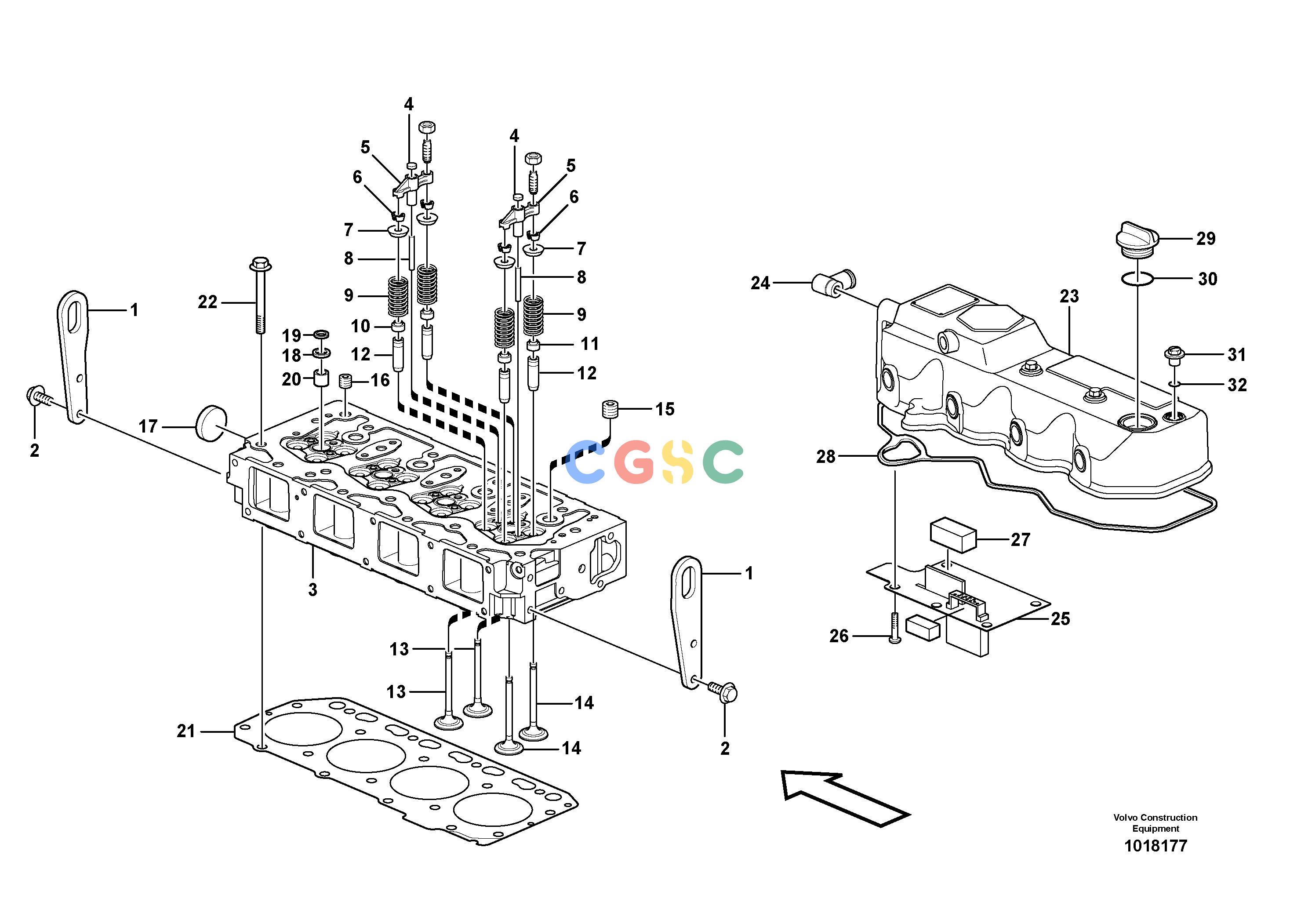

沃尔沃零件查询MC110B Cylinder headNone11850033-11850709VOE11850033NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
283 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11714768
|
[2] |
Lifting eye
|
|
| 2. |
VOE11714372
|
[4] |
Bolt
|
|
| 3. |
VOE11714809
|
[1] |
Cylinder head
|
|
| 4. |
VOE14521518
|
[8] |
Seat
|
|
| 5. |
VOE14521529
|
[8] |
Valve guide
|
|
| 5. |
VOE14521530
|
[8] |
Screw
|
|
| 5. |
VOE11714380
|
[8] |
Nut
|
|
| 6. |
VOE14521531
|
[16] |
Valve cone
|
|
| 7. |
VOE14521526
|
[16] |
Retainer
|
|
| 8. |
VOE14521521
|
[8] |
Guide
|
|
| 9. |
VOE14521525
|
[16] |
Valve spring
|
|
| 10. |
VOE14521528
|
[8] |
Valve seal
|
|
| 11. |
VOE14521527
|
[8] |
Valve seal
|
|
| 12. |
VOE14521518
|
[16] |
Seat
|
|
| 13. |
VOE14521524
|
[8] |
Exhaust valve
|
|
| 14. |
VOE14521523
|
[8] |
Inlet valve
|
|
| 15. |
VOE14521504
|
[4] |
Plug
|
|
| 16. |
VOE14521522
|
[1] |
Plug
|
|
| 17. |
VOE11714379
|
[1] |
Plug
|
|
| 18. |
VOE11714381
|
[4] |
Seat
|
|
| 19. |
VOE11714386
|
[4] |
O-ring
|
|
| 20. |
VOE14521532
|
[4] |
Protection
|
|
| 21. |
VOE14528171
|
[1] |
Cylinder head gasket
|
|
| 22. |
VOE11714759
|
[18] |
Screw
|
|
| 23. |
VOE11714781
|
[1] |
Valve cover
|
|
| 24. |
VOE11714782
|
[1] |
Connector
|
|
| 25. |
VOE11714770
|
[1] |
Plate
|
|
| 26. |
VOE11714720
|
[6] |
Screw
|
|
| 27. |
VOE14521547
|
[1] |
Baffle
|
|
| 28. |
VOE15057758
|
[1] |
Valve cover gasket
|
|
| 29. |
VOE11714383
|
[1] |
Cap
|
|
| 30. |
VOE11714371
|
[1] |
O-ring
|
|
| 31. |
VOE11714385
|
[4] |
Flange cap nut
|
|
| 32. |
VOE11714386
|
[4] |
O-ring
|
|
