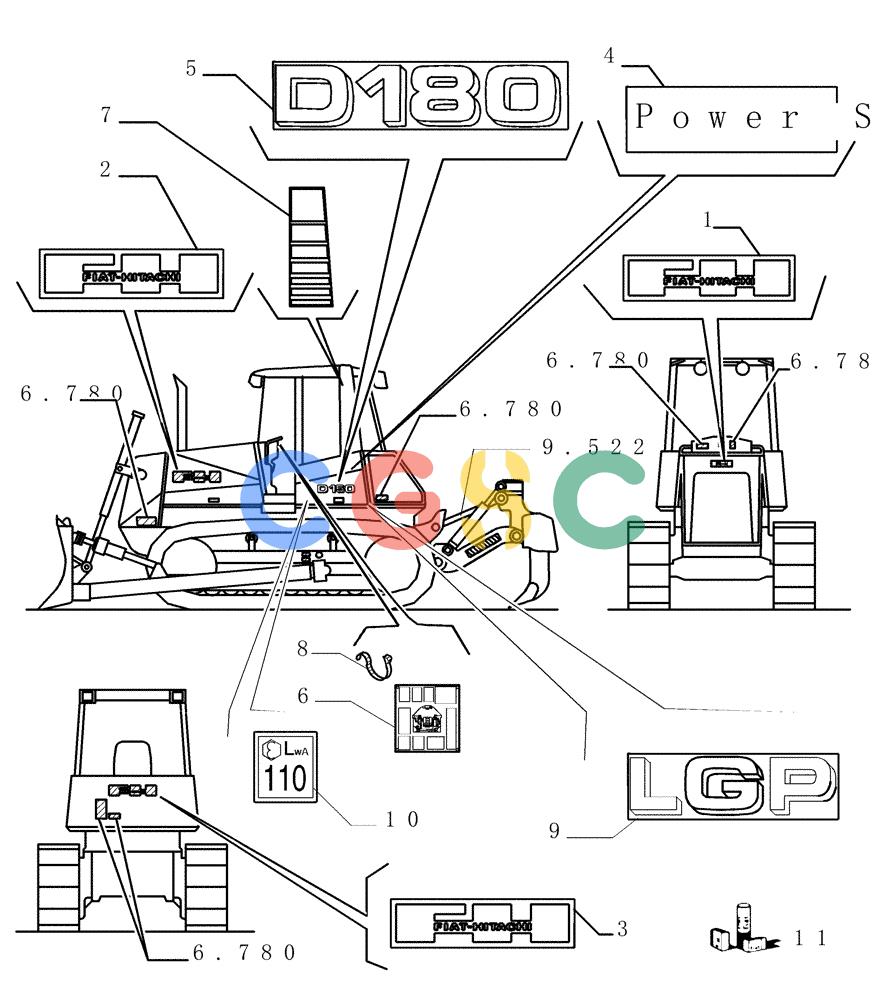

纽荷兰零件查询(DC180LGP) - CRAWLER DOZER (2/01-) (6.782[02]) - TRADE MARK DECALS - N.A. VERSION (03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
114 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76073347 | [1] | DECAL KIT | NHKIT, DECAL - Includes Items 2 thru 12 Superseded by part number: 76069711, 76069768, 76069734, 76073320, 76073319, 76069710, 76069735, 76069779, 76069739, 76069732, 76069713, 76073321, 76069712, 76073330 |
| 2. | 76069710 | [2] | MAKERS BADGE | TORDECAL, NEW HOLLAND |
| 3. | 76069712 | [1] | MAKERS BADGE | TORDECAL, NEW HOLLAND |
| 4. | 76069711 | [2] | TYPE PLATE | TORDECAL, DC180 Model |
| 5. | 76069768 | [1] | DEALERSHIP IDENTITY LOGO | TORLOGO |
| 6. | 76069739 | [2] | MAKERS BADGE | TORDECAL, NEW GENERATION |
| 7. | 76069713 | [1] | DECAL | TORRED STRIPE - LH |
| 8. | 76069732 | [1] | DECAL | TORRED STRIPE - RH |
| 9. | 76069734 | [1] | DECAL | TORRED STRIPE - LH |
| 10. | 76069735 | [1] | DECAL | TORRED STRIPE - RH |
| 11. | 76069779 | [1] | IDENTITY PLATE | LECPLATE, OPERATION INSTRUCTION |
| 12. | 76073330 | [2] | DECAL | TORLGP |
| 13. | 76073320 | [1] | DECAL | TORLH CAB |
| 14. | 76073321 | [1] | DECAL | TORRH CAB |
| 15. | 76073319 | [2] | DECAL | TORPOWER STEERING |
