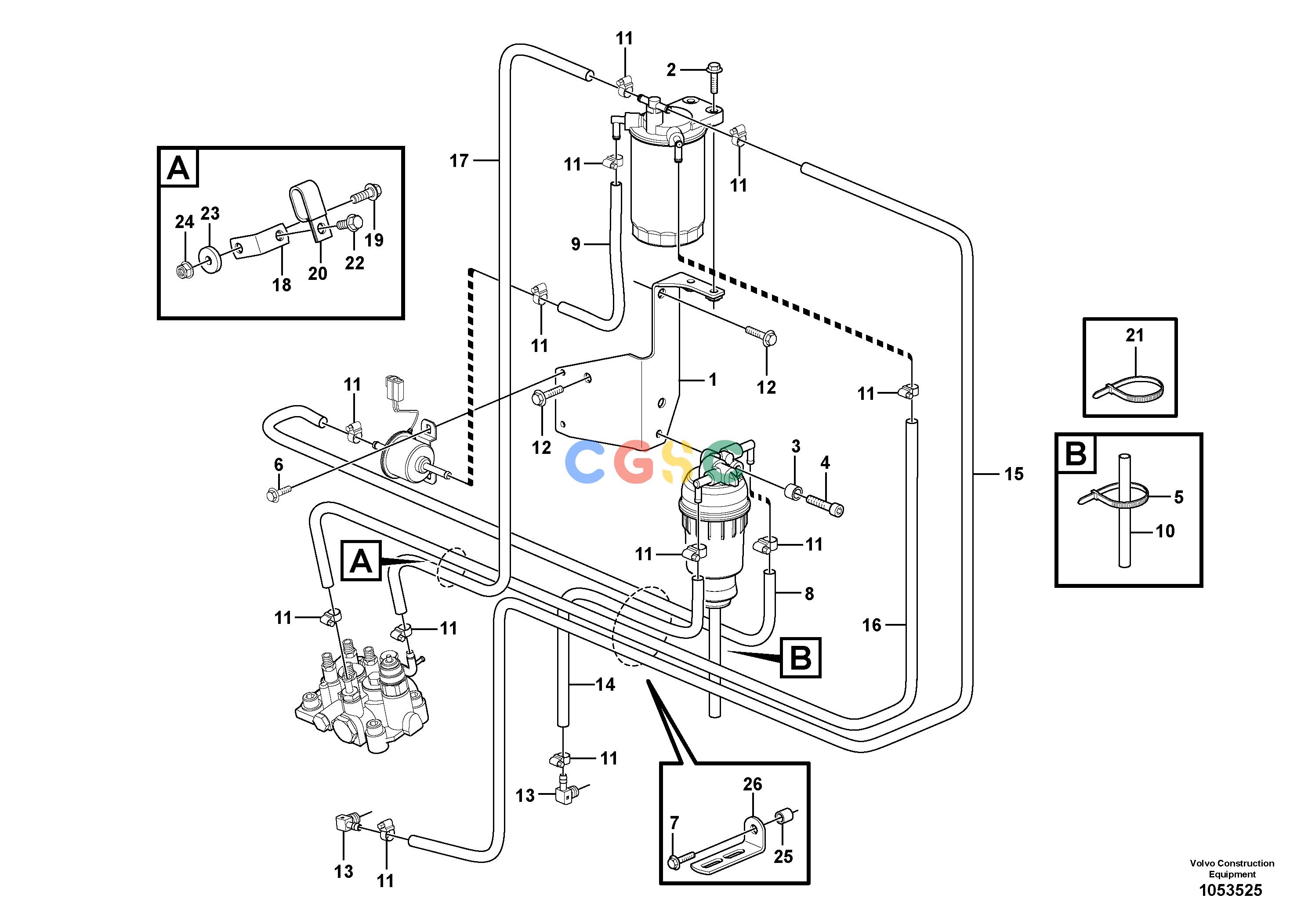

沃尔沃零件查询MC110B Fuel systemS/N 71000 -11858384-11858380VOE11858384NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
777 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15410085
|
[1] |
Bracket
|
|
| 2. |
VOE13945444
|
[2] |
Screw
|
|
| 3. |
VOE930430
|
[1] |
Spacer ring
|
|
| 4. |
VOE967633
|
[1] |
Hex. socket screw
|
|
| 5. |
VOE14016673
|
[1] |
Strip clamp
|
|
| 6. |
VOE13946544
|
[1] |
Screw
|
|
| 7. |
VOE13948356
|
[1] |
Flange screw
|
|
| 8. |
VOE15633049
|
[REQ] |
Fuel hose
|
L = 525 MM
|
| 8. |
VOE4803751
|
[REQ] |
Hose
|
L = 470 MM
|
| 9. |
VOE15633049
|
[REQ] |
Fuel hose
|
L = 350 MM
|
| 9. |
VOE4803751
|
[REQ] |
Hose
|
L = 290 MM
|
| 10. |
VOE11802782
|
[REQ] |
Tube
|
L = 450 MM
|
| 11. |
VOE943469
|
[12] |
Hose clamp
|
|
| 12. |
VOE946471
|
[3] |
Flange screw
|
|
| 13. |
VOE15409926
|
[2] |
Elbow nipple
|
|
| 14. |
VOE15633049
|
[REQ] |
Fuel hose
|
L = 900_MM
|
| 14. |
VOE4803751
|
[REQ] |
Hose
|
L = 830 MM
|
| 15. |
VOE15633049
|
[REQ] |
Fuel hose
|
L = 1400 MM
|
| 15. |
VOE4803751
|
[REQ] |
Hose
|
L = 1275 MM
|
| 16. |
VOE15633049
|
[REQ] |
Fuel hose
|
L = 1475 MM
|
| 16. |
VOE4803751
|
[REQ] |
Hose
|
L = 1125 MM
|
| 17. |
VOE15633049
|
[REQ] |
Fuel hose
|
L = 1175 MM
|
| 17. |
VOE4803751
|
[REQ] |
Hose
|
L = 890 MM
|
| 18. |
VOE15632725
|
[1] |
Bracket
|
|
| 18. |
VOE15627985
|
|
None
|
|
| 19. |
VOE13946173
|
[2] |
Screw
|
|
| 19. |
VOE13955271
|
|
Screw
|
|
| 19. |
VOE13945444
|
|
Screw
|
|
| 20. |
VOE981664
|
[1] |
Clamp
|
|
| 21. |
VOE4881440
|
[REQ] |
Cable tie
|
|
| 22. |
VOE946440
|
[1] |
Flange screw
|
|
| 22. |
VOE13946173
|
|
Screw
|
|
| 23. |
VOE11055612
|
|
Plain washer
|
|
| 24. |
VOE948645
|
[1] |
Flange lock nut
|
|
| 25. |
VOE930418
|
[1] |
Spacer ring
|
|
| 26. |
VOE13965558
|
[1] |
Bracket
|
|
