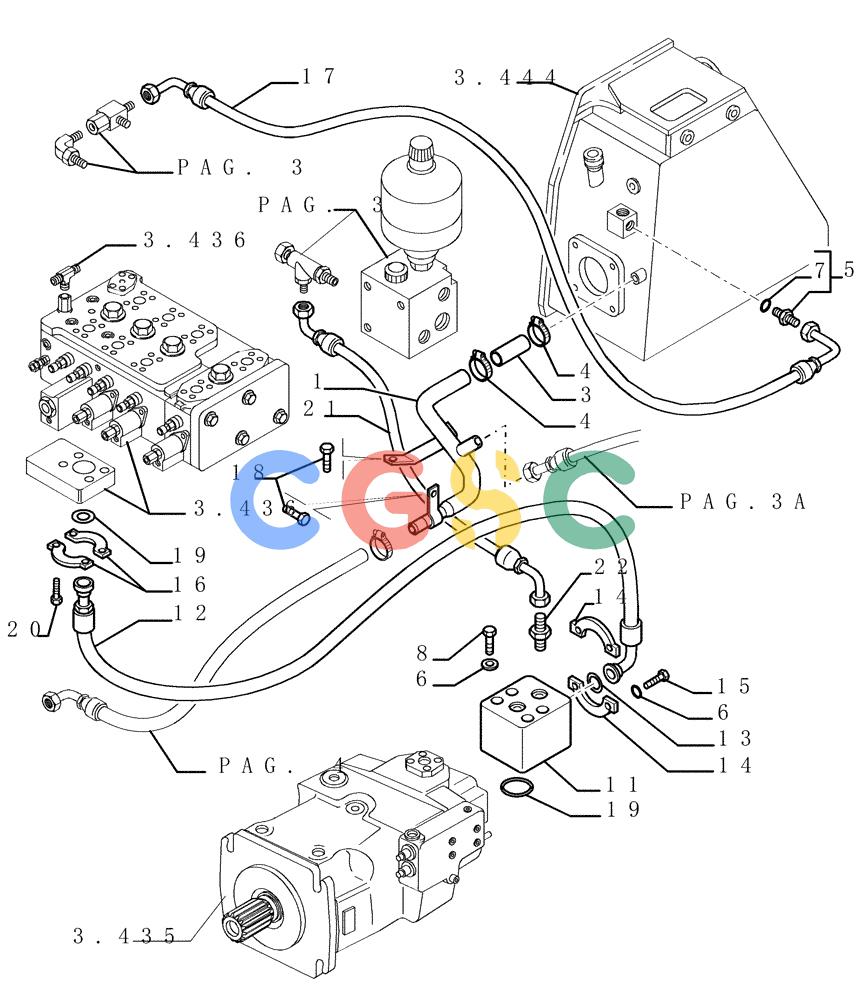

纽荷兰零件查询(DC180LGP) - CRAWLER DOZER (2/01-) (3.434[02A]) - HYDRAULIC SYSTEM PIPING - VERSION (02-03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
493 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76071052 | [1] | TUBE | LEC- RETURN |
| 2. | 79066986 | [1] | TEE | LEC |
| 3. | 76027283 | [1] | HYDRAULIC HOSE | LEC |
| 4. | 79083847 | [2] | HOSE CLAMP,M50-70 | LEC |
| 5. | 79066940 | [1] | HYD CONNECTOR | LEC- ASSY |
| 6. | 12648531 | [12] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 7. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
| 8. | 11114131 | [4] | BOLT,Hex, M12 x 95, 10.9 | LEC |
| 11. | 76054737 | [1] | FLANGE | LEC- DELIVERY Superseded by part number: 76074620 |
| 12. | 76071039 | [1] | HYDRAULIC HOSE | LEC- DELYVERY |
| 13. | 14463781 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro | LEC |
| 13. | 70924200 | [1] | O-RING | LEC- IN ALTERNATIVE 3,53X32,92 Superseded by part number: 14463780 |
| 14. | 71404313 | [2] | CLAMP,Half | LEC10X1,5X30 |
| 15. | 14422231 | [4] | HEX SOC SCREW,M12 x 1.75 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 14422237 |
| 16. | 71444029 | [2] | HALF-FLANGE | LEC1 1/4" |
| 16. | 76044748 | [2] | FLANGE | LEC- IN ALTERNATIVE Superseded by part number: 71444029 |
| 17. | 76071108 | [1] | HYDRAULIC HOSE | LEC |
| 18. | 14313231 | [2] | HEX SOC SCREW,M14 x 2 x 45mm, Cl 10.9, Full Thd | LEC Superseded by part number: 1939880 |
| 19. | 14464081 | [2] | O-RING,50.39mm ID x 3.53" Width | LEC(M37.69 ID x 3.53 Thk) Superseded by part number: 17289481 |
| 19. | 70924192 | [2] | O-RING | LEC- IN ALTERNATIVE 3,53X37,69 Superseded by part number: 14464080 |
| 20. | 14420131 | [4] | HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd | LEC |
| 21. | 76071035 | [1] | HYDRAULIC HOSE | LEC |
| 22. | 79066938 | [1] | FITTING | LEC |
