纽荷兰零件查询(DC180LGP) - CRAWLER DOZER (2/01-) (3.434[04]) - HYDRAULIC SYSTEM PIPING - VERSION (02-03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
219 次

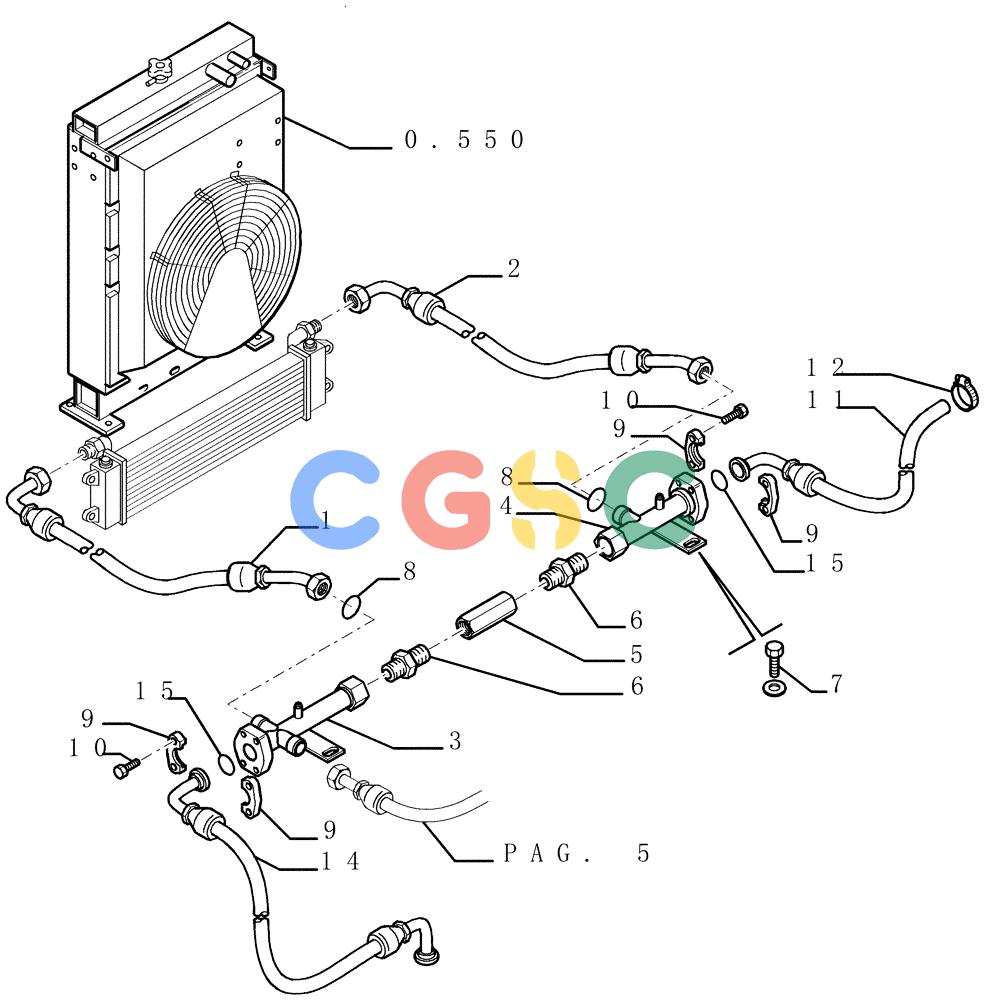

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76072323 | [1] | HYDRAULIC HOSE | LEC- LEFT |
| 2. | 76072324 | [1] | HYDRAULIC HOSE | LEC- RIGHT |
| 3. | 76069980 | [1] | TUBE,26 mm ID, 32 mm OD, 240 mm Length | LEC- LEFT |
| 4. | 76069981 | [1] | TUBE,26 mm ID, 32 mm OD, 195 mm Length | LEC- RIGTH |
| 5. | 76040628 | [1] | CHECK VALVE | LEC5 BAR |
| 6. | 76053698 | [2] | HYD CONNECTOR | LEC |
| 7. | 11112231 | [2] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 8. | 70923843 | [2] | O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro | LEC1,78X18,77 Superseded by part number: 66297 |
| 9. | 79093684 | [4] | HALF-FLANGE | LEC1 1/4" Superseded by part number: A12301 |
| 10. | 14420131 | [8] | HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd | LEC |
| 11. | 76071110 | [1] | HYDRAULIC HOSE | LEC |
| 12. | 79083845 | [1] | HOSE CLAMP,32mm - 50mm, Worm Gear | LEC35-20 Superseded by part number: 71404506 |
| 14. | 76071070 | [1] | HYDRAULIC HOSE | LEC- RETURN |
| 15. | 14464081 | [2] | O-RING,50.39mm ID x 3.53" Width | LEC(M37.69 ID x 3.53 Thk) In Alternative Superseded by part number: 17289481 |
| 15. | 70924192 | [2] | O-RING | LEC3,53X37,69 Superseded by part number: 14464080 |
