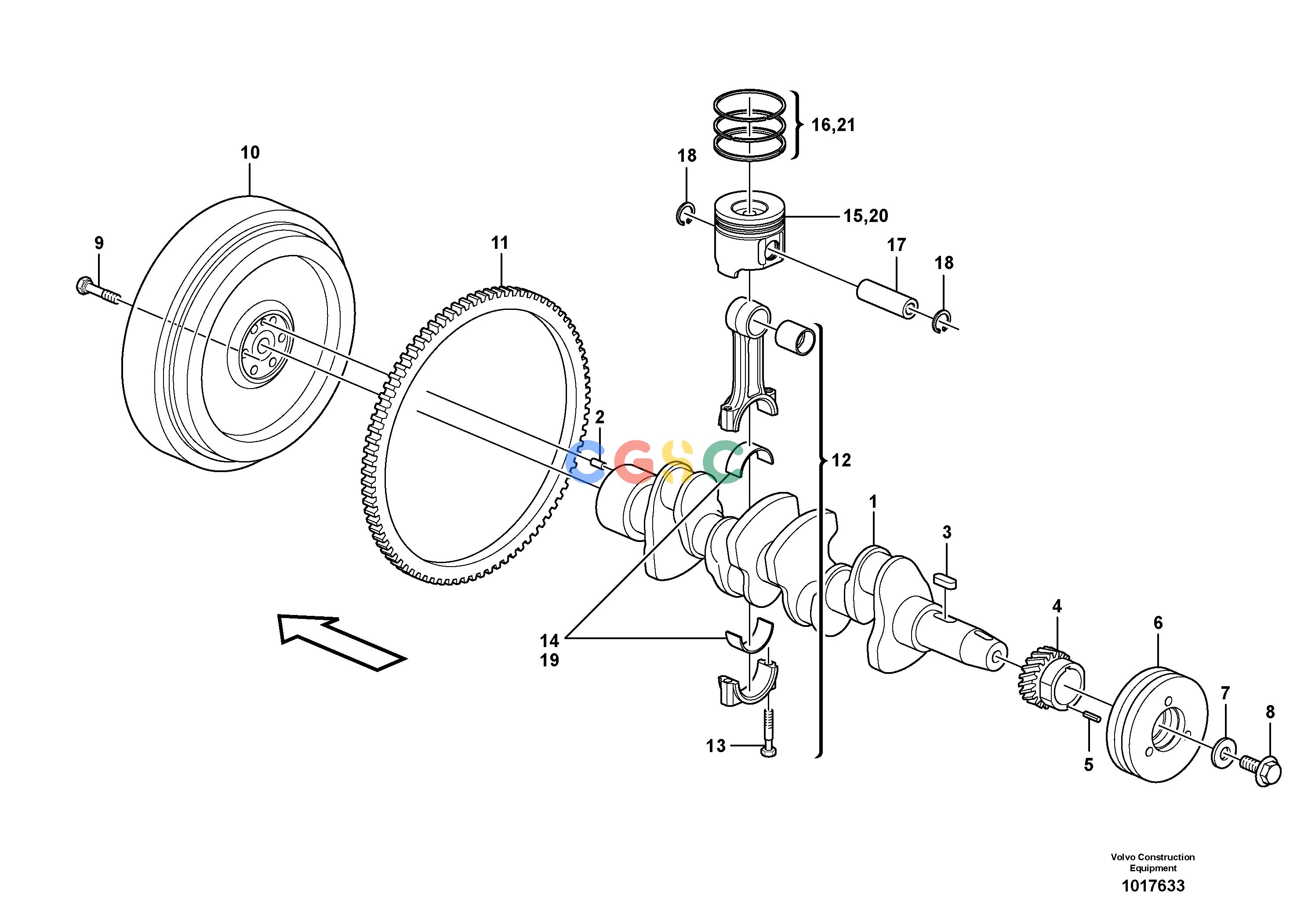

沃尔沃零件查询MC70B Crankshaft and related partsS/N 71000 -11858378-NoneVOE11858378NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
925 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11714354
|
[1] |
Crankshaft
|
|
| 2. |
VOE11714376
|
[1] |
Pin
|
|
| 3. |
VOE11714468
|
[1] |
Key
|
|
| 4. |
VOE11714355
|
[1] |
Gear
|
|
| 5. |
VOE11713687
|
[1] |
Pin
|
|
| 6. |
VOE11714357
|
[1] |
Pulley
|
|
| 7. |
VOE11713689
|
[1] |
Washer
|
|
| 8. |
VOE11713690
|
[1] |
Bolt
|
|
| 9. |
VOE11713431
|
[6] |
Bolt
|
|
| 10. |
VOE11714360
|
[1] |
Flywheel
|
|
| 11. |
VOE11713419
|
[1] |
Starter gear ring
|
|
| 12. |
VOE11713696
|
[4] |
Connecting rod
|
|
| |
VOE11714724
|
[4] |
Bushing
|
|
| 13. |
VOE11713697
|
[8] |
Bolt
|
|
| 14. |
VOE11713698
|
[4] |
Bearing
|
STD SZ
|
| 15. |
VOE11714361
|
[4] |
Piston
|
STD SZ
|
| 16. |
VOE11714362
|
[4] |
Piston
|
STD SZ
|
| 17. |
VOE11713694
|
[4] |
Pin
|
|
| 18. |
VOE11713695
|
[8] |
Snap ring
|
|
| 19. |
VOE11713699
|
[4] |
Bearing
|
0.25 MM O SZ
|
| 20. |
VOE11714389
|
[4] |
Piston
|
0.25 MM O SZ
|
| 21. |
VOE11714390
|
[4] |
Piston ring
|
0.25 MM O SZ
|
