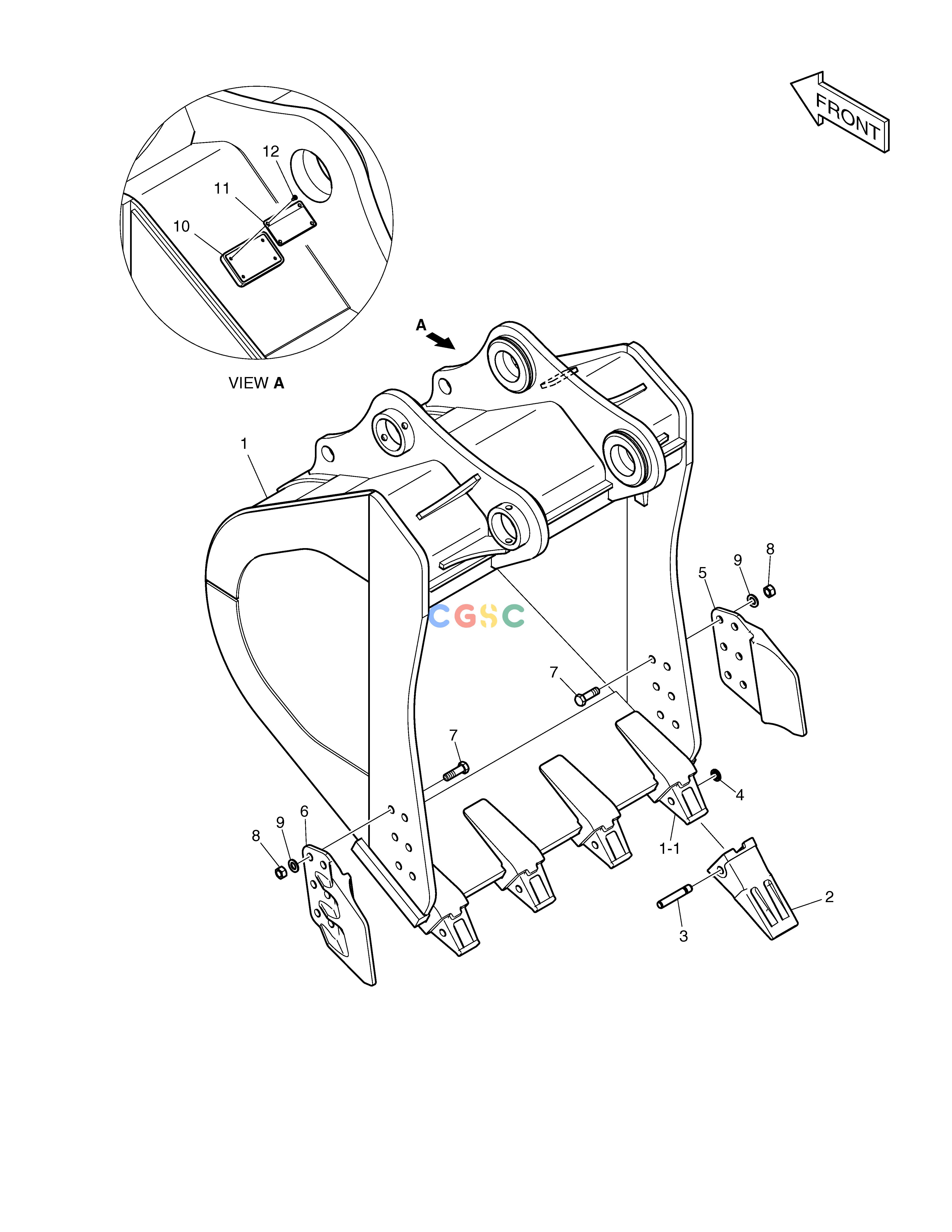

斗山零件查询BUCKET ASS'Y - 1.80m³ DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
206 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230104-00847A
|
[1] |
|
|
| 1. |
230104-00848A
|
[1] |
|
|
| 1-1. |
2713-1273A
|
[4] |
ADAPTER;TOOTH
|
|
| 10. |
110913-00289A
|
[1] |
|
|
| 11. |
950209-04415A
|
[1] |
|
|
| 12. |
DS0501007
|
[4] |
|
|
| 2. |
713-00052A
|
[4] |
POINT;TOOTH
|
|
| 3. |
2705-1034
|
[4] |
PIN;LOCKING
|
|
| 4. |
2114-1931
|
[4] |
WASHER;LOCKING
|
|
| 5. |
2713-1240
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 6. |
2713-1241
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 7. |
S0574961
|
[12] |
BOLT M24X3.0X80
|
|
| 8. |
S4013333
|
[12] |
. NUT
|
|
| 9. |
2114-1831A
|
[12] |
. WASHER
|
|
