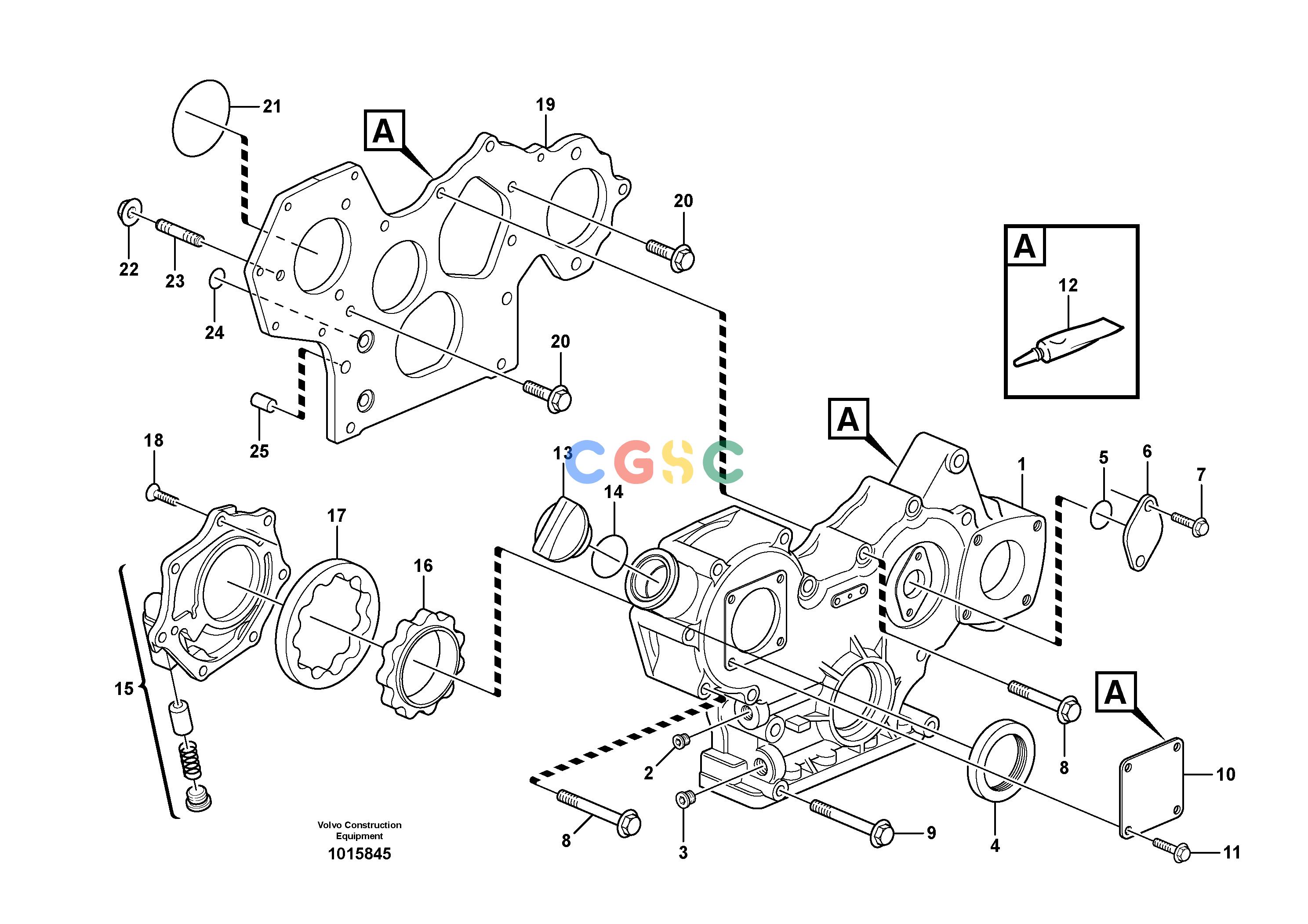

沃尔沃零件查询MC70B Timing gear casing and gearsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
774 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11714259
|
[1] |
Timing gear casing
|
|
| 2. |
VOE14521504
|
[1] |
Plug
|
|
| 3. |
VOE11713615
|
[1] |
Plug
|
|
| 4. |
VOE11713616
|
[1] |
Seal
|
|
| 5. |
VOE11713626
|
[1] |
O-ring
|
|
| 6. |
VOE11713625
|
[1] |
Cover
|
|
| 7. |
VOE11714374
|
[2] |
Bolt
|
|
| 8. |
VOE11714373
|
[11] |
Bolt
|
|
| 9. |
VOE11714271
|
[3] |
Flange screw
|
|
| 10. |
VOE11714370
|
[1] |
Cover
|
|
| 11. |
VOE11714372
|
[4] |
Bolt
|
|
| 12. |
VOE11713514
|
[1] |
Sealant
|
|
| 13. |
VOE11714383
|
[1] |
Cap
|
|
| 14. |
VOE11714371
|
[1] |
O-ring
|
|
| 15. |
VOE11713617
|
[1] |
Oil pump
|
|
| 16. |
VOE11714269
|
[1] |
Sun gear
|
|
| 17. |
VOE11714270
|
[1] |
Ring gear
|
|
| 18. |
VOE11713356
|
[7] |
Screw
|
|
| 19. |
VOE11714265
|
[1] |
Plate
|
|
| 20. |
VOE11714372
|
[3] |
Bolt
|
|
| 21. |
VOE11713305
|
[1] |
O-ring
|
|
| 22. |
VOE14521543
|
[3] |
Nut
|
|
| 23. |
VOE11713619
|
[3] |
Stud
|
|
| 24. |
VOE11713621
|
[4] |
O-ring
|
|
| 25. |
VOE11713620
|
[2] |
Pipe
|
|
