卡特零件查询（725C） 364-2251: FRAME GP-FRONT SUSPENSION
广数供应链运营团队, 14 02月, 2025，浏览：
636 次

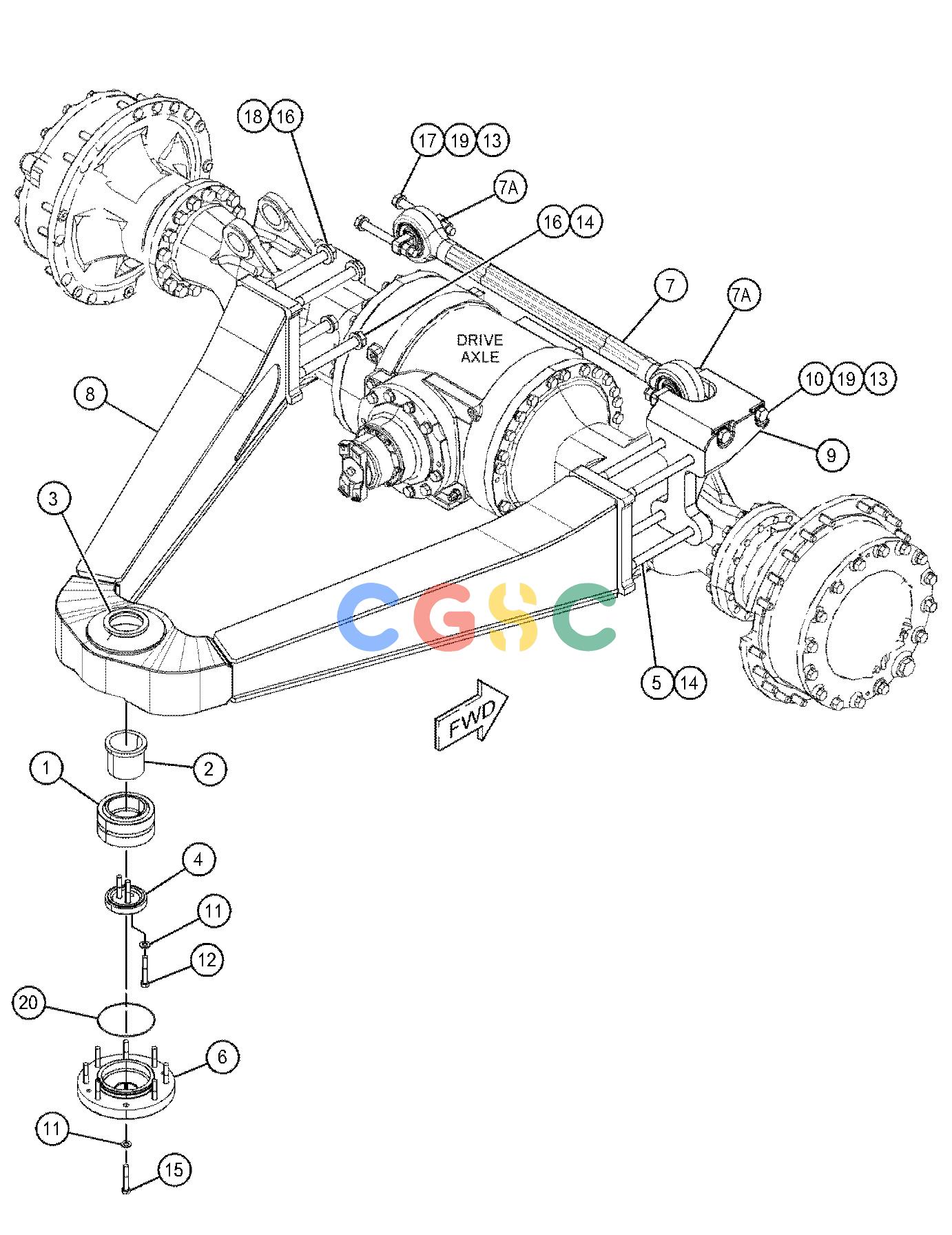

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6Y-4457 | [1] | BEARING-ALIGNING | |
| 2. | 176-7187 | [1] | SLEEVE-TAPERED | |
| 3. | 471-9955 | [1] | SEAL AS | |
| 4. | 198-7316 | [1] | WASHER-SPECIAL | |
| 5. | 121-7897M | [4] | BOLT(M24X3X315-MM) | |
| 6. | 465-1098 | [1] | COLLAR-RETAINING | |
| 7. | | [1] | STABILIZER AS |
| 7A. | 148-5563 | [2] | BEARING-SPHERICAL | |
| 8. | 447-5518 | [1] | FRAME AS-SUSPENSION | |
| 9. | 330-3694 | [1] | CASTING | |
| 10. | 125-3297M | [2] | BOLT(M20X2.5X260-MM) | |
| 11. | 5P-8245 | [11] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 6V-5696M | [3] | BOLT(M12X1.75X80-MM) | |
| 13. | 6V-7742M | [4] | NUT-FULL(M20X2.5-THD) | |
| 14. | 6V-8237 | [6] | WASHER(26X44X4-MM THK) | |
| 15. | 6V-8336M | [8] | BOLT(M12X1.75X70-MM) | |
| 16. | 8T-0367M | [4] | BOLT(M24X3X260-MM) | |
| 17. | 8T-0658M | [2] | BOLT(M20X2.5X180-MM) | |
| 18. | 8T-1482 | [2] | WASHER-HARD(26X50X8-MM THK) | |
| 19. | 8T-3282 | [8] | WASHER-HARD(22X35X3.5-MM THK) | |
| 20. | 242-9575 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
