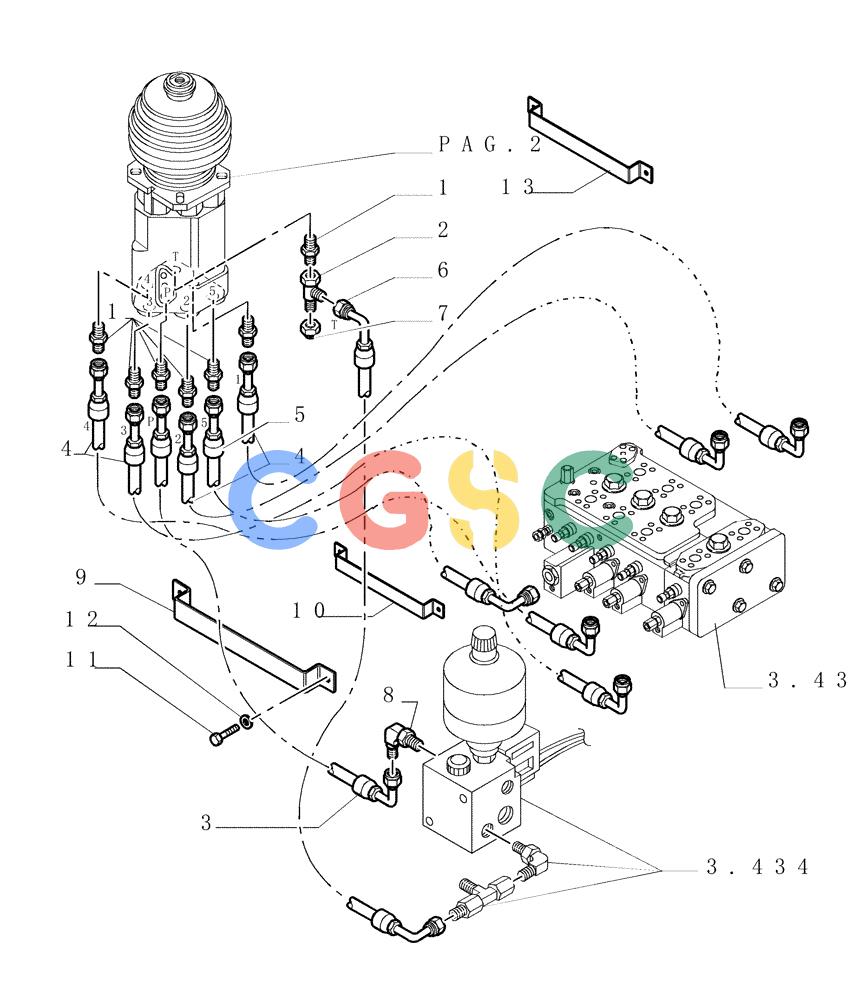

纽荷兰零件查询(DC180LGP) - CRAWLER DOZER (2/01-) (3.437[02A]) - CONTROL VALVE LINKAGE - PIPING - VERSION (02-03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
886 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79095838 | [7] | HYD CONNECTOR | LEC1/4G. 9/16"-18 |
| 2. | 79054269 | [1] | TEE | LEC |
| 3. | 76071038 | [1] | HYDRAULIC HOSE | LECL=2700 |
| 4. | 76035640 | [4] | HYDRAULIC HOSE | LECL=2300 |
| 5. | 76069515 | [1] | HYDRAULIC HOSE | LECL=2000 |
| 6. | 76071037 | [1] | HYDRAULIC HOSE | LECL=2750 |
| 7. | 70919552 | [1] | CAP | BHB9/16" Superseded by part number: 574342 |
| 8. | 79054402 | [1] | ELBOW | LEC Superseded by part number: 76344 |
| 9. | 76071048 | [1] | BRACKET | LEC |
| 10. | 76071050 | [1] | BRACKET | LEC |
| 11. | 10902131 | [6] | SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd | LEC8X1.25X50 |
| 12. | 79011527 | [6] | WASHER,8.6mm ID x 22mm OD x 5mm Thk | LEC |
| 13. | 76071049 | [1] | BRACKET | LEC |
