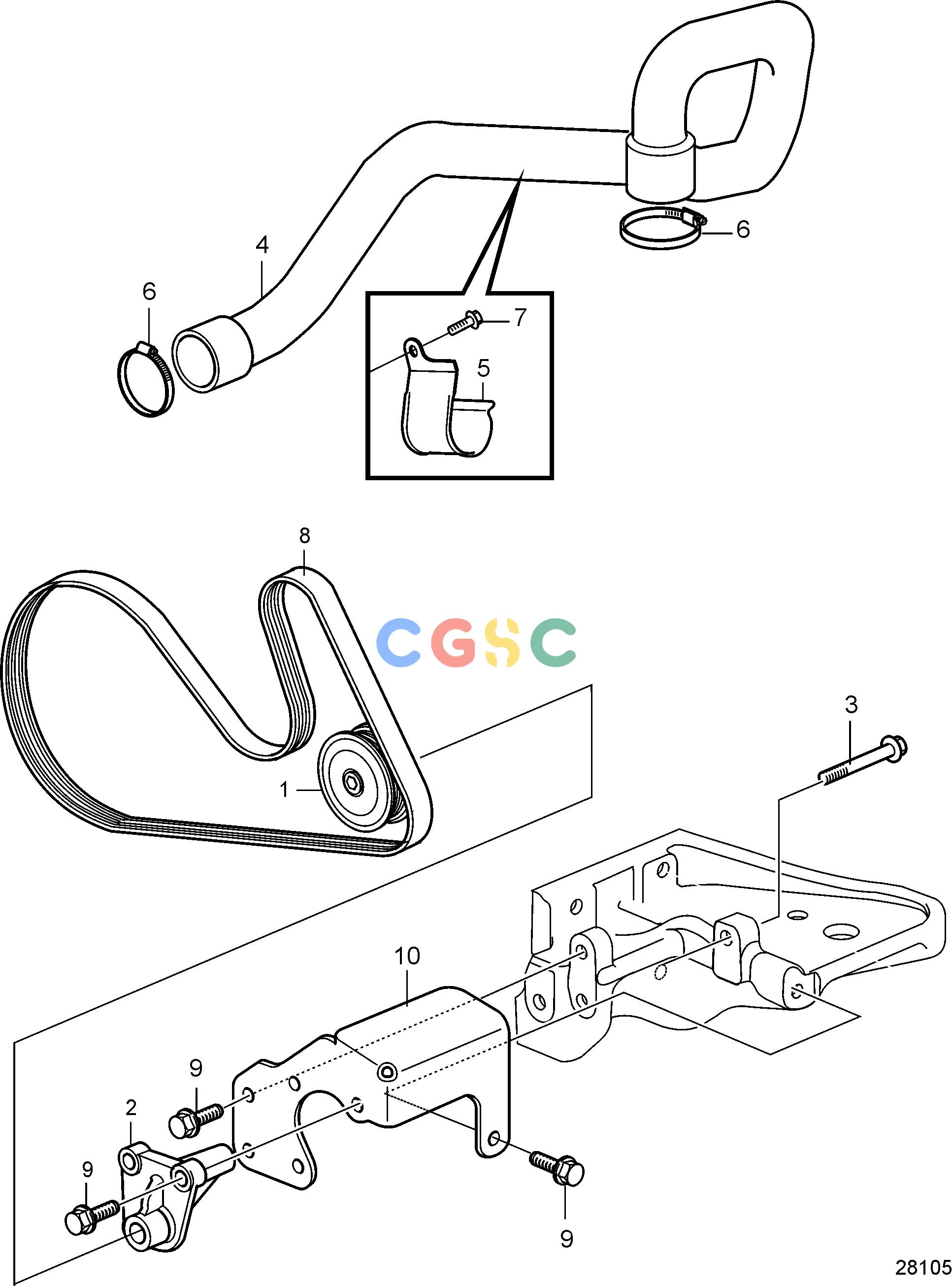

沃尔沃零件查询D3-110I-H; D3-140A-H; D3-140I-H; D3-150I-H; D3-170A-H; D3-170I-H; D3-200A-H; D3-200I-H; D3-220A-H; D3-220I-HSteering SystemPower Steering Pump AdapterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
832 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21134362
|
[1] |
Idler pulley
|
|
| 2. |
21294037
|
[1] |
Adapter
|
|
| 3. |
946671
|
[1] |
Flange screw
|
|
| 4. |
22004801
|
[1] |
Hose
|
Replaced by 22990061
|
| 4. |
22990061
|
[1] |
Hose
|
|
| 5. |
21120627
|
[1] |
Clamp
|
|
| 6. |
22274885
|
[2] |
Hose clamp
|
|
| 7. |
982799
|
[1] |
Flange screw
|
|
| 8. |
22283751
|
[1] |
V-ribbed belt
|
|
| 9. |
946173
|
[6] |
Flange screw
|
|
| 10. |
21248117
|
[1] |
Bracket
|
|
