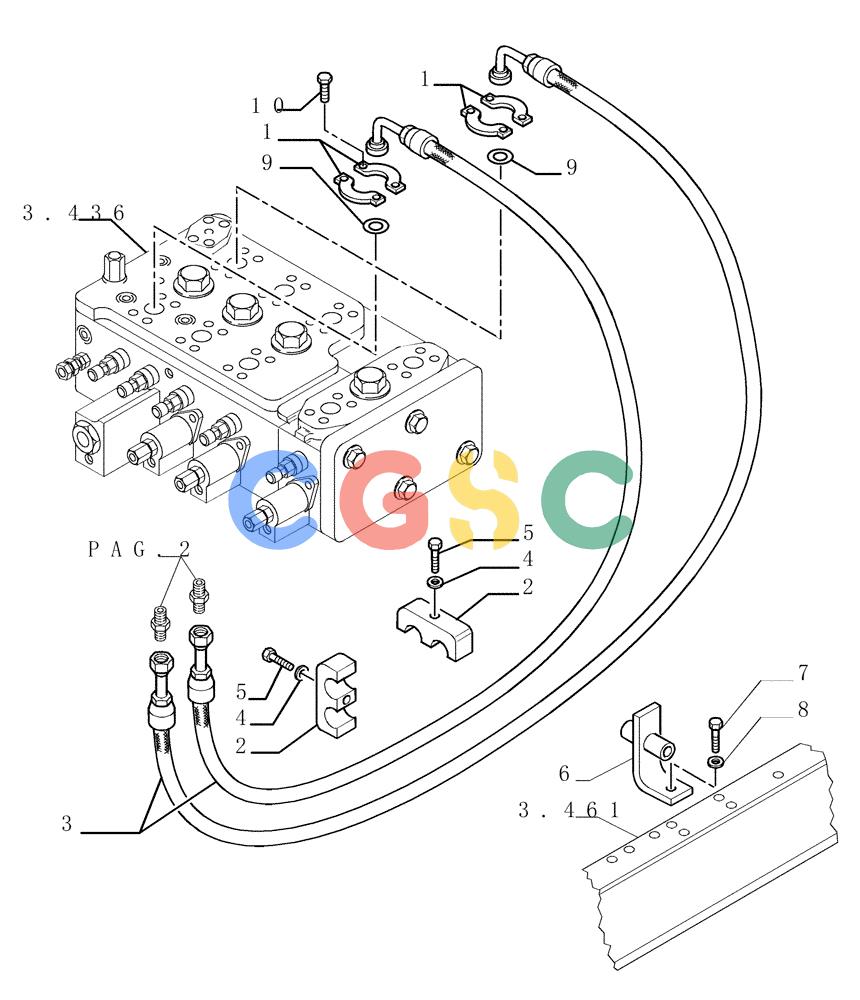

纽荷兰零件查询(DC180LGP) - CRAWLER DOZER (2/01-) (3.440[02]) - LIFT CYLINDERS PIPING - VERSION (02-03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
864 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 71404313 | [4] | CLAMP,Half | LEC1° |
| 2. | 79076680 | [3] | CLAMP | LEC |
| 3. | 76071120 | [2] | HYDRAULIC HOSE | LEC |
| 4. | 12638631 | [3] | WASHER,10.6mm ID x 18mm OD x 2mm Thk | LEC Superseded by part number: 86625251 |
| 5. | 16040831 | [3] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43248 |
| 6. | 76046915 | [2] | BRACKET | LEC |
| 7. | 11112231 | [2] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 8. | 14496731 | [2] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 9. | 14463781 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro | LEC |
| 9. | 70924200 | [2] | O-RING | LEC3,53X32,92 Superseded by part number: 14463780 |
| 10. | 14422231 | [8] | HEX SOC SCREW,M12 x 1.75 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 14422237 |
