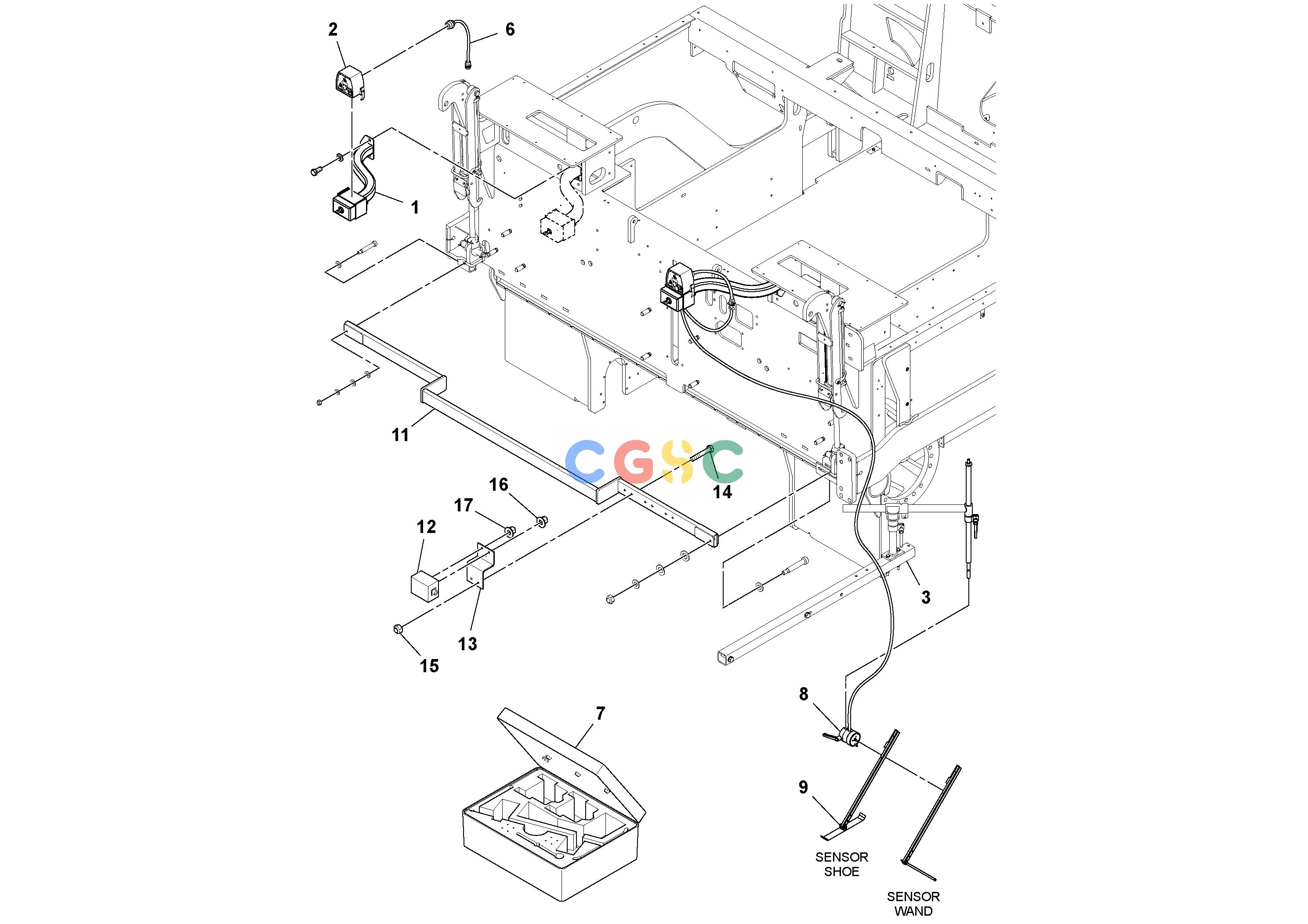

沃尔沃零件查询PAVER CONTROLS Blaw Kontrol InstallationATT. PAVER CONTROLS PF6110, PF6160, PF617013423652_0B01-NoneNoneNoneS/N -200653, 13423652Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
444 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Control Station
|
|
| 3. |
|
[1] |
Edger Guide Sensor
|
|
| 4. |
RM95373973
|
[REQ] |
Locking wire
|
|
| 7. |
RM43938976
|
[1] |
Case
|
|
| 8. |
RM43908698
|
[1] |
Sensor kit
|
|
| 9. |
RM21144134
|
[1] |
Sensor kit
|
|
| 10. |
|
|
None
|
|
| 11. |
|
[1] |
Slope Beam
|
|
| 12. |
RM43901347
|
[1] |
Sensor
|
|
| 15. |
VOE983313
|
[2] |
Lock nut
|
|
| 16. |
RM95922233
|
[3] |
Washer
|
|
| 25. |
|
|
None
|
|
| 26. |
|
|
None
|
|
| 27. |
|
|
None
|
|
