卡特零件查询（725C） 160-8009: BRAKE GP-PARKING
广数供应链运营团队, 14 02月, 2025，浏览：
900 次

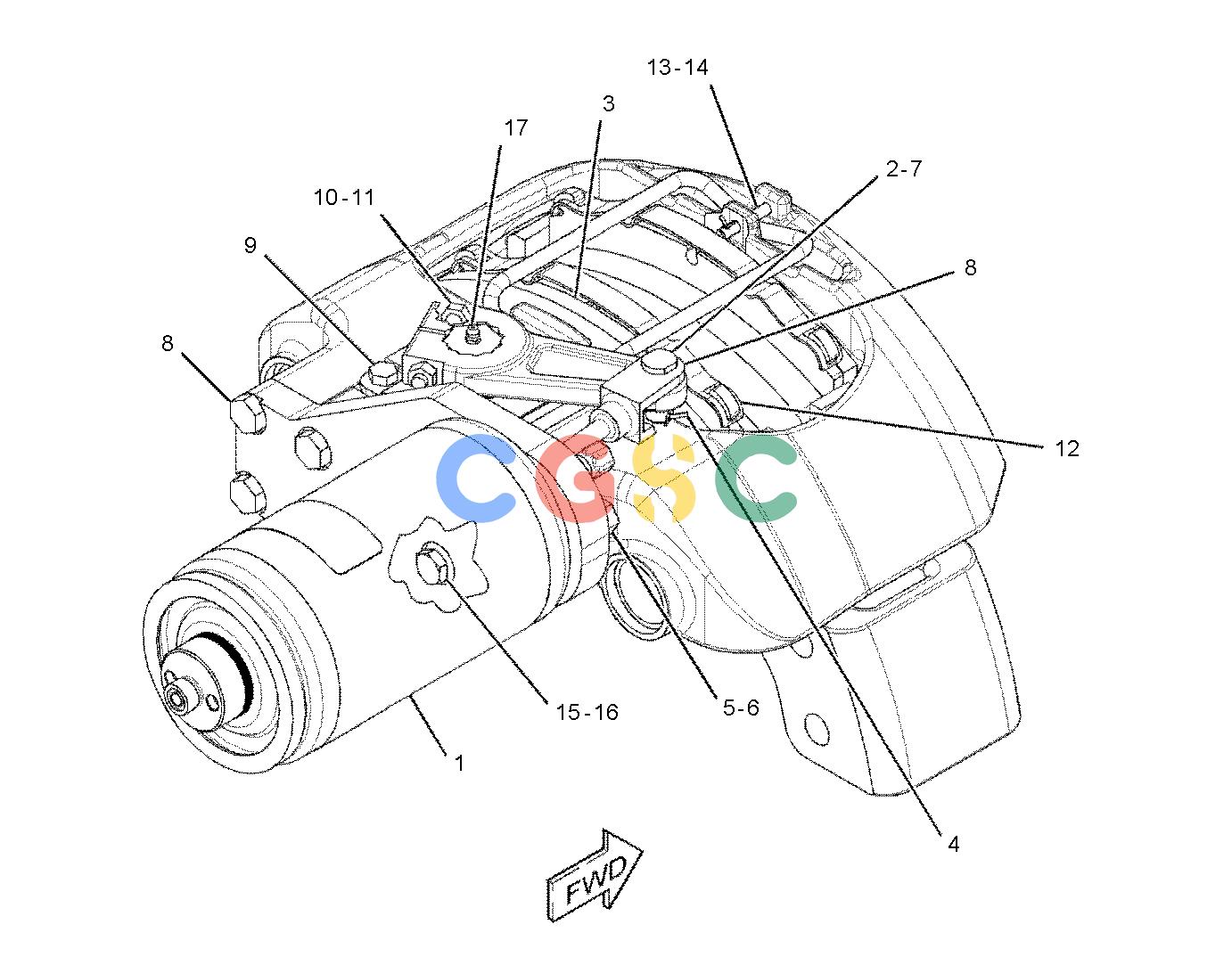

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 206-0408 | [1] | ACTUATOR AS-PARKING BRAKE | |
| | 154-8042 | [1] | ACTUATOR(PARKING BRAKE) | |
| | 206-0407 | [1] | BOOT | |
| 2. | 172-3931W | [1] | PIN | |
| 3. | 172-3932 | [2] | SPACER | |
| 4. | 3B-4610W | [1] | PIN-COTTER | |
| 5. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 7. | 346-0331 | [1] | END-YOKE ROD | |
| 8. | 8C-8992PM | [6] | BOLT-LOCKING(M12X1.75X30-MM) | |
| 9. | 8T-5091UVM | [2] | BOLT(M8X1.25X20-MM) | |
| 10. | 8T-6869UVWM | [1] | BOLT(M8X1.25X60-MM) | |
| 11. | 5C-7261UVWM | [1] | NUT(M8X1.25-THD) | |
| 12. | 172-3934J | [2] | SPRING | |
| 13. | 6C-8608JTUV | [1] | PIN | |
| 14. | 3B-4607JUV | [1] | PIN-COTTER | |
| 15. | 172-3935JPTU | [1] | PLUG | |
| 16. | 4W-9026JPTU | [1] | GASKET | |
| 17. | 6V-1506U | [1] | FITTING-GREASE | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 279-9438P | [1] | KIT-ADJUSTER | |
| | | | (ALSO INCLUDES GEARS, BOX, RINGS, SPRING & SCREW) |
| | 279-9439 | [1] | KIT-SLEEVE | |
| | | | (INCLUDES BOLTS, PLATE, PINS, SEALS, PISTONS, SLEEVE ADJUSTERS, BLOCK, BEARING, RINGS, GEARS & CAP) |
| | 279-9440T | [1] | KIT-PIN | |
| | | | (ALSO INCLUDES BOLTS, PINS, SEALS, COTTER, CAPS & BUSHINGS) |
| | 279-9441U | | KIT-SHAFT | |
| | | | (ALSO INCLUDES SHIELD, PLATE, BEARINGS, SEALS, WASHER, SHAFT & GASKETS) |
| | 279-9442V | [1] | KIT-BAR | |
| | | | (ALSO INCLUDES GASKET) |
| | 279-9444J | [1] | KIT-BRAKE LINING | |
| | | | (ALSO INCLUDES BRAKE SHOE AS) |
| | 279-9674 | [1] | KIT-SEAL | |
| | | | (INCLUDES SEALS, BOLTS & CAP) |
| | 345-8544 | [1] | KIT-BRAKE SADDLE | |
| | | | (INCLUDES SADDLE, CAPS & BOLTS) |
| | 342-9202 | [1] | KIT-BEARING | |
| | | | (INCLUDES BEARINGS) |
| | 267-3540W | [1] | KIT-LEVER | |
| | | | (ALSO INCLUDES BEARING) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | U | | KIT MARKED U SERVICES PART(S) MARKED U |
| | V | | KIT MARKED V SERVICES PART(S) MARKED V |
| | W | | KIT MARKED W SERVICES PART(S) MARKED W |
