沃尔沃零件查询PL3005D EngineS/N 210001-210071, 280001- NoneNone8291930Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
802 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |

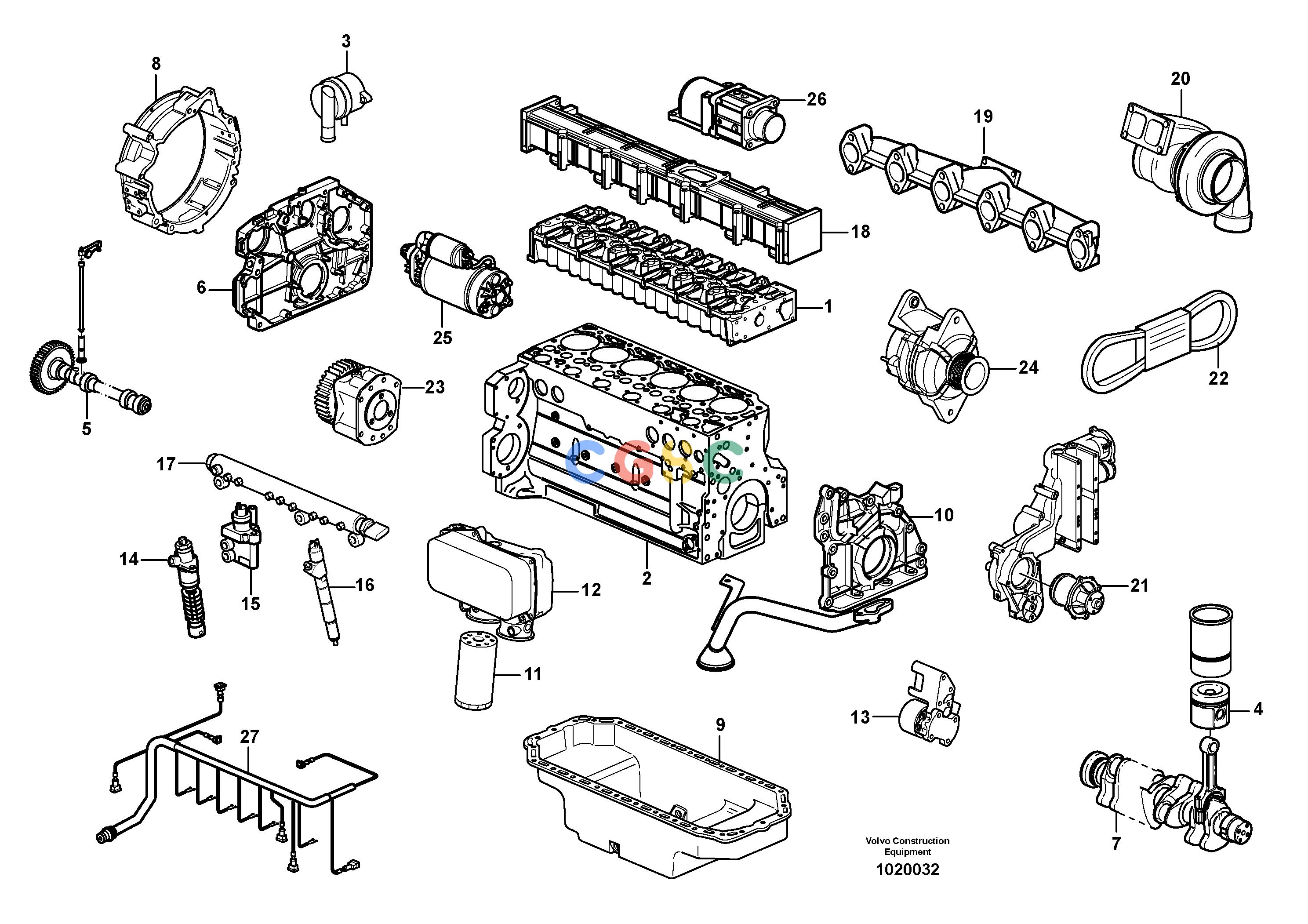

VOE17213165
|
|
Engine
|
|
| 1. |
|
[1] |
Cylinder head
|
|
| 2. |
|
[1] |
Cylinder block
|
|
| 3. |
|
[1] |
Crankcase ventilation
|
|
| 4. |
|
[6] |
Piston
|
|
| 5. |
|
[1] |
Valve mechanism
|
|
| 6. |
|
[1] |
Timing gear casing
|
|
| 7. |
|
[1] |
Crankshaft
|
|
| 8. |
|
[1] |
Flywheel Hsg
|
|
| 9. |
|
[1] |
Oil sump
|
|
| 10. |
|
[1] |
Lubricating system
|
|
| 11. |
|
[1] |
Oil filter
|
|
| 12. |
|
[1] |
Oil cooler
|
|
| 13. |
|
[1] |
Fuel pump
|
|
| 14. |
|
[2] |
Injcection pump
|
|
| 15. |
|
[1] |
Regulator
|
|
| 16. |
|
[6] |
Injector
|
|
| 17. |
|
[1] |
Rail
|
|
| 18. |
|
[1] |
Inlet pipe
|
|
| 19. |
|
[1] |
Exhaust pipe
|
|
| 20. |
|
[1] |
Turbocharger
|
|
| 21. |
|
[1] |
Coolant Pump
|
|
| 22. |
|
[1] |
V-belt
|
|
| 23. |
|
[1] |
Pump drive
|
|
| 24. |
|
[1] |
Alternator
|
|
| 25. |
|
[1] |
Starter motor
|
|
| 26. |
|
[1] |
Pre-heater
|
|
| 27. |
|
[1] |
Cable harness
|
|
