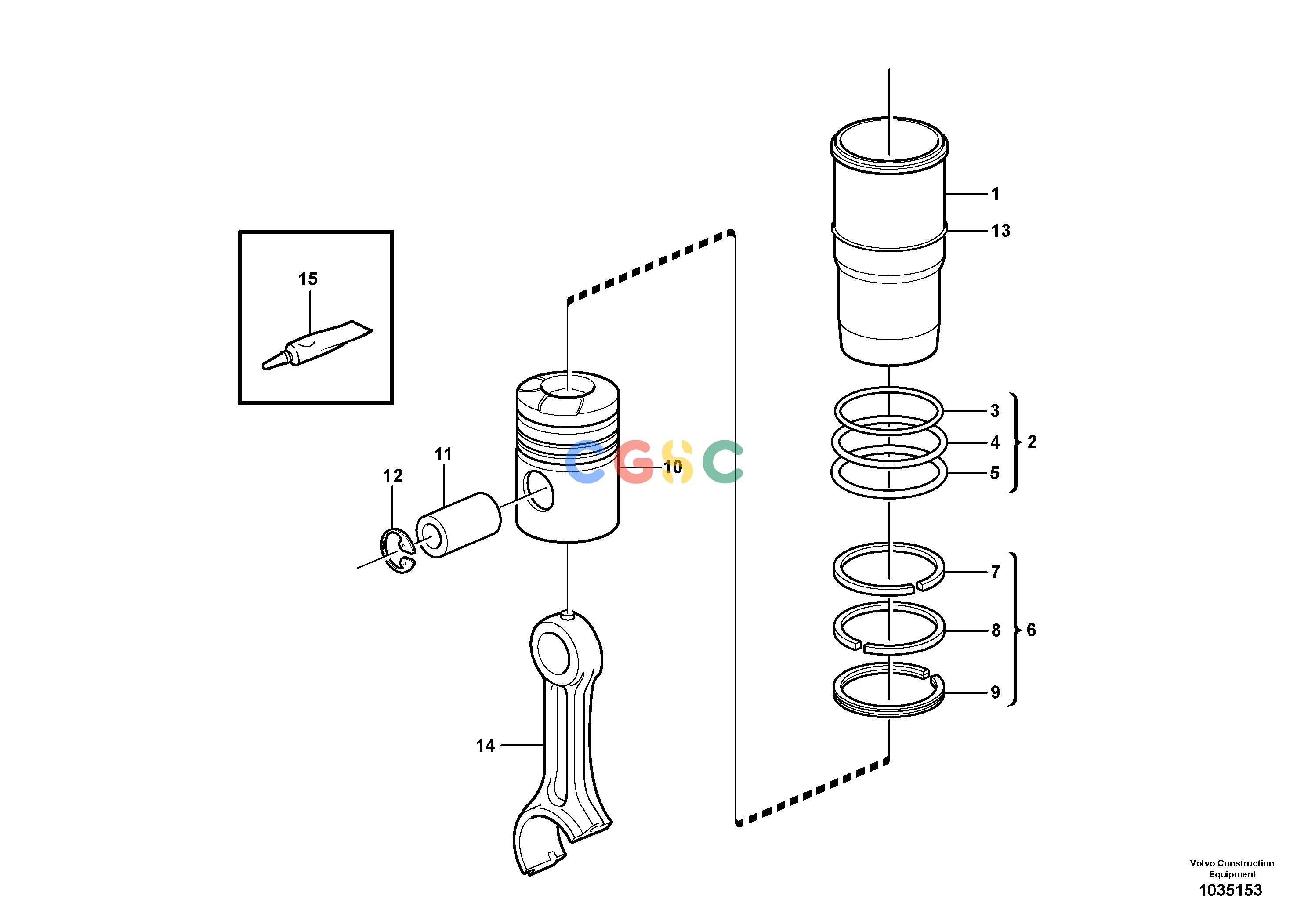

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE20820358
|
[6] |
Cylinder
|
|
| 1. |
VOE20451502
|
[6] |
Cylinder liner
|
|
| 2. |
VOE270950
|
[6] |
Sealing kit
|
|
| 3. |
VOE470922
|
[6] |
Sealing ring
|
UPPER
|
| 4. |
VOE470190
|
[12] |
Sealing ring
|
|
| 5. |
VOE270950
|
[6] |
Sealing kit
|
LOW
|
| 6. |
VOE20820363
|
[6] |
Piston ring kit
|
|
| 7. |
VOE20411224
|
[6] |
Compression ring
|
UPPER
|
| 8. |
VOE20576259
|
[6] |
Compression ring
|
LOW
|
| 9. |
VOE20505156
|
[6] |
Oil scraper ring
|
|
| 10. |
VOE20482587
|
[6] |
Piston
|
|
| 11. |
VOE3155115
|
[6] |
Gudgeon pin
|
|
| 12. |
VOE914530
|
[12] |
Retaining ring
|
|
| 13. |
VOE1677591
|
[REQ] |
Shim
|
THICK = 0,2 MM
|
| 13. |
VOE1677592
|
[REQ] |
Shim
|
THICK = 0,3 MM
|
| 13. |
VOE1677593
|
[REQ] |
Shim
|
THICK = 0,5 MM
|
| 14. |
|
[6] |
Connecting rod
|
|
| 15. |
VOE1161277
|
[1] |
Sealant
|
20 GRAM
|
