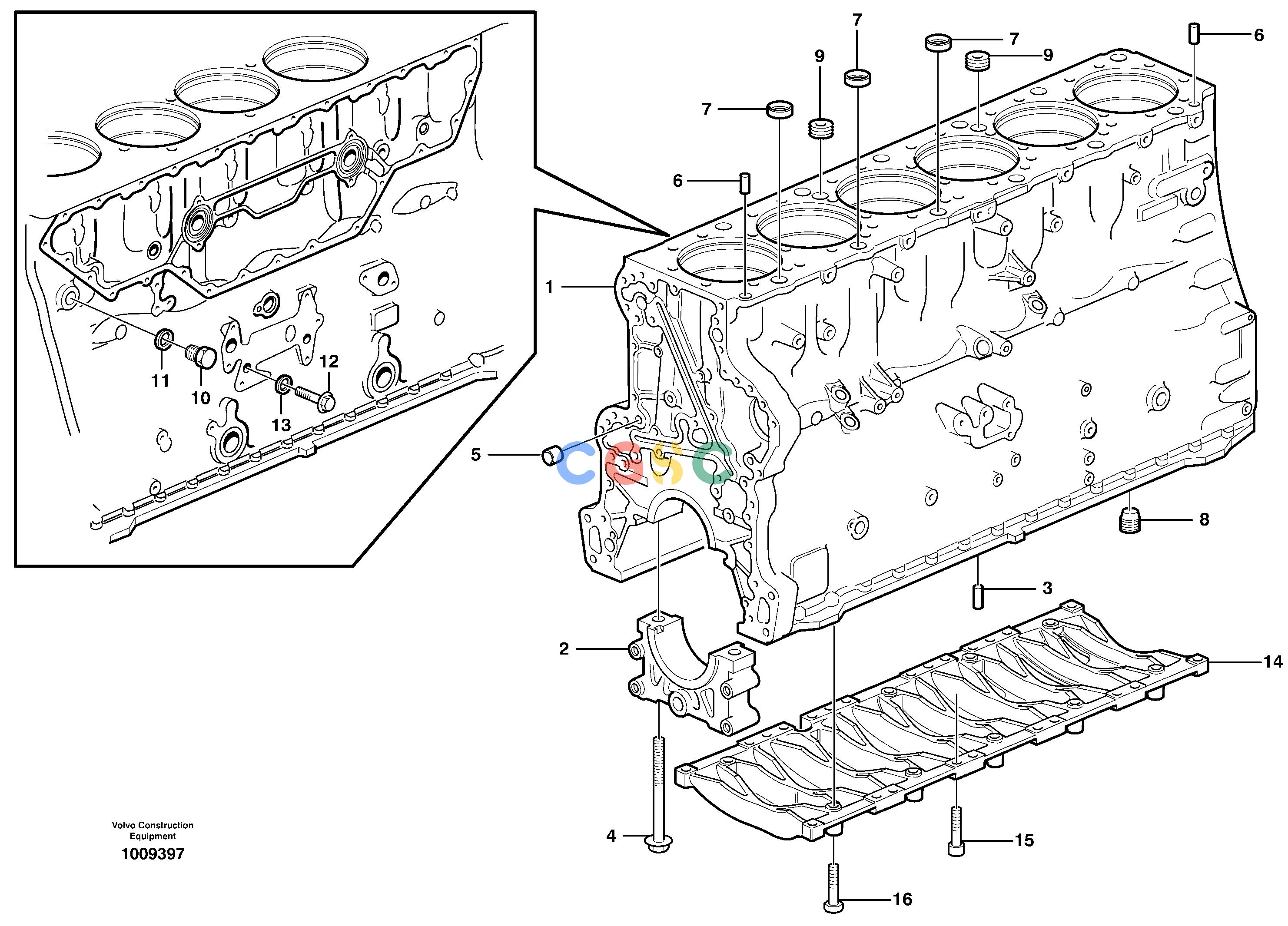

沃尔沃零件查询PL4611 Cylinder blockNone8279675-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
420 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE8130120
|
[1] |
Cylinder block
|
|
| 1. |
VOE8130121
|
[1] |
Cylinder Block
|
|
| 2. |
|
[7] |
Cap
|
|
| 3. |
VOE422426
|
[1] |
Pin
|
|
| 4. |
VOE21345129
|
[14] |
Flange screw
|
|
| 5. |
VOE981735
|
[3] |
Cap plug
|
|
| 6. |
VOE8170389
|
[4] |
Guide sleeve
|
|
| 7. |
|
[3] |
Rstr Washer
|
|
| 8. |
VOE8170666
|
[1] |
Plug
|
|
| 9. |
|
[2] |
Plug
|
|
| 10. |
VOE13960634
|
[1] |
Plug
|
|
| 11. |
VOE13947627
|
[1] |
Plane gasket
|
|
| 12. |
VOE946440
|
[1] |
Flange screw
|
|
| 13. |
VOE7011992
|
[1] |
Gasket
|
|
| 14. |
VOE3183414
|
[1] |
Frame
|
|
| 15. |
VOE973523
|
[20] |
Hex. socket screw
|
|
| 16. |
VOE13965187
|
[6] |
Screw
|
|
