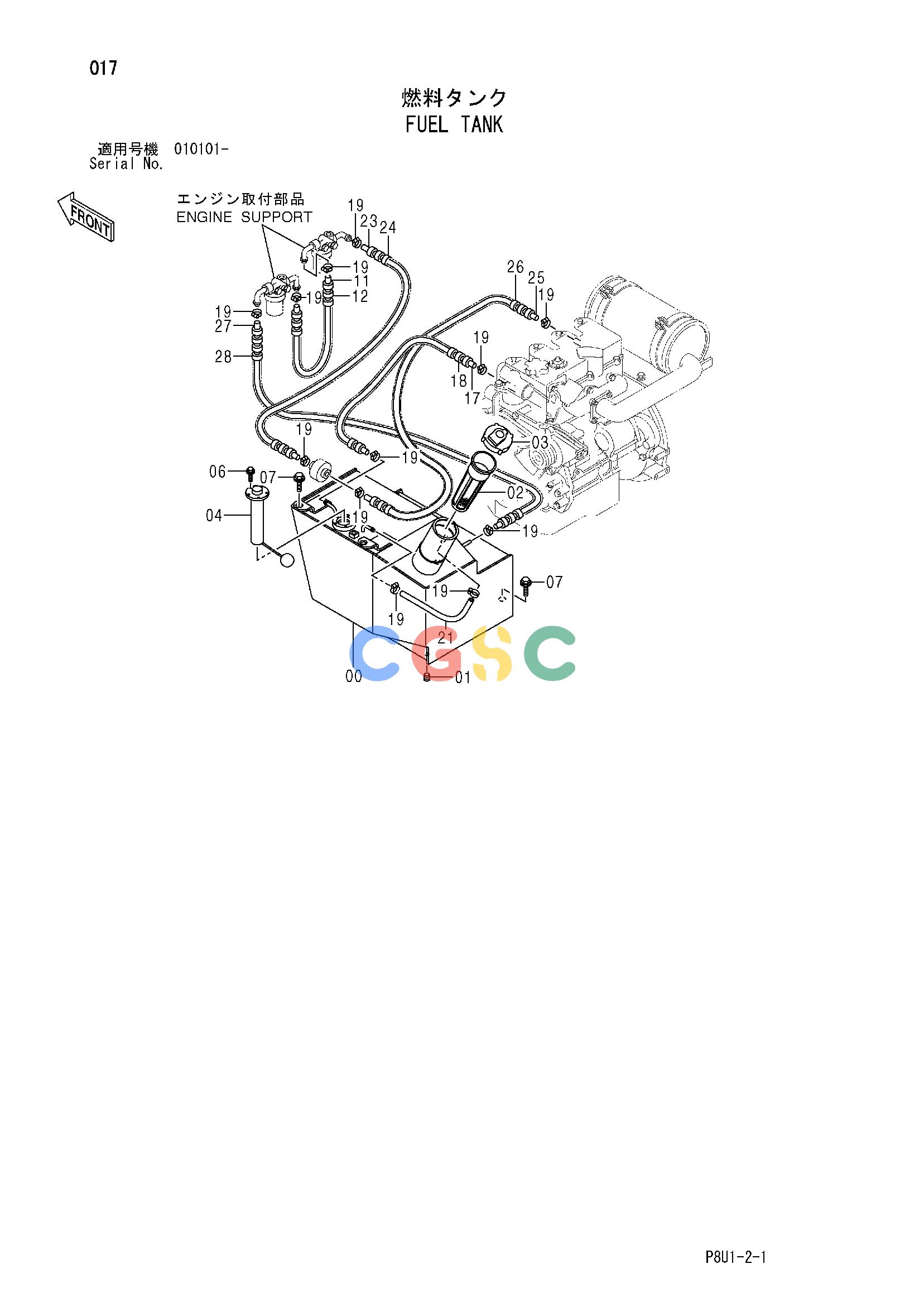

日立零件查询（CC135C）FUEL TANK Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
375 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425910 | [1] | TANK;FUEL | |
| 01. | 439172 | [1] | PLUG | |
| 02. | 425493 | [1] | FILTER | |
| 03. | 425510 | [1] | CAP | |
| 04. | 425600 | [1] | FLOAT | |
| 06. | 947819 | [5] | SCREW;SEMS | |
| 07. | 425550 | [4] | BOLT;SEMS | |
| 11. | 425465 | [1] | HOSE;FUEL | |
| 12. | 425466 | [1] | TUBE | |
| 17. | 425465 | [1] | HOSE;FUEL | |
| 18. | 425466 | [1] | TUBE | |
| 19. | 424172 | [12] | CLIP;HOSE | |
| 21. | 425465 | [1] | HOSE;FUEL | |
| 23. | 425466 | [1] | TUBE;CORRUGATED | |
| 24. | 425465 | [1] | HOSE;FUEL | |
| 25. | 425465 | [1] | HOSE;FUEL | |
| 26. | 425466 | [1] | TUBE;CORRUGATED | |
| 27. | 425465 | [1] | HOSE;FUEL | |
| 28. | 425466 | [1] | TUBE | |
