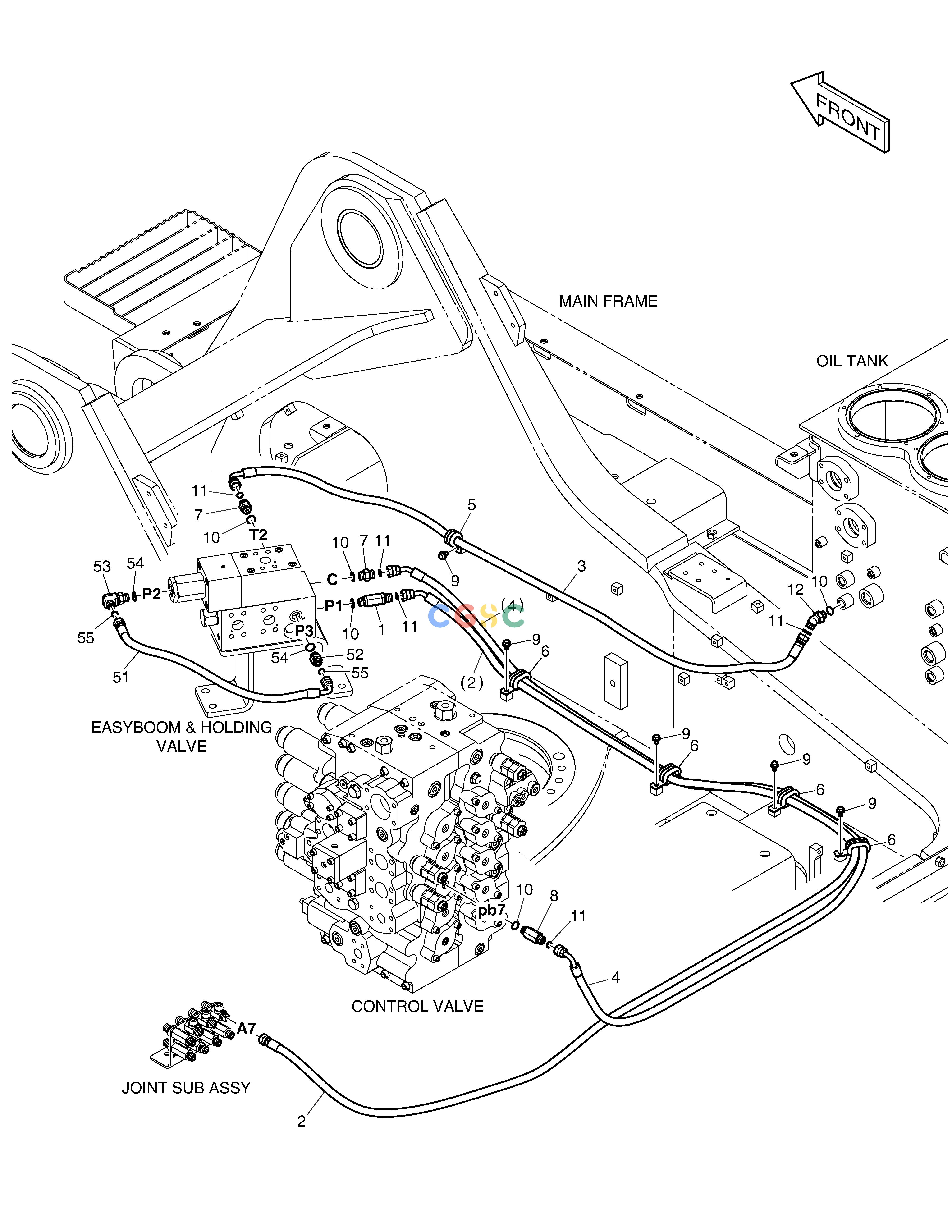

斗山零件查询PILOT PIPING - BOOM FLOATING DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
170 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08202
|
[-] |
|
|
| 1. |
410133-00004D2
|
[1] |
|
|
| 10. |
S8000141
|
[5] |
O-RING
|
|
| 11. |
S8030061
|
[5] |
O-RING
|
|
| 12. |
2181-2816D5
|
[1] |
ELBOW
|
|
| 2. |
DS2120143
|
[1] |
|
|
| 3. |
DS2121302
|
[1] |
|
|
| 4. |
DS2122122
|
[1] |
|
|
| 5. |
124-00208D2
|
[1] |
CLAMP
|
|
| 51. |
DS2143036
|
[1] |
|
|
| 52. |
DS2232038
|
[1] |
ADAPTER
|
|
| 53. |
2181-2815D9
|
[1] |
ELBOW
|
|
| 54. |
S8000141
|
[2] |
O-RING
|
|
| 55. |
S8030061
|
[2] |
O-RING
|
|
| 6. |
124-00209D1
|
[4] |
CLIP
|
|
| 7. |
DS2232038
|
[2] |
ADAPTER
|
|
| 8. |
DS2232085
|
[1] |
ADAPTER
|
|
| 9. |
K1001029
|
[5] |
BOLT
|
|
