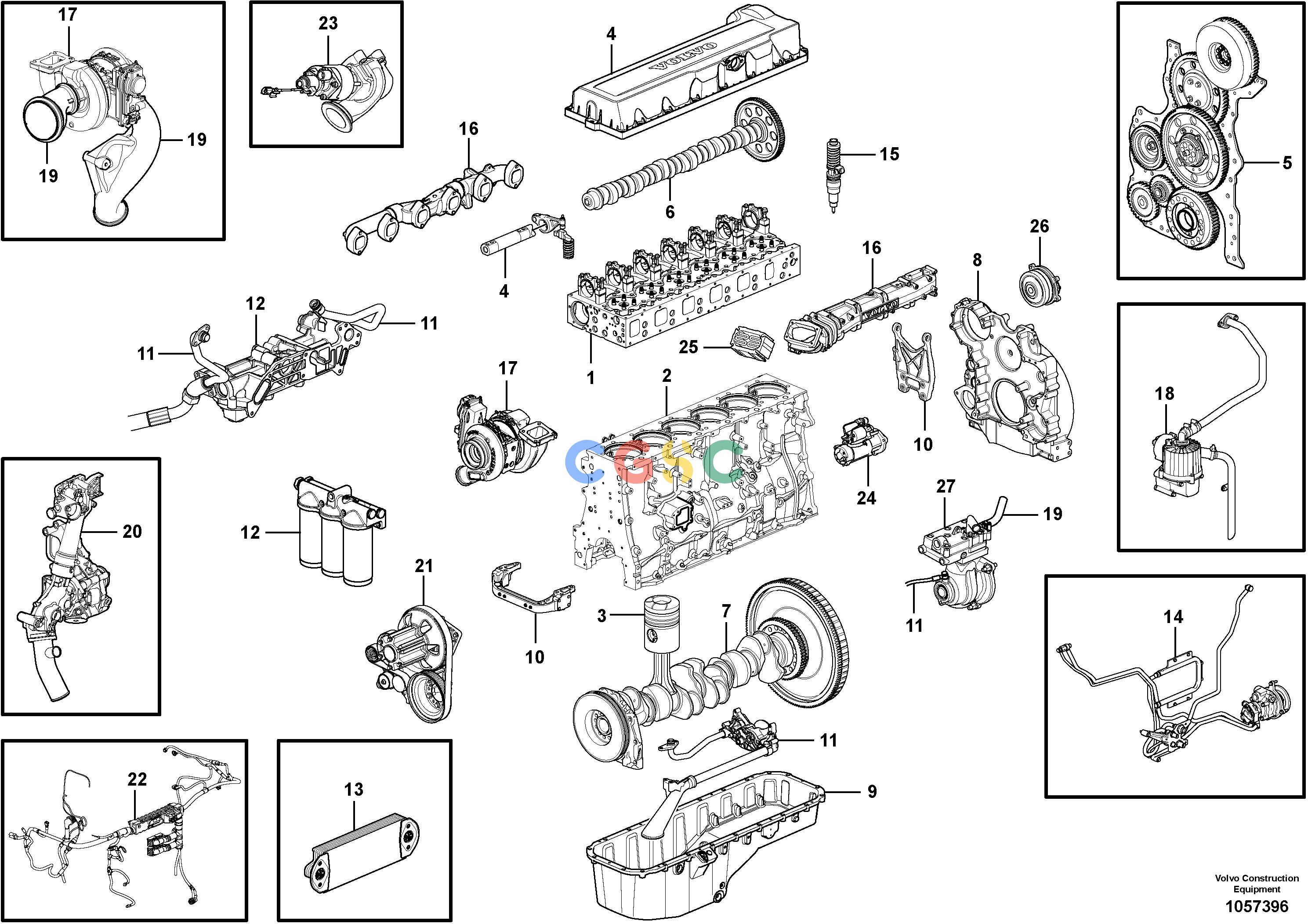

沃尔沃零件查询PL4809D EngineS/N 210001-210026, 280001-8288863, 8290446-8290247VOE8288863NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
511 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE15173113
|
[1] |
Engine
|
D13, Tier4i
|
| |
VOE17216264
|
|
Engine
|
D13F, Tier3
ENG - 513053
|
| |
VOE17441803
|
|
Engine
|
D13F, Tier3
ENG 513054 -
|
| |
|
|
None
|
|
| 1. |
|
[1] |
Cylinder head
|
|
| 1. |
|
|
Cylinder head
|
|
| 2. |
|
[1] |
Cylinder block
|
|
| 3. |
|
[6] |
Cylinder liner,piston
|
|
| 3. |
|
|
Cylinder liner,piston
|
|
| 4. |
|
[1] |
Valve mechanism
|
|
| 4. |
|
|
Valve mechanism
|
|
| 5. |
|
[1] |
Timing gear casing
|
|
| 6. |
|
[1] |
Camshaft
|
|
| 7. |
|
[1] |
Crankshaft
|
|
| 8. |
|
[1] |
Flywheel Hsg
|
|
| 8. |
|
|
Flywheel Hsg
|
|
| 9. |
|
[1] |
Oil sump
|
|
| 10. |
|
[1] |
Engine mounting
|
|
| 11. |
|
[1] |
Lubricating system
|
|
| 12. |
|
[1] |
Oil filter
|
|
| 13. |
|
[1] |
Oil cooler
|
|
| 14. |
|
[1] |
Fuel system
|
|
| 15. |
|
[1] |
Injector
|
|
| 15. |
|
|
Injector
|
|
| 16. |
|
[1] |
Inlet, exhaust syst.
|
|
| 16. |
|
|
Inlet, exhaust syst.
|
|
| 17. |
|
[1] |
Turbocharger
|
|
| 17. |
|
|
Turbocharger
|
|
| 18. |
|
[1] |
Crankcase Venti
|
|
| 18. |
|
|
Crankcase Venti
|
|
| 19. |
|
[1] |
Chg Air Cooler
|
|
| 19. |
|
|
Chg Air Cooler
|
|
| 20. |
|
[1] |
Cooling System
|
|
| 20. |
|
|
Cooling System
|
|
| 21. |
|
[1] |
Belt transmission
|
|
| 22. |
|
[1] |
Cable harness
|
|
| 22. |
|
|
Cable harness
|
|
| 23. |
|
[1] |
EGR valve
|
|
| 24. |
|
[1] |
Starter Motor
|
|
| 25. |
|
[1] |
Starter Element
|
|
| 26. |
|
[1] |
Bearing Housing
|
|
| 27. |
|
[1] |
Compressor
|
|
