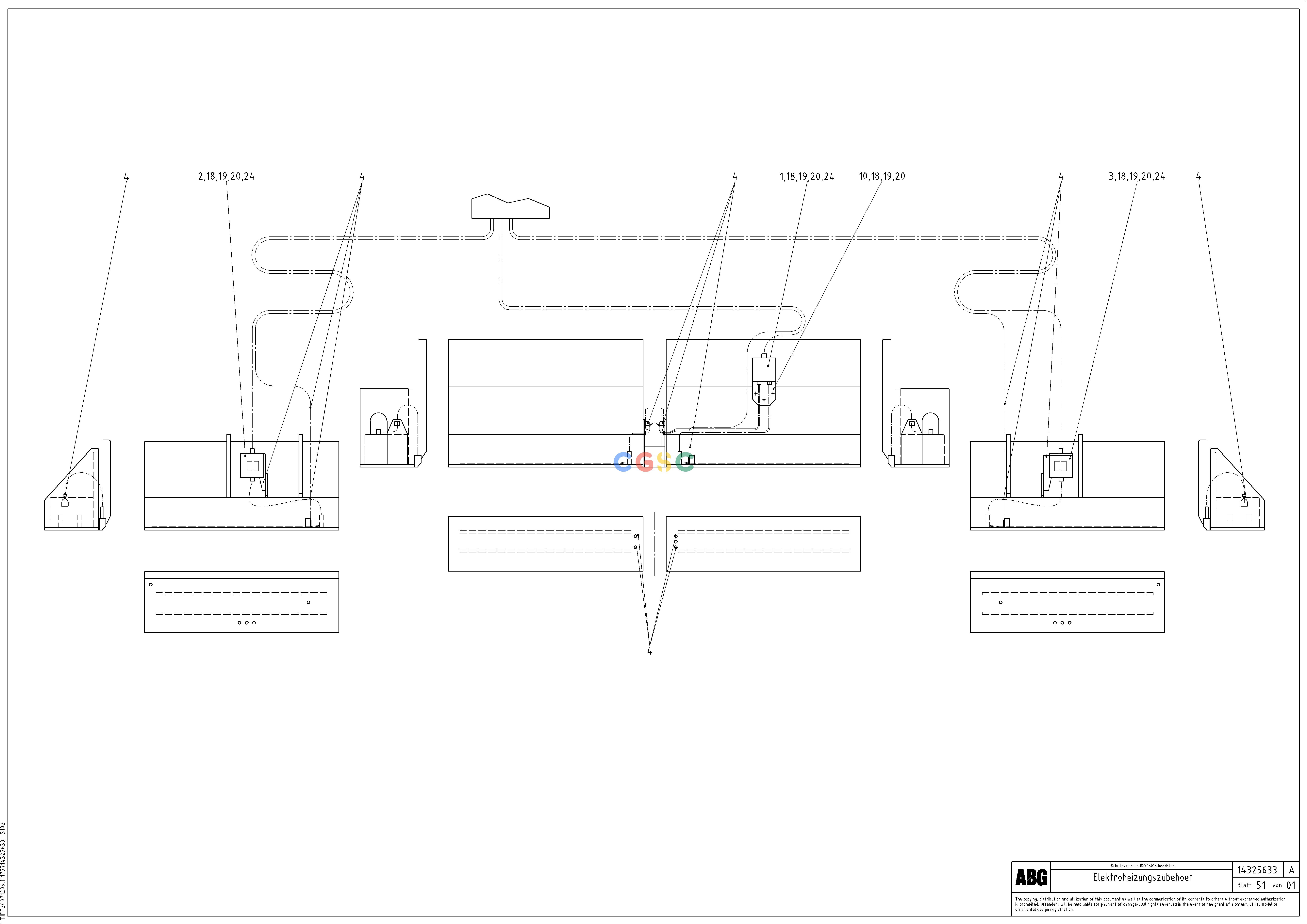

沃尔沃零件查询VDT-V 88 ETC Electrical heating accessories for basic and extendable screedVDT-V 88 ETC 3,0 - 9,0M ABG982014325633-NoneNoneNoneS/N 51 - 18771Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
894 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM54636253
|
[1] |
Distribution box
|
|
| 2. |
RM54636246
|
[1] |
Distribution box
|
LH
|
| 3. |
RM54636238
|
[1] |
Distribution box
|
RH
|
| 4. |
RM87906251
|
[1] |
Heater unit
|
S/N 12067 -
|
| 10. |
RM54414123
|
[1] |
Plate
|
|
| 18. |
RM96705587
|
[15] |
Hexagon screw
|
|
| 19. |
RM58854316
|
[15] |
Lock washer
|
|
| 20. |
RM58833898
|
[15] |
Jam nut
|
|
| 24. |
RM87906228
|
[12] |
Tube insulation
|
S/N 12105 -
|
