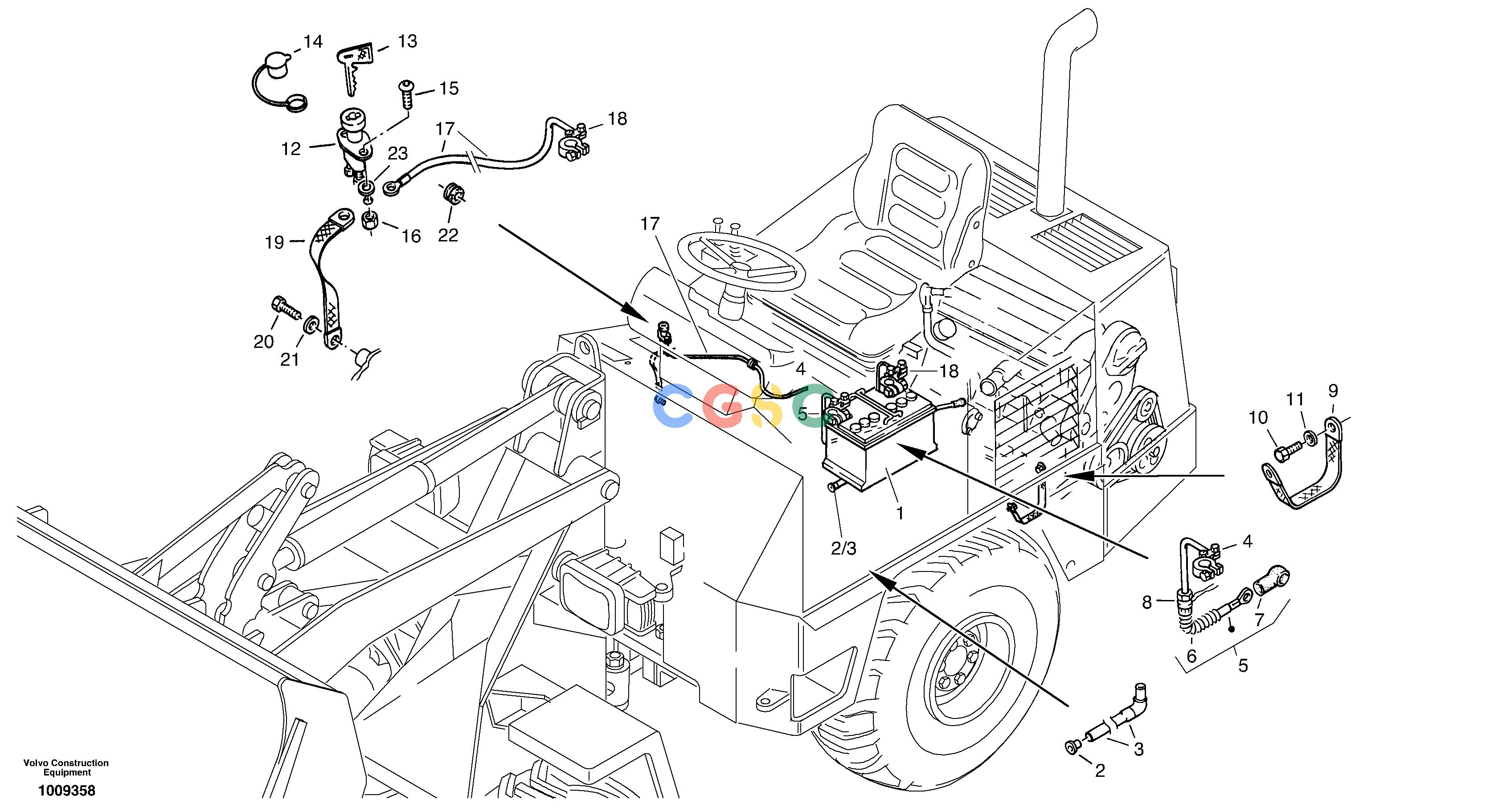

沃尔沃零件查询ZL302C BatterySER NO 2404001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
456 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11306682
|
[1] |
Battery
|
|
| 2. |
ZM2800468
|
[1] |
Plug
|
|
| 3. |
ZM2800467
|
[1] |
Hose
|
|
| 4. |
ZM7057794
|
[1] |
Clamp
|
A
|
| 5. |
ZM2804809
|
[1] |
Electric wire
|
|
| 6. |
ZM2805590
|
[1] |
Hose
|
|
| 7. |
ZM1114550
|
[1] |
Cap
|
|
| 8. |
VOE11305878
|
[2] |
Grommet
|
|
| 9. |
ZM2041410
|
[1] |
Ground cable
|
|
| 10. |
VOE13970944
|
[2] |
Hexagon screw
|
M10x16
|
| 11. |
VOE11307559
|
[2] |
Washer
|
B10,5
|
| 12. |
ZM4373342
|
[1] |
Main Switch
|
|
| 13. |
ZM5242985
|
[1] |
Key
|
|
| 14. |
ZM4373246
|
[1] |
Ptct Capping
|
|
| 15. |
ZM2804624
|
[2] |
Screw
|
ULF M6x20
|
| 16. |
ZM7098000
|
[2] |
Nut
|
M6
|
| 17. |
ZM2804810
|
[1] |
Electric wire
|
|
| 18. |
ZM7050250
|
[1] |
Clamp
|
D
|
| 19. |
ZM5175008
|
[1] |
Ground cable
|
|
| 20. |
VOE13970944
|
[1] |
Hexagon screw
|
M10x16
|
| 21. |
VOE11307559
|
[1] |
Washer
|
B10,5
|
| 22. |
ZM2803598
|
[1] |
Cable Sleeve
|
|
| 23. |
ZM2803439
|
[2] |
Washer
|
B6,4
|
