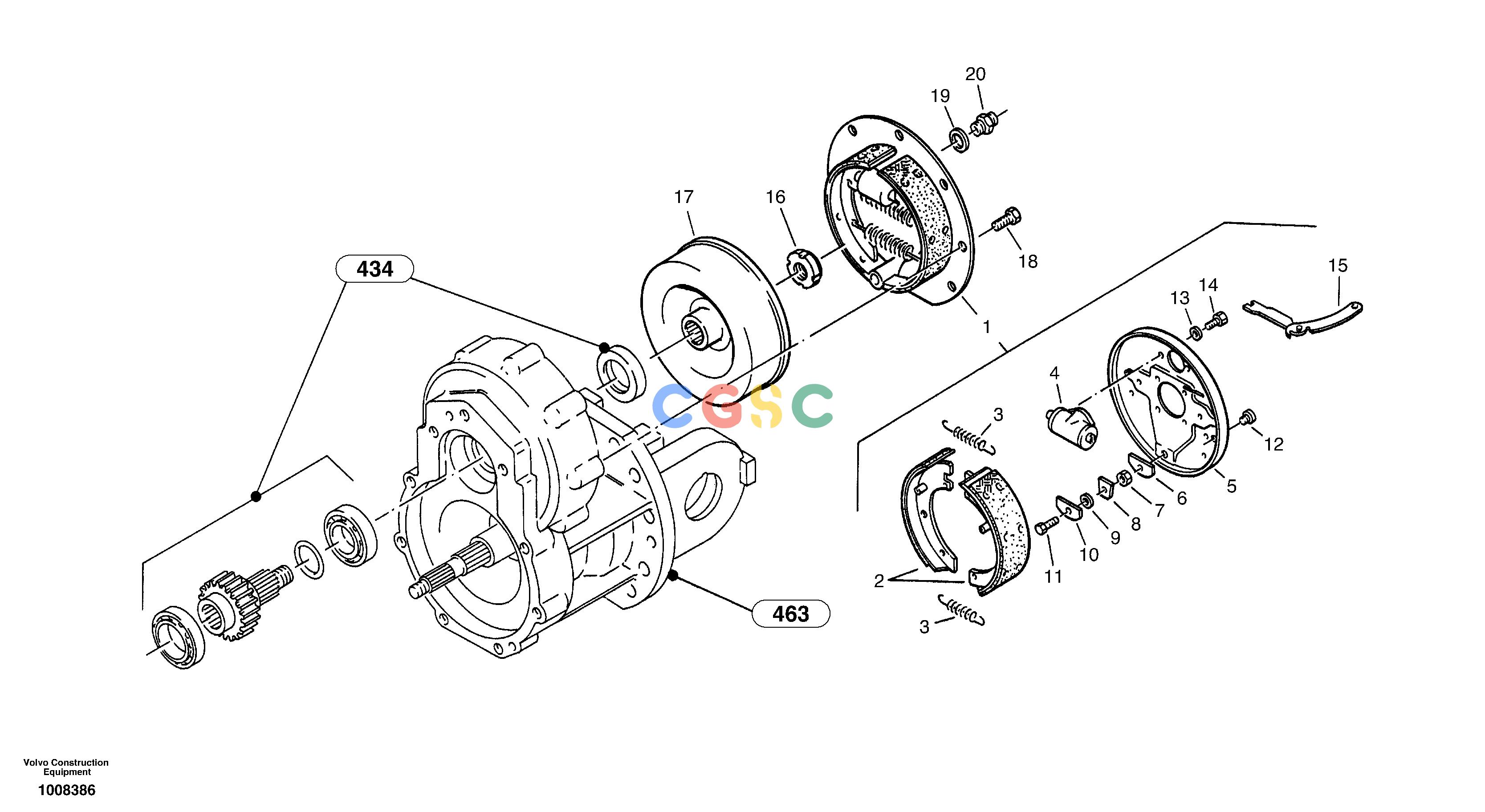

沃尔沃零件查询ZL302C Central brakeSER NO 2404001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
373 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2905095
|
[1] |
Brake
|
|
| 2. |
ZM2905096
|
[1] |
Limit set
|
|
| 3. |
ZM2903781
|
[2] |
Spring
|
|
| 4. |
ZM2903782
|
[1] |
Brake Cylinder
|
|
| 5. |
ZM2903788
|
[1] |
Plate
|
|
| 6. |
ZM2903794
|
[1] |
Locking plate
|
|
| 7. |
ZM2903789
|
[1] |
Nut
|
|
| 8. |
ZM2903790
|
[1] |
Locking plate
|
|
| 9. |
ZM2903791
|
[1] |
Sealing ring
|
|
| 10. |
ZM2903792
|
[1] |
Locking plate
|
|
| 11. |
ZM2903793
|
[1] |
Screw
|
|
| 12. |
ZM2903787
|
[1] |
Plug
|
|
| 13. |
ZM2903784
|
[4] |
Sealing ring
|
|
| 14. |
ZM2903783
|
[4] |
Screw
|
|
| 15. |
ZM2905098
|
[1] |
Lever
|
|
| 16. |
ZM2900767
|
[1] |
Cup Washer
|
|
| 17. |
ZM2900766
|
[1] |
Brake drum
|
|
| 18. |
ZM2900769
|
[7] |
Screw
|
|
| 19. |
ZM2900772
|
[1] |
Sealing ring
|
|
| 20. |
ZM2900773
|
[1] |
Fitting
|
|
