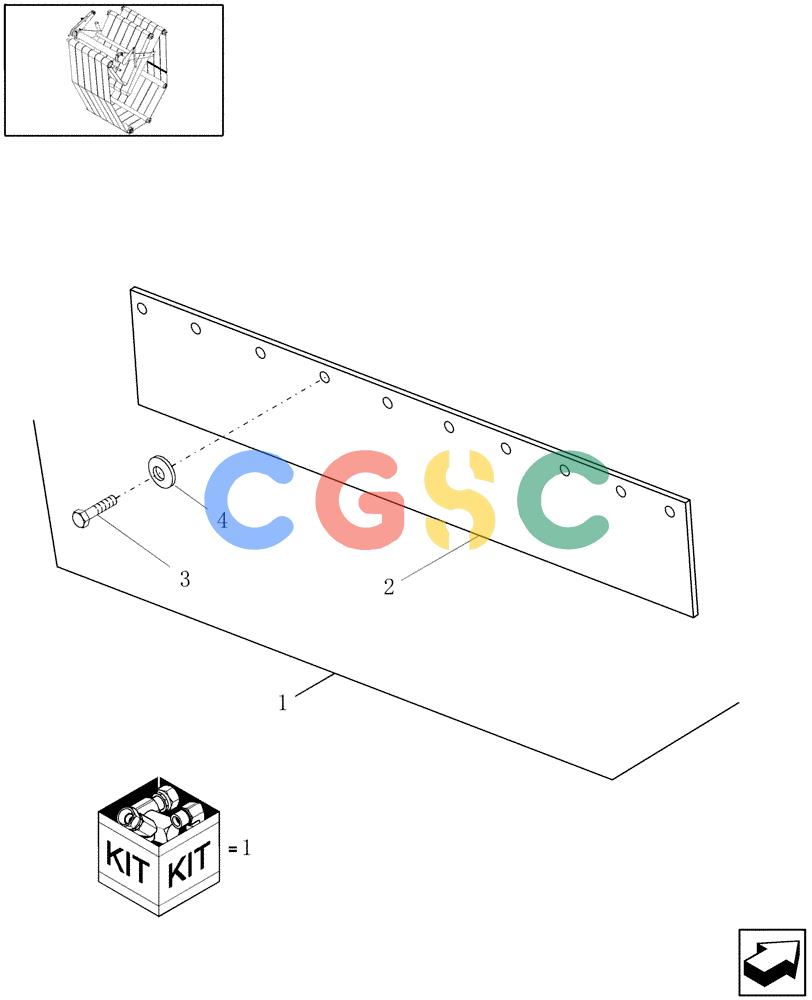

凯斯零件查询(RBX463) - CASE IH ROUND BALER (9/05-12/06) (18.55) - TRASH BAFFLE KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
326 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86643764
|
[1] |
DIA KIT, HARVESTER
|
PA
Trash Baffle, Includes: Installation Instructions Superseded by part number: 87684169, 43128, 86548820, 322
|
| 2. |
86548820
|
[1] |
BELT,178.00 mm W x 1520.00 mm L
|
NH
Trash Baffle
|
| 3. |
614-8030
|
[10] |
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43128
|
| 4. |
322
|
[10] |
WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk
|
NH
|
