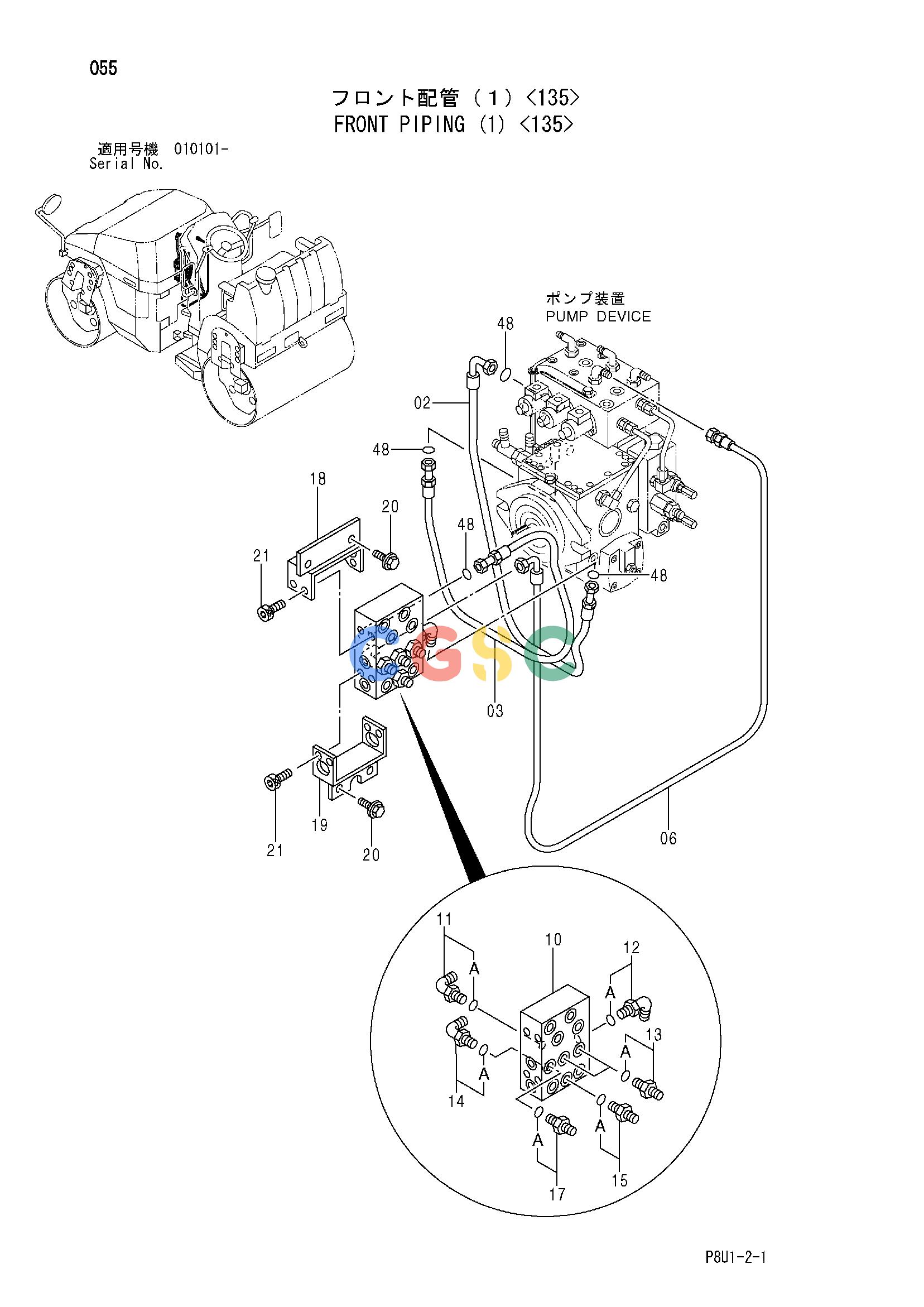

日立零件查询（CC135C）FRONT PIPING (1) <135> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
652 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 425653 | [1] | HOSE | |
| 03. | 425654 | [1] | HOSE | |
| 06. | 425476 | [1] | HOSE | |
| 10. | 426000 | [1] | MANIFOLD | |
| 11. | 425544 | [1] | ELBOW;S | |
| 11A. | 430623 | [1] | O-RING | |
| 12. | 425544 | [1] | ELBOW;S | |
| 12A. | 430623 | [1] | O-RING | |
| 13. | 425543 | [2] | ADAPTER;S | |
| 13A. | 430623 | [1] | O-RING | |
| 14. | 424047 | [1] | ELBOW;S | |
| 14A. | 438402 | [1] | O-RING | |
| 15. | 424075 | [1] | ADAPTER;S | |
| 15A. | 438402 | [1] | O-RING | |
| 17. | 424076 | [1] | ADAPTER;S | |
| 17A. | 947519 | [1] | O-RING | |
| 18. | 425807 | [1] | BRACKET | |
| 19. | 426084 | [1] | BRACKET | |
| 20. | 500048 | [4] | BOLT;SEMS | |
| 21. | 438390 | [8] | BOLT;SOCKET | |
| 48. | 425471 | [4] | O-RING | |
