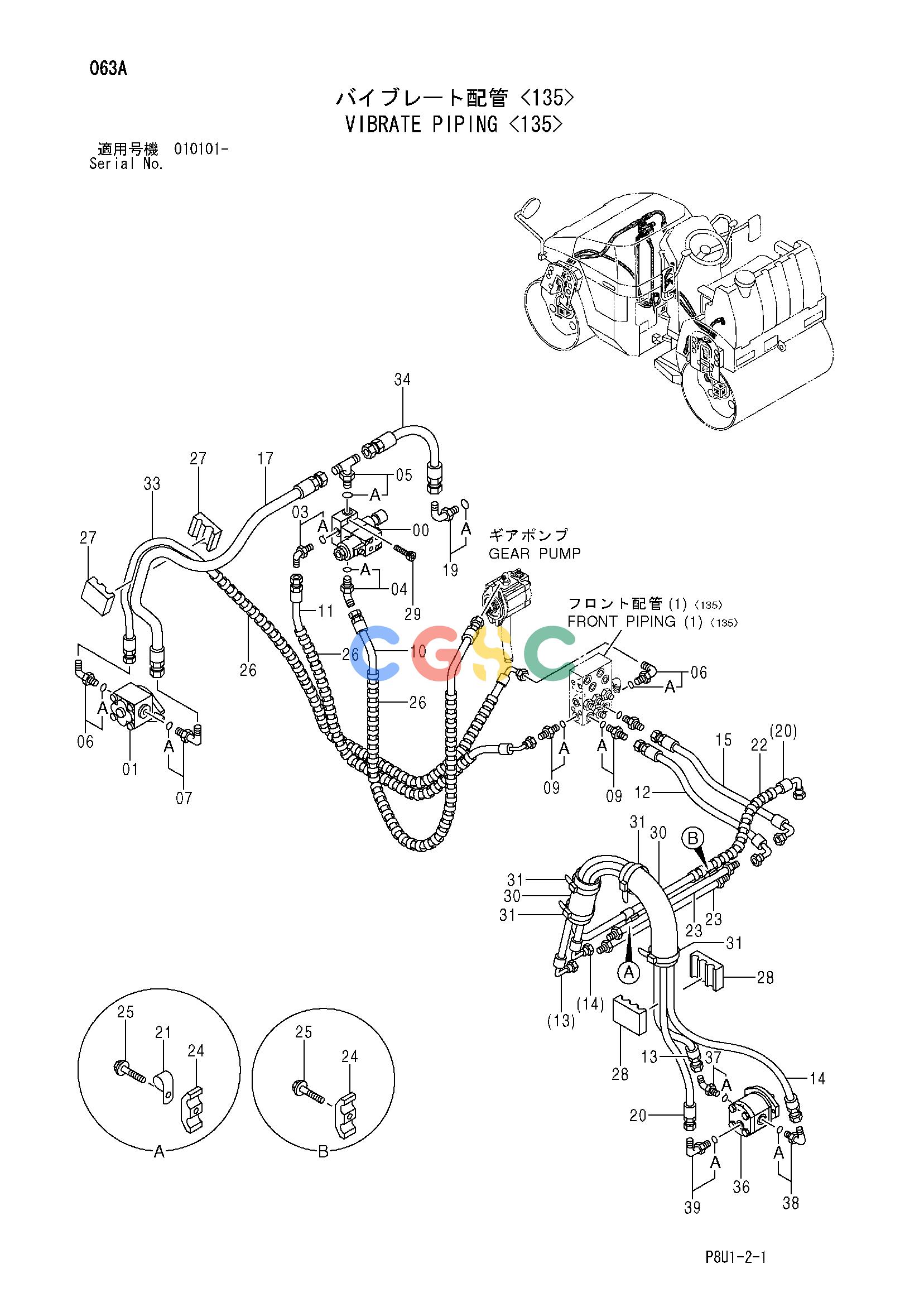

日立零件查询（CC135C）VIBRATE PIPING <135> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
992 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426014 | [1] | VALVE;CONTROL | |
| 01. | 425437 | [1] | PUMP;GEAR | |
| 03. | 424091 | [1] | ELBOW;S | |
| 03A. | 947519 | [1] | O-RING | |
| 04. | 425541 | [1] | ELBOW;S | |
| 04A. | 947519 | [1] | O-RING | |
| 05. | 425478 | [1] | TEE;S | |
| 05A. | 947519 | [1] | O-RING | |
| 06. | 424049 | [2] | ELBOW;S | |
| 06A. | 430623 | [1] | O-RING | |
| 07. | 424055 | [1] | ELBOW;S | |
| 07A. | 947520 | [1] | O-RING | |
| 09. | 424085 | [3] | ADAPTER;S | |
| 09A. | 430623 | [1] | O-RING | |
| 10. | 425836 | [1] | HOSE | |
| 11. | 426103 | [1] | HOSE | |
| 12. | 426102 | [1] | HOSE | |
| 13. | 426101 | [1] | HOSE | |
| 14. | 426100 | [1] | HOSE | |
| 15. | 482600 | [1] | HOSE | |
| 17. | 425895 | [1] | HOSE | |
| 19. | 425475 | [1] | ELBOW;S | |
| 19A. | 430623 | [1] | O-RING | |
| 20. | 426099 | [1] | HOSE | |
| 21. | 424657 | [1] | CLIP | |
| 22. | 439969 | [1] | PROTECTOR | |
| 23. | 426117 | [2] | PIPE | |
| 24. | 425997 | [2] | CLAMP;PIPE | |
| 25. | 500161 | [2] | BOLT;SEMS | |
| 26. | 425524 | [6] | PROTECTOR | |
| 27. | 425687 | [2] | CLAMP | |
| 28. | 426023 | [2] | CLAMP | |
| 29. | 425553 | [2] | BOLT;SOCKET | |
| 30. | 425511 | [2] | SHEET;RUBBER | |
| 31. | 313102 | [4] | CLIP;BAND | |
| 33. | 482400 | [1] | HOSE | |
| 34. | 426107 | [1] | HOSE | |
| 36. | 426052 | [1] | MOTOR;GEAR | |
| 37. | 334558 | [1] | ELBOW;S | |
| 37A. | 160144 | [1] | O-RING | |
| 38. | 334419 | [1] | ELBOW;S | |
| 38A. | 160153 | [1] | O-RING | |
| 39. | 234806 | [1] | ELBOW;S | |
| 39A. | 160150 | [1] | O-RING | |
