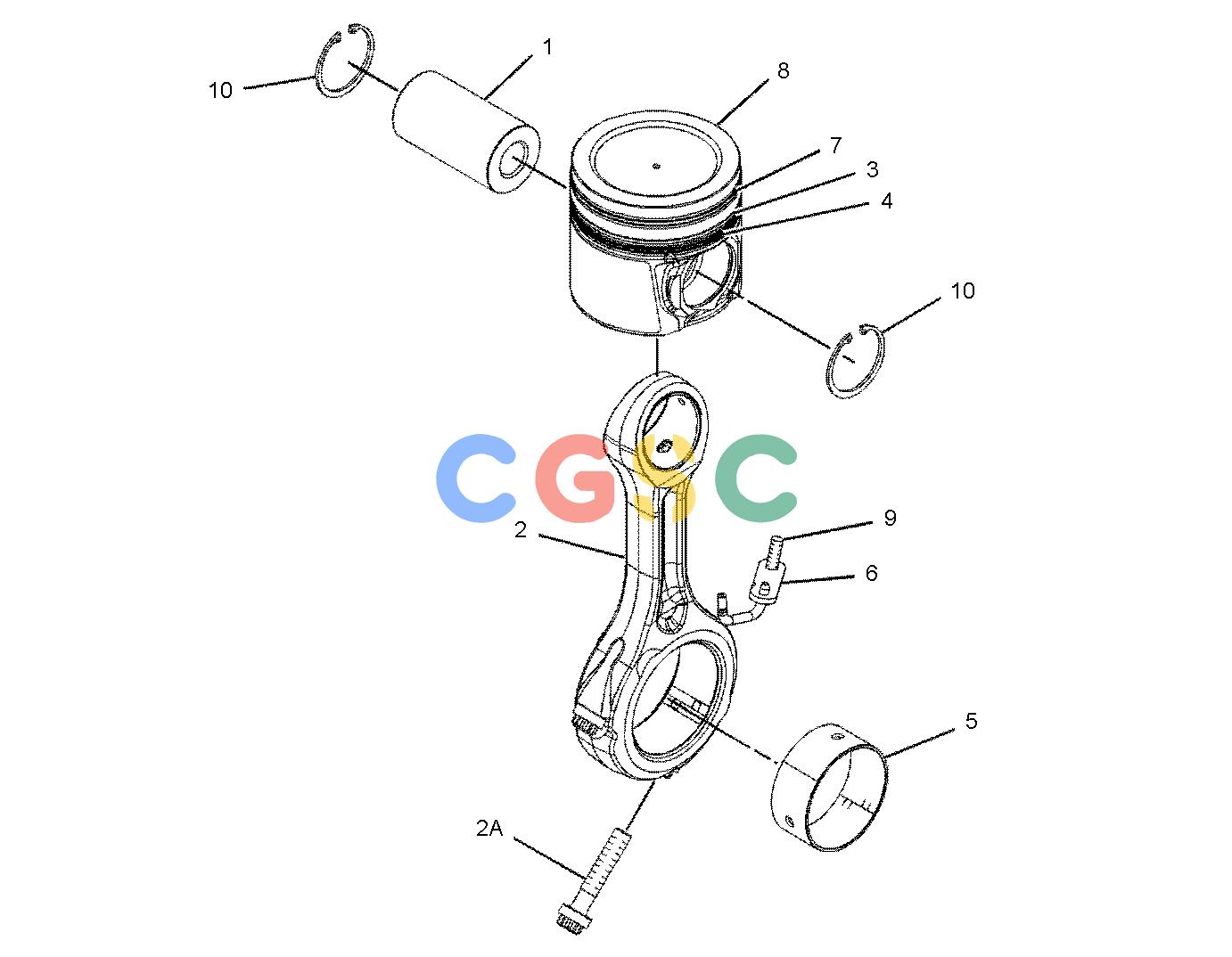

卡特零件查询（725C） 300-4170: PISTON & ROD GP
广数供应链运营团队, 14 02月, 2025，浏览：
297 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 524-5566 | [1] | PIN-PISTON | |
| 2. | 256-9658 | [1] | ROD AS-CONNECTING | |
| 2A. | 160-8197M | [2] | BOLT(M12X1.25X62-MM) | |
| 3. | 471-0275 | [1] | RING-PISTON(INTERMEDIATE) | |
| 4. | 262-2891 | [1] | RING-PISTON(OIL) | |
| 5. | 269-7290 | [1] | BEARING-CONNECTING ROD | |
| | 282-2478AB | [1] | BEARING-CONNECTING ROD(0.25-MM US) | |
| | 282-2479AB | [1] | BEARING-CONNECTING ROD(0.51-MM US) | |
| 6. | 273-2600 | [1] | TUBE AS-OIL JET | |
| 7. | 300-1319 | [1] | RING-PISTON(TOP) | |
| 8. | 396-1539 | [1] | BODY AS-PISTON | |
| 9. | 6V-3940M | [1] | BOLT(M8X1.25X25-MM) | |
| 10. | 6V-5589 | [2] | RING-RETAINING | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
