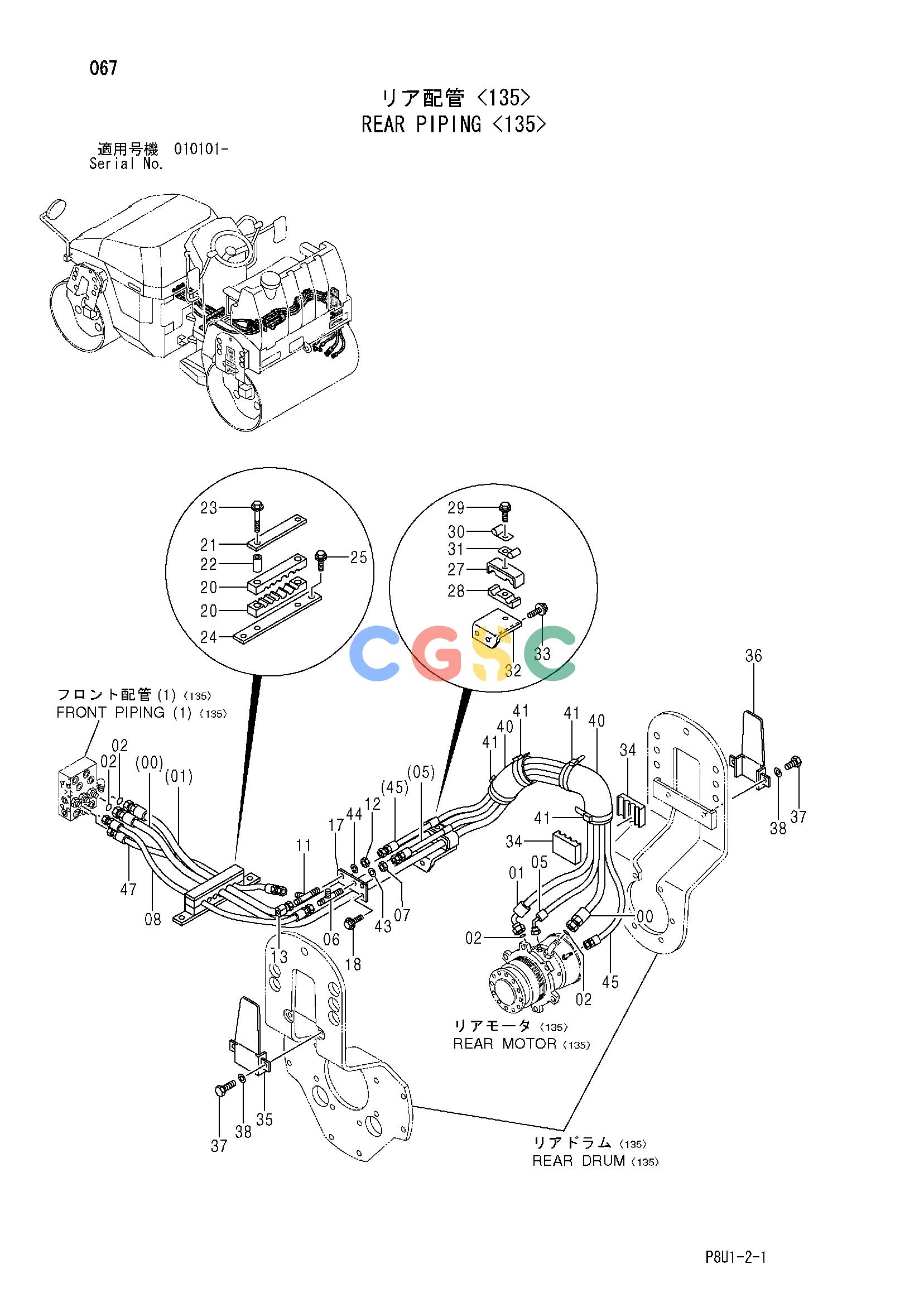

日立零件查询（CC135C）REAR PIPING <135> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
529 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426096 | [1] | HOSE | |
| 01. | 426095 | [1] | HOSE | |
| 02. | 425471 | [4] | O-RING | |
| 05. | 426098 | [1] | HOSE | |
| 06. | 425994 | [1] | TEE;S | |
| 07. | 425993 | [1] | NUT | |
| 08. | 426097 | [1] | HOSE | |
| 11. | 424294 | [1] | TEE | |
| 12. | 424084 | [1] | NUT | |
| 13. | 426039 | [1] | UNION;M | |
| 17. | 426021 | [1] | PLATE | |
| 18. | 500048 | [2] | BOLT;SEMS | |
| 20. | 426022 | [2] | CLAMP | |
| 21. | 425156 | [1] | PLATE | |
| 22. | 425155 | [2] | SPACER | |
| 23. | 500192 | [2] | BOLT;SEMS | |
| 24. | 426118 | [1] | BRACKET | |
| 25. | 500048 | [2] | BOLT;SEMS | |
| 27. | 425996 | [1] | CLAMP;PIPE | |
| 28. | 425995 | [1] | RUBBER | |
| 29. | 500133 | [1] | BOLT;SEMS | |
| 30. | 424066 | [1] | CLIP | |
| 31. | 424657 | [1] | CLIP | |
| 32. | 426020 | [1] | BRACKET | |
| 33. | 500028 | [2] | BOLT;SEMS | |
| 34. | 426024 | [2] | CLAMP | |
| 35. | 426113 | [1] | COVER (L) | |
| 36. | 426114 | [1] | COVER (R) | |
| 37. | 947640 | [4] | BOLT | |
| 38. | 947325 | [4] | WASHER;PLANE | |
| 40. | 425511 | [2] | SEAT;RUBBER | |
| 41. | 313102 | [4] | CLIP;BAND | |
| 43. | 947889 | [1] | WASHER;SPRING | |
| 44. | 947888 | [1] | WASHER;SPRING | |
| 45. | 426089 | [1] | HOSE | |
| 47. | 426090 | [1] | HOSE (68) | |
