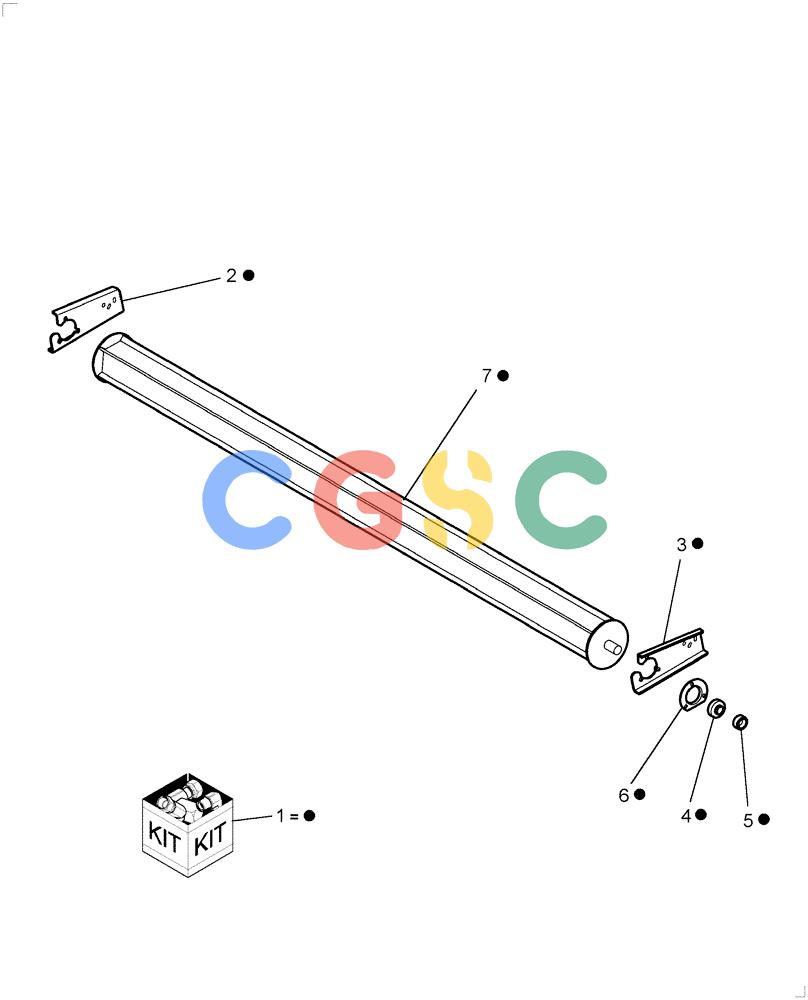

凯斯零件查询(RBX463) - CASE IH ROUND BALER (9/05-12/06) (18.74) - ROTOR WINDGUARD ROLLER KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
293 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87397028
|
[1] |
DIA KIT, HARVESTER
|
PA
Rotor Windguard Roller
|
| 2. |
87039204
|
[1] |
END PLATE
|
PA
RH
|
| 3. |
87039203
|
[1] |
ARM
|
PA
LH
|
| 4. |
574844
|
[2] |
BALL BEARING,25.4mm ID x 52mm OD x 15mm W
|
NH
Superseded by part number: 84330070
|
| 5. |
38260
|
[2] |
COLLAR
|
GI
Locking, Includes: Set Screw Superseded by part number: 87431217
|
| 6. |
86603075
|
[4] |
FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm
|
NH
|
| 7. |
87039723
|
[1] |
ROLLER ASSY.
|
PA
|
| 8. |
80664
|
[4] |
WASHER,0.38" ID x 0.88" OD x 0.08" Thk
|
NH
|
| 9. |
9706690
|
[6] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 10. |
322358
|
[12] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 11. |
120104
|
[12] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
